Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

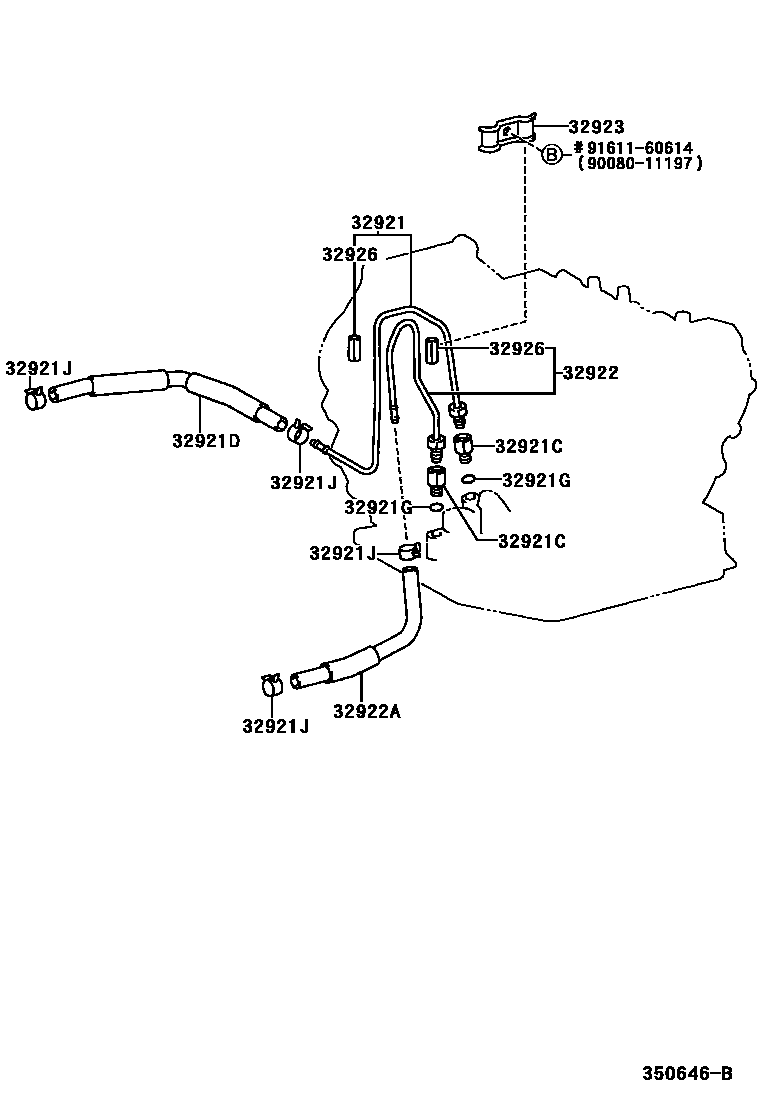

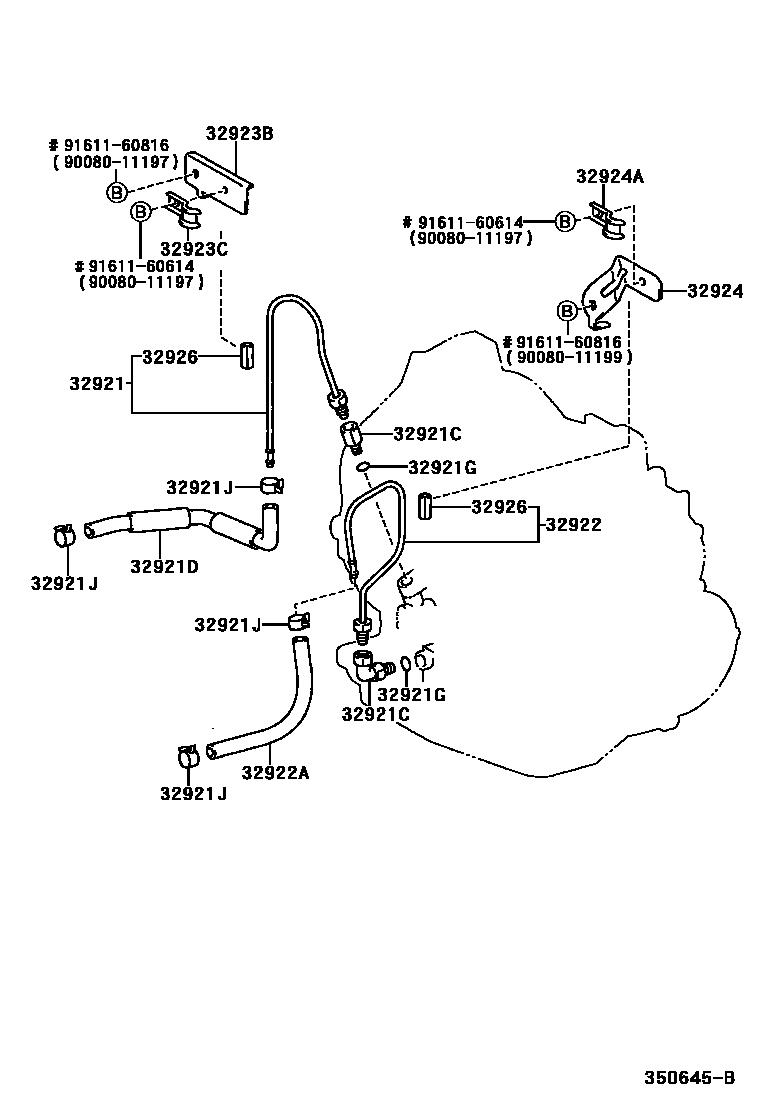

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-02110 · 32921-02120 · 32921-02130 · 32921-02140 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-12030 · 90404-14019 · 90407-14003 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-02040 · 32941-02070 · 32941-02100 · 32941-02110 · 32941-02140 · 32941-12290 · 32941-12300 · 32941-12320 · 32941-12330 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90080-46071 · 90467-13039 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-01031 · 32922-02060 · 32922-02070 · 32922-02090 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32942-02020 · 32942-02040 · 32942-02060 · 32942-22101 · 90080-44101 · 90445-15073 |
| 32923 | Automatic transmission oil cooler pipe clamp | 90462-10127 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-02060 |
| 32923C | No. 4 automatic transmission oil cooler pipe clamp | 90462-10082 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-02020 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-10082 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-02010 · 32926-10010 |
