Toyota COROLLA 中央支架和行星太阳齿轮(ATM) — Figure 3508

Toyota COROLLA EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 15 PNC and OE references.

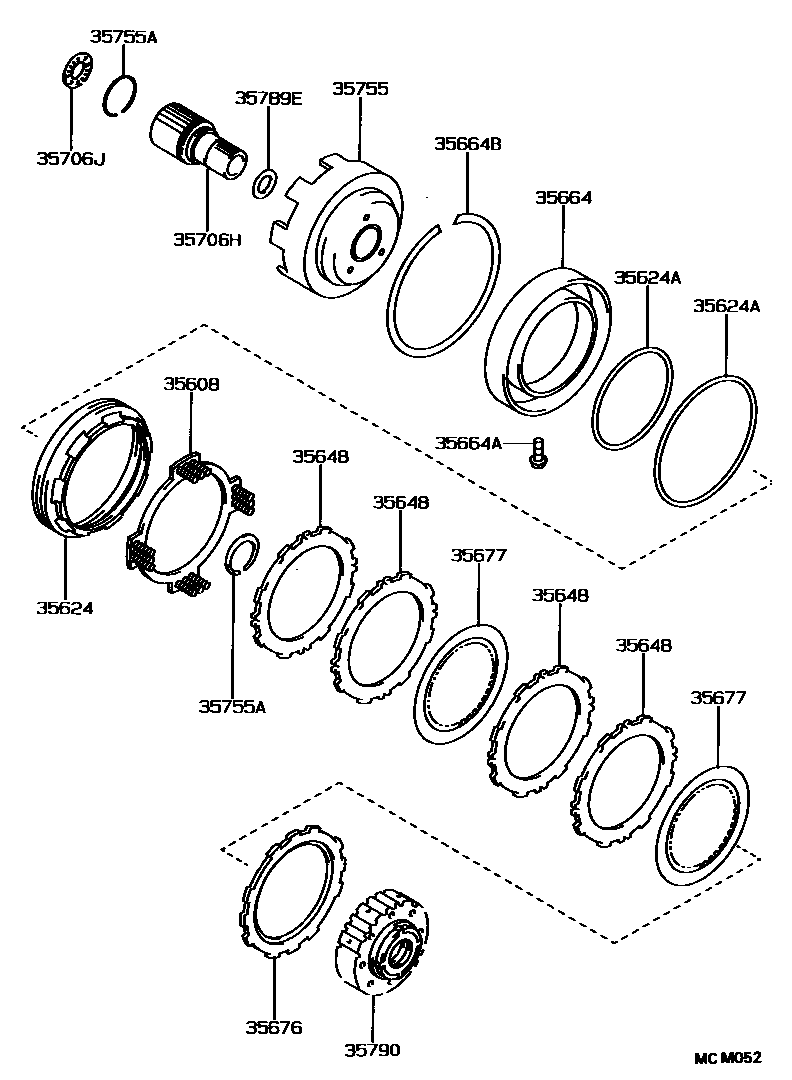

Toyota COROLLA 中央支架和行星太阳齿轮(ATM) EPC diagram — MCM052
中央支架和行星太阳齿轮(ATM) — MCM052 (199708 – 999999)

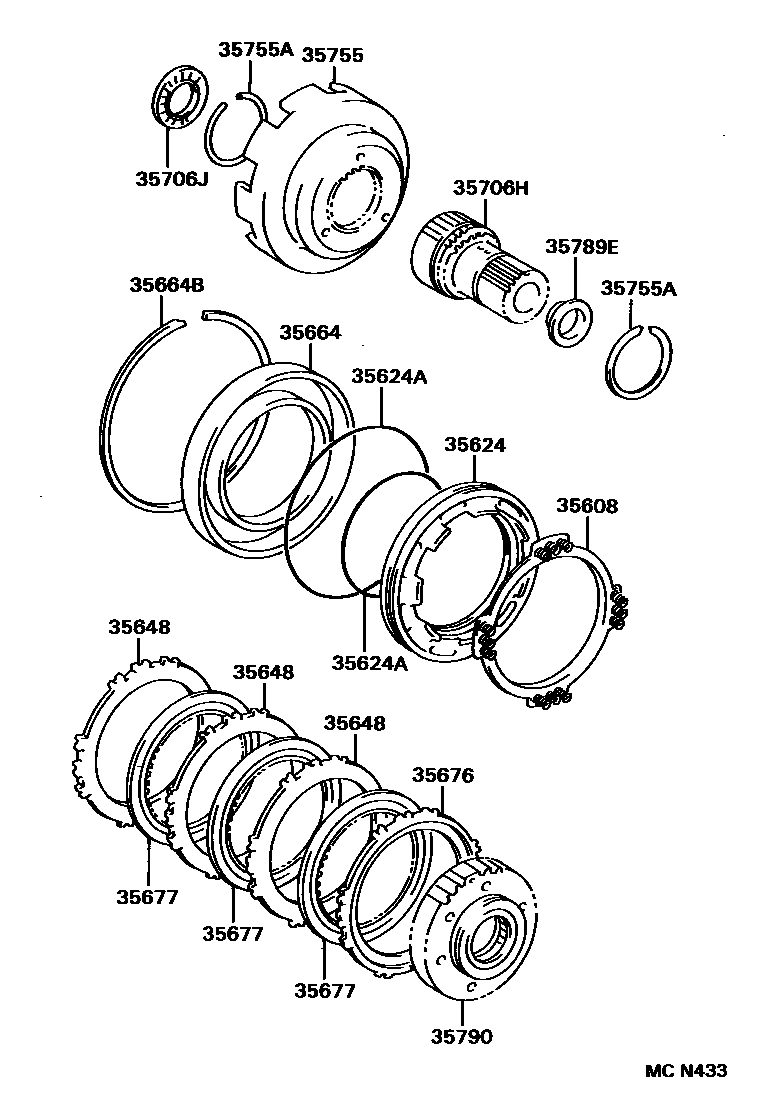

Toyota COROLLA 中央支架和行星太阳齿轮(ATM) EPC diagram — MCN433
中央支架和行星太阳齿轮(ATM) — MCN433 (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
35608Second gear brake piston return spring sub-assembly35608-32010
35624Second gear brake piston35624-32010
35624AO-ring (for second gear brake piston)90301-99021 · 90301-99023 · 90301-99100 · 90301-99132
35648Clutch disc (for second gear brake)35648-12010 · 35648-32010
35664Second gear brake cylinder35664-32010
35664ABolt (for second gear brake cylinder)90109-06060
35664BHole snap ring (for second gear brake cylinder)90520-99013 · 90521-99013
35676Brake flange (for second gear brake)35676-12030 · 35676-32010
35677Clutch disc (for second gear brake)35677-12070 · 35677-30040 · 35677-32031
35706HPlanetary gear train sun gear sub-assembly35706-12010
35706JThrust needle roller bearing (for planetary gear train sun gear)90374-28011 · 90374-30006
35755sun gear input drum35755-32020
35755AShaft snap ring (for sun gear input drum)90520-44002 · 90520-46010 · 90520-47003
35789EThrust bearing race (for planetary gear train sun gear)35789-22010
35790One-way clutch assembly35790-32050 · 35790-44010
