Toyota COROLLA Shift Lever & Retainer — Figure 3312

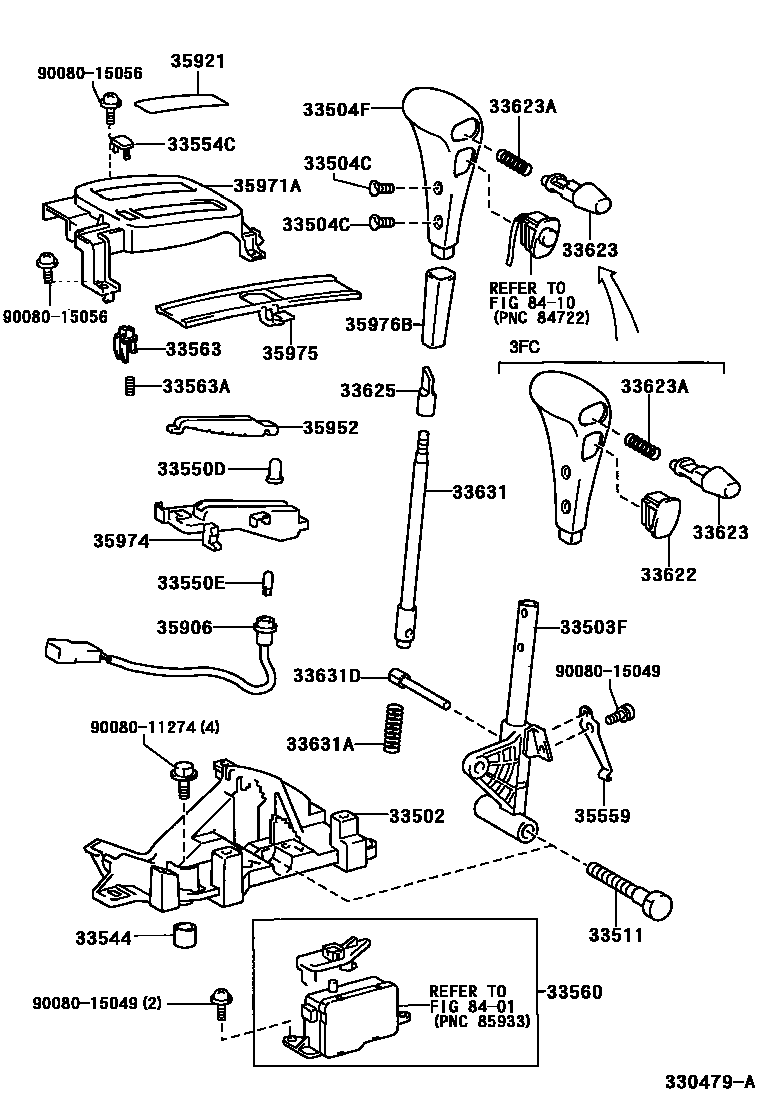

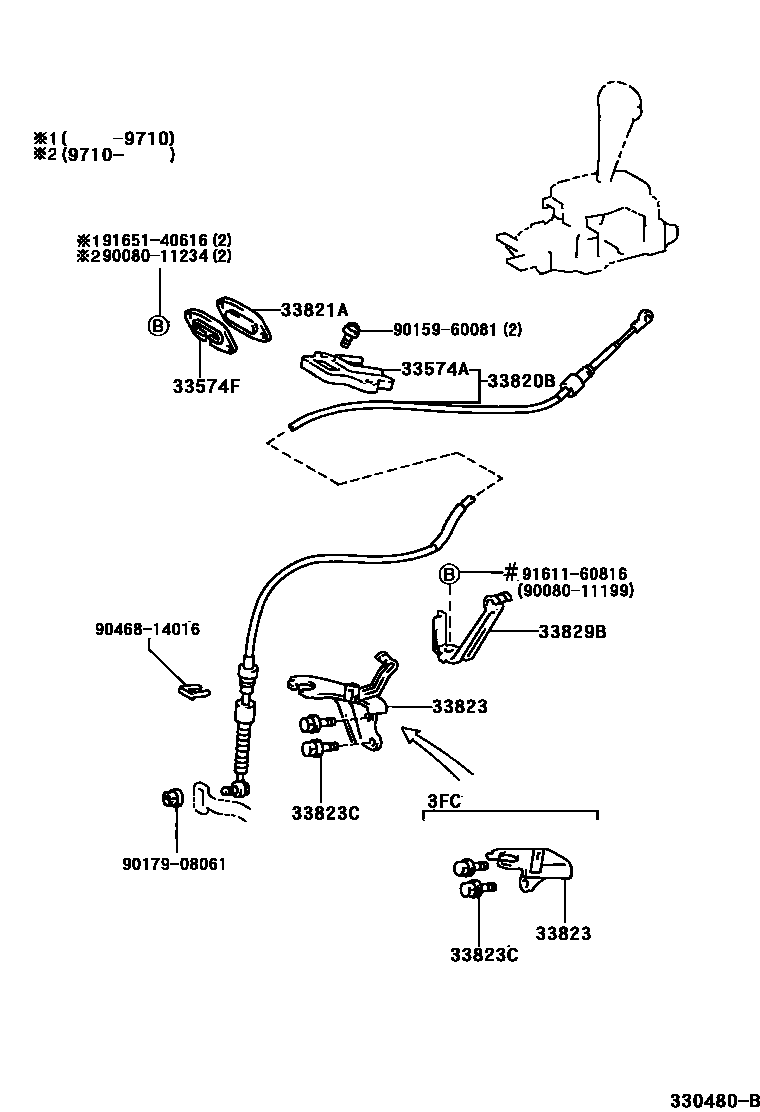

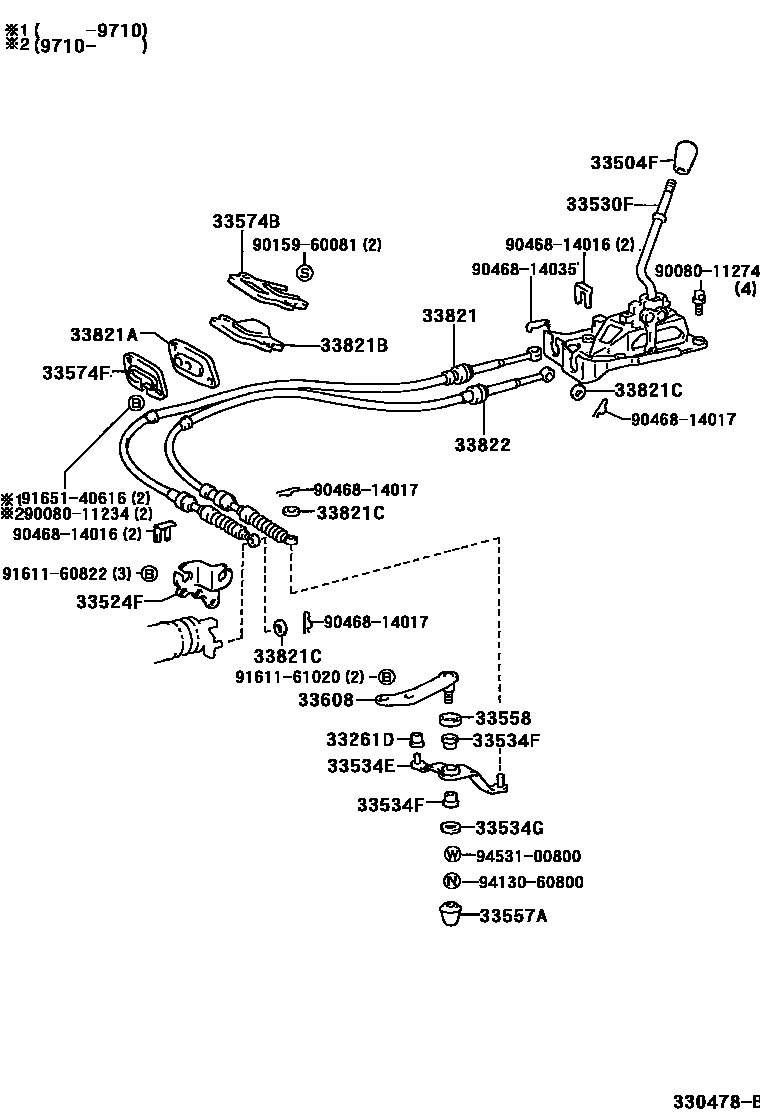

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33502 | Shift lever base plate sub-assembly | 33521-02020 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-02020 |
| 33504C | Screw (for securing shift lever knob) | 90080-15048 |
| 33511 | Control shaft (for floor shifting) | 33511-12120 |
| 33524F | Lever housing bracket (for floor shift) | 33524-12011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02020 |
| 33534E | No. 2 gear selection right-angle lever | 33534-16051 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-06010 |
| 33550D | position indicator light bulb | 90080-81064 · 90981-11040 |
| 33550E | position indicator cover | 90339-04062 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-02010 |
| 33563 | Shift lock release button | 33563-02020 |
| 33563A | Compression spring (for shift lock release button) | 90080-50088 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12040 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-01030 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-16021 |
| 33623A | Compression spring (for shift lever knob button) | 90080-50197 |
| 33625 | Shift lever handle sleeve | 33625-02040 |
| 33631 | Locking lever | 33631-33020 |
| 33631A | Compression spring (for locking lever) | 90080-50192 |
| 33631D | Grooved pin (for locking lever) | 90256-04008 |
| 33820B | Transmission control cable assembly | 33820-02120 · 33820-02121 · 33820-02130 · 33820-02131 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-02110 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90080-48046 · 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90080-48015 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-02030 |
| 33823 | No. 1 transmission control cable bracket | 33823-02020 · 33823-02040 |
| 33823C | Bolt (for transmission control cable bracket) | 90080-11199 · 91611-60816 · 91612-61022 |
| 33829B | Transmission control cable clip | 33829-02010 · 33829-12010 |
| 35559 | Manual locking spring | 35559-12040 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02030 |
| 35921 | control position indicator board | 35921-12420 |
| 35952 | Position indicator lampshade | 35952-02010 |
| 35974 | Position indicator light lower shell | 35974-02020 |
