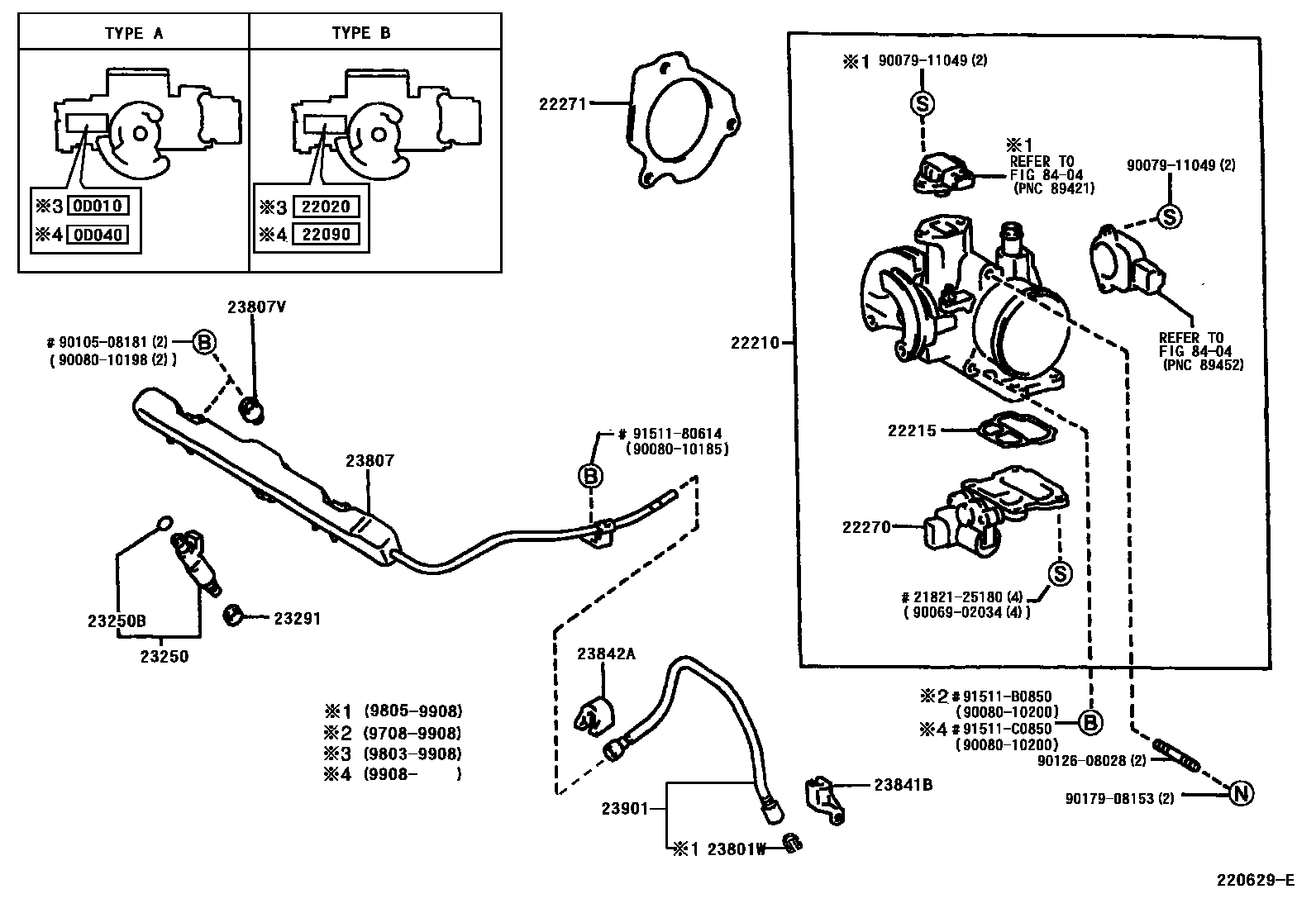

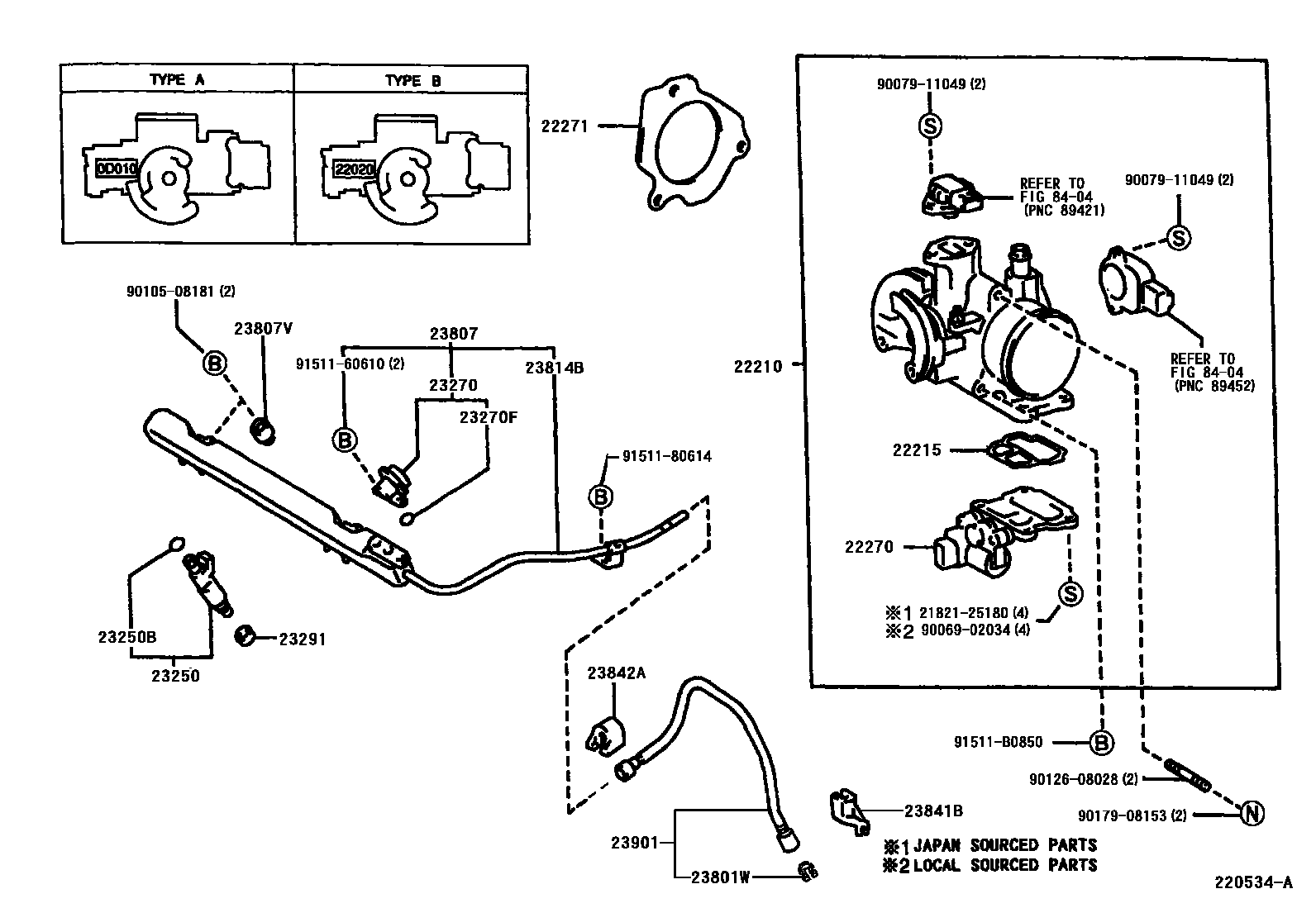

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-0D010 · 22210-0D040 · 22210-22020 · 22210-22090 |
| 22215 | Throttle body cover gasket | 22215-03010 · 22215-74400 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-0D010 · 22270-22010 |
| 22271 | Throttle body gasket | 22271-0D010 · 22271-0D020 · 22271-22010 · 22271-22060 |
| 23217A | fuel pump filter | 23217-03030 |
| 23220P | fuel pump assembly | 23221-0D010 |
| 23229 | Clip (for fuel pump filter) | 23219-03010 |
| 23249 | Rubber gasket (for fuel pump) | 23218-0C010 |
| 23250 | Fuel injector assembly | 23209-0D010 · 23209-0D040 · 23209-22010 · 23209-22040 |
| 23250B | O-ring (for fuel injector) | 90301-07024 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-11010 |
| 23270F | O-ring (for pulsation damper) | 90301-07001 |
| 23280 | Fuel pressure regulator assembly | 23280-22010 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23291 | Injector vibration isolation pad | 23291-22020 · 23291-73010 |
| 23300Z | Fuel filter (for fuel tank) | 23300-0D010 |
| 23801W | Fuel pipe connector clip | 90923-07004 |
| 23807 | Oil pipe sub-assembly | 23807-22010 · 23807-22020 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08055 |
| 23814B | oil pipeline | 23814-22010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-22030 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23901 | Fuel pipe sub-assembly | 23901-0D020 · 23901-22010 |
