Toyota COROLLA 起动机 — Figure 1904

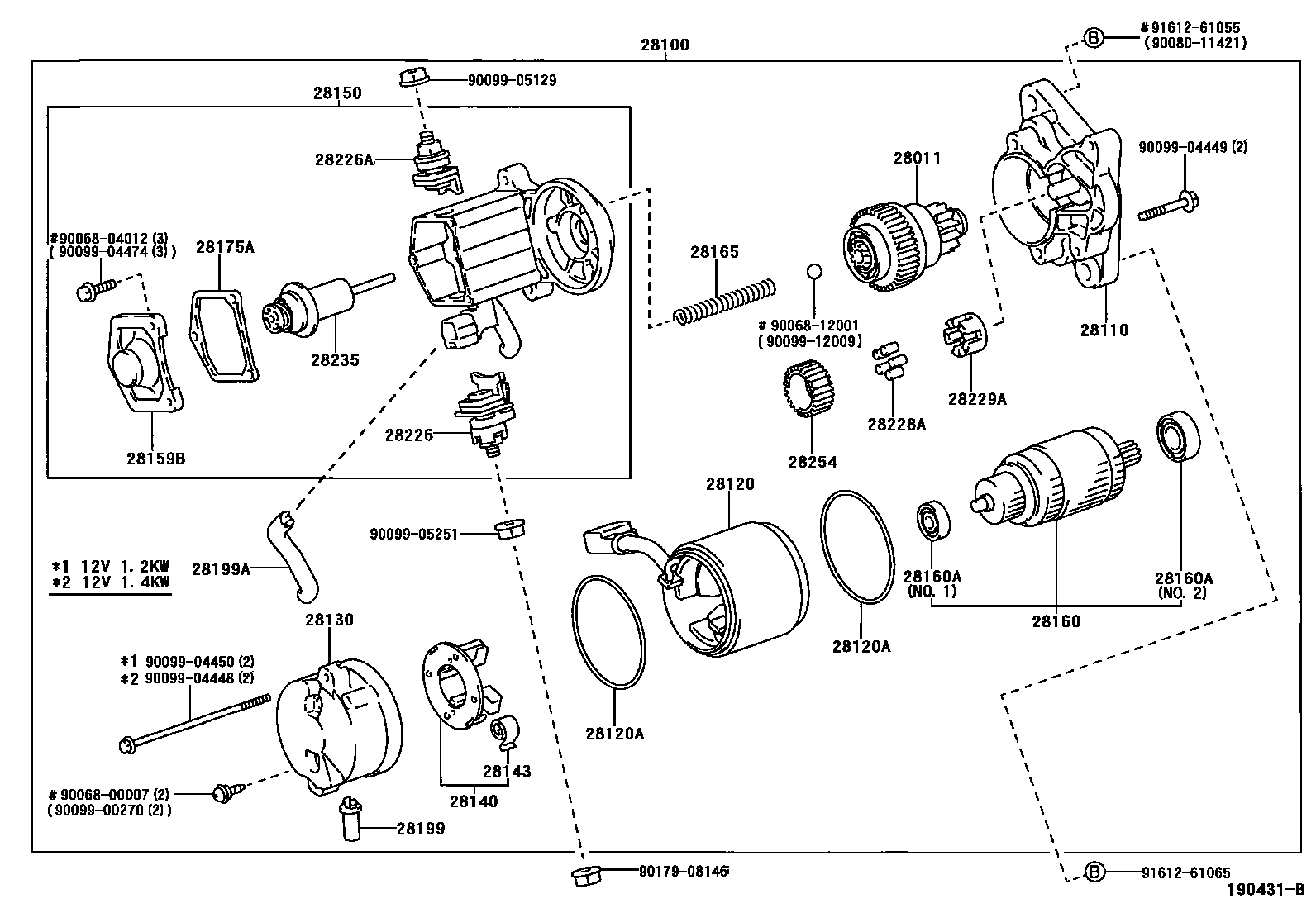

Toyota COROLLA EPC diagram 1904, 起动机, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-01020 |
| 28100 | Starter assembly | 28100-0D010 · 28100-0D020 |
| 28110 | Starter drive end housing assembly | 28110-0D010 |
| 28120 | Starter yoke assembly | 28120-01030 · 28120-0W030 |
| 28120A | O-ring (for starter yoke) | 90068-14001 |
| 28130 | Starter commutator end frame assembly | 28130-0C010 · 28130-0W060 |
| 28140 | Starter brush holder assembly | 28140-01020 · 28140-0D010 |
| 28143 | starter brush spring | 28143-76060 · 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-0D010 |
| 28159B | Electromagnetic switch cover | 28159-07010 |
| 28160 | Starter armature assembly | 28160-01020 · 28160-0W020 |
| 28160A | starter armature bearing | 90068-10003 · 90068-10004 |
| 28165 | Starter solenoid switch return spring | 28165-01020 |
| 28175A | Electromagnetic switch cover gasket | 28175-55050 |
| 28199 | starter cover | 28199-74110 |
| 28199A | Starter dust protection device | 28199-22010 |
| 28226 | battery terminal starter assembly | 28226-22050 · 28226-64200 |
| 28226A | Motor terminal starter assembly | 28226-74070 |
| 28228A | starter clutch roller | 28228-26040 |
| 28229A | Starter idler gear fixing | 28229-01020 |
| 28235 | Electromagnetic switch core | 28235-07010 |
| 28254 | Starter idler pinion | 28254-03010 |
