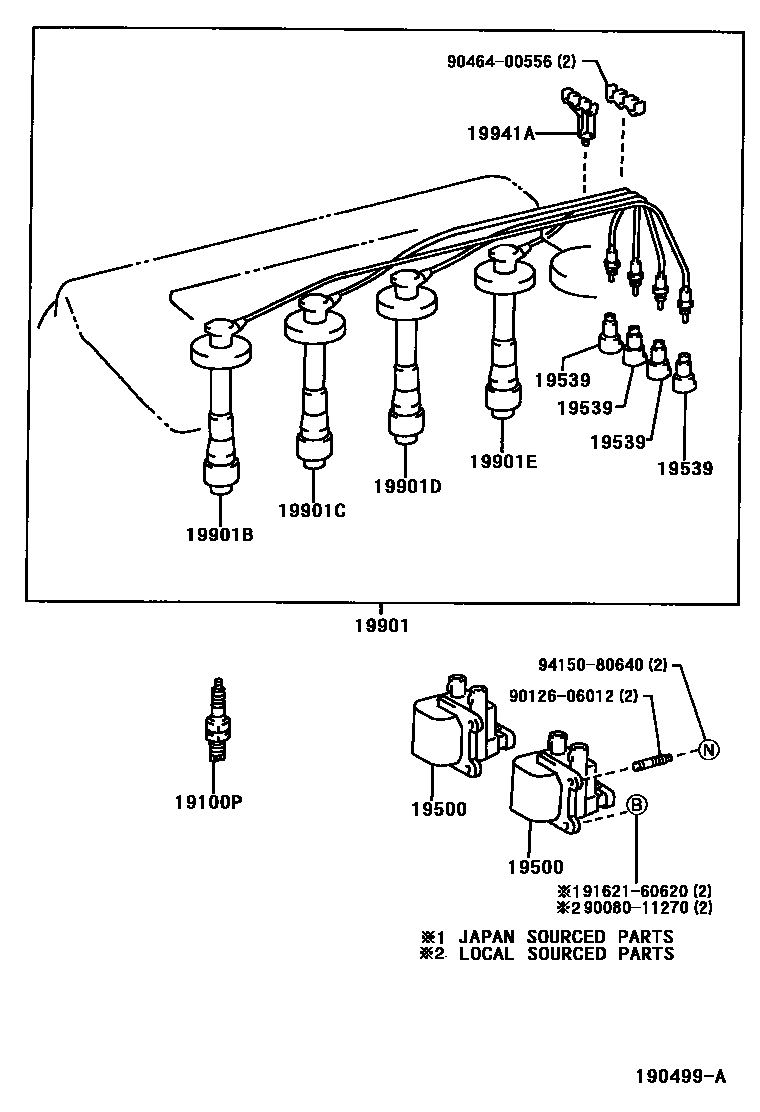

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90080-91145 · 90080-91184 · 90919-01192 · 90919-01217 · 90919-01218 |
| 19500 | Ignition coil assembly | 90080-19015 · 90919-02224 · 90919-02239 |
| 19539 | No. 4 damping wire fixing piece | 19539-74050 |
| 19901 | Coil and spark plug assembly with damper wire | 90080-91140 · 90919-22393 |
| 19901B | No. 1 spark plug damper wire | 90080-91141 · 90919-15502 |
| 19901C | No. 2 spark plug damper wire | 90080-91142 · 90919-15503 |
| 19901D | No. 3 spark plug damper wire | 90080-91143 · 90919-15504 |
| 19901E | No. 4 spark plug damper wire | 90080-91144 · 90919-15505 |
| 19941A | Clamp (for damping wire) | 90929-01389 |
