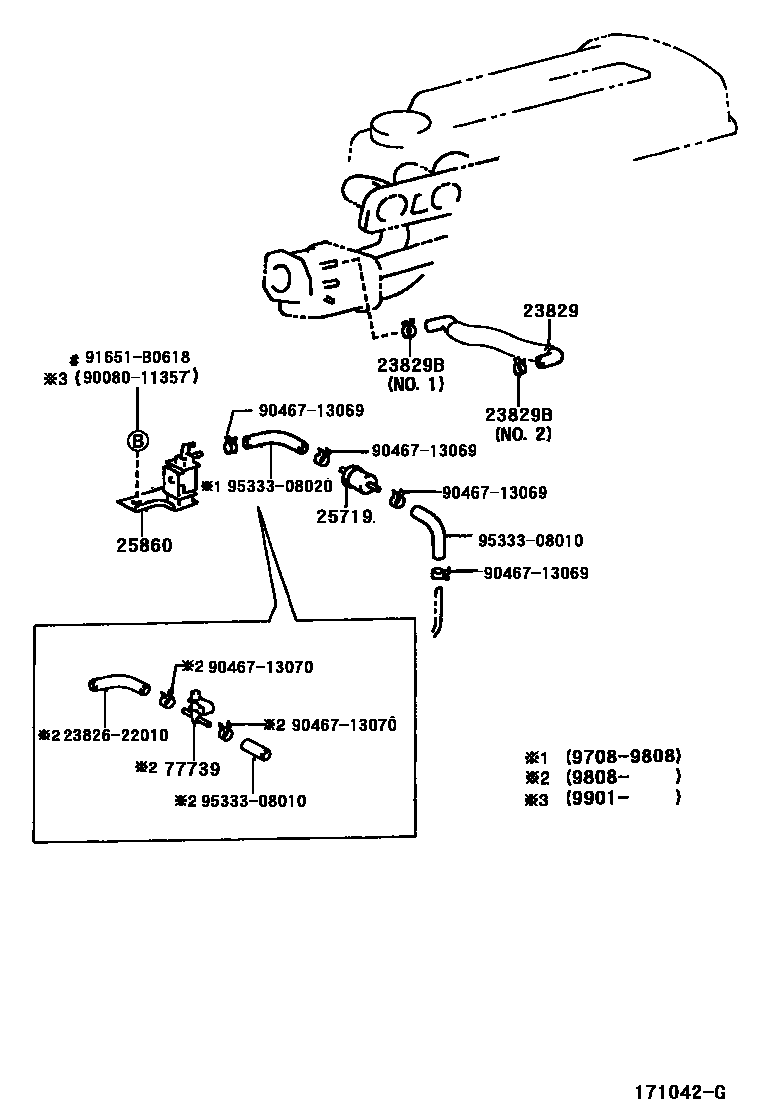

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23829 | No. 3 fuel vapor supply hose | 23829-0D010 · 23829-22010 |
| 23829B | Clamp (for fuel vapor supply hose) | 90467-13069 · 90467-14043 |
| 25719 | Vacuum pressure tank | 25719-74020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0D010 · 25860-22020 |
| 77739 | Steam service valve | 77739-06010 |
