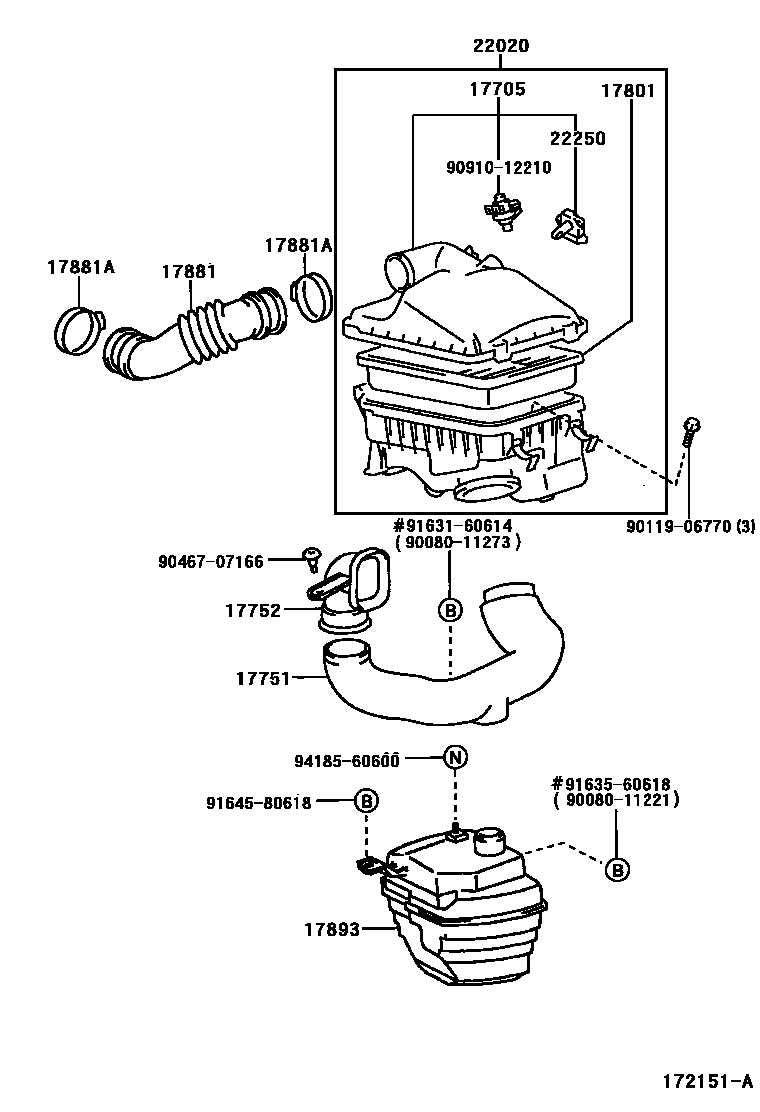

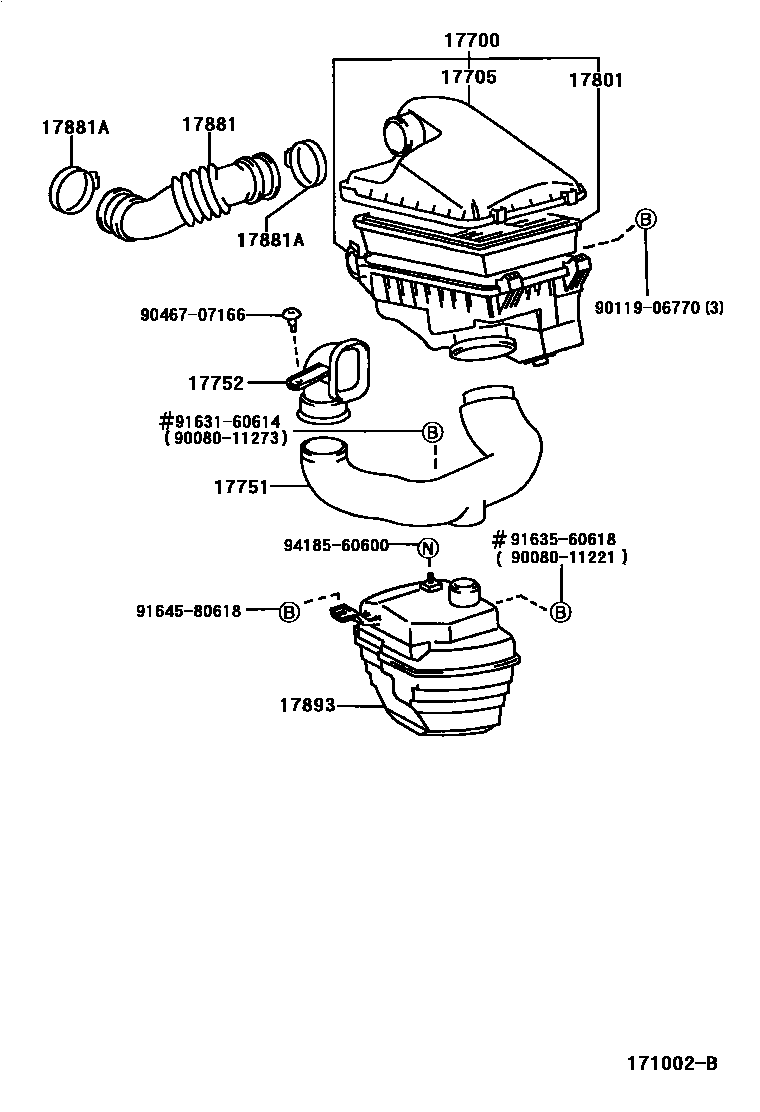

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-0D010 |
| 17705 | Air filter cover sub-assembly | 17705-0D010 · 17705-0D020 |
| 17751 | No. 1 air filter air inlet | 17751-0D010 |
| 17752 | No. 2 air filter air inlet | 17752-0D010 |
| 17801 | Air filter element sub-assembly | 17801-02030 |
| 17881 | No. 1 air cleaner hose | 17881-0D010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73001 |
| 17893 | Intake resonator | 17893-0D010 |
| 22020 | Air flow meter assembly with air filter | 22020-0D010 |
| 22250 | Intake air flow meter assembly | 22204-0D010 |
