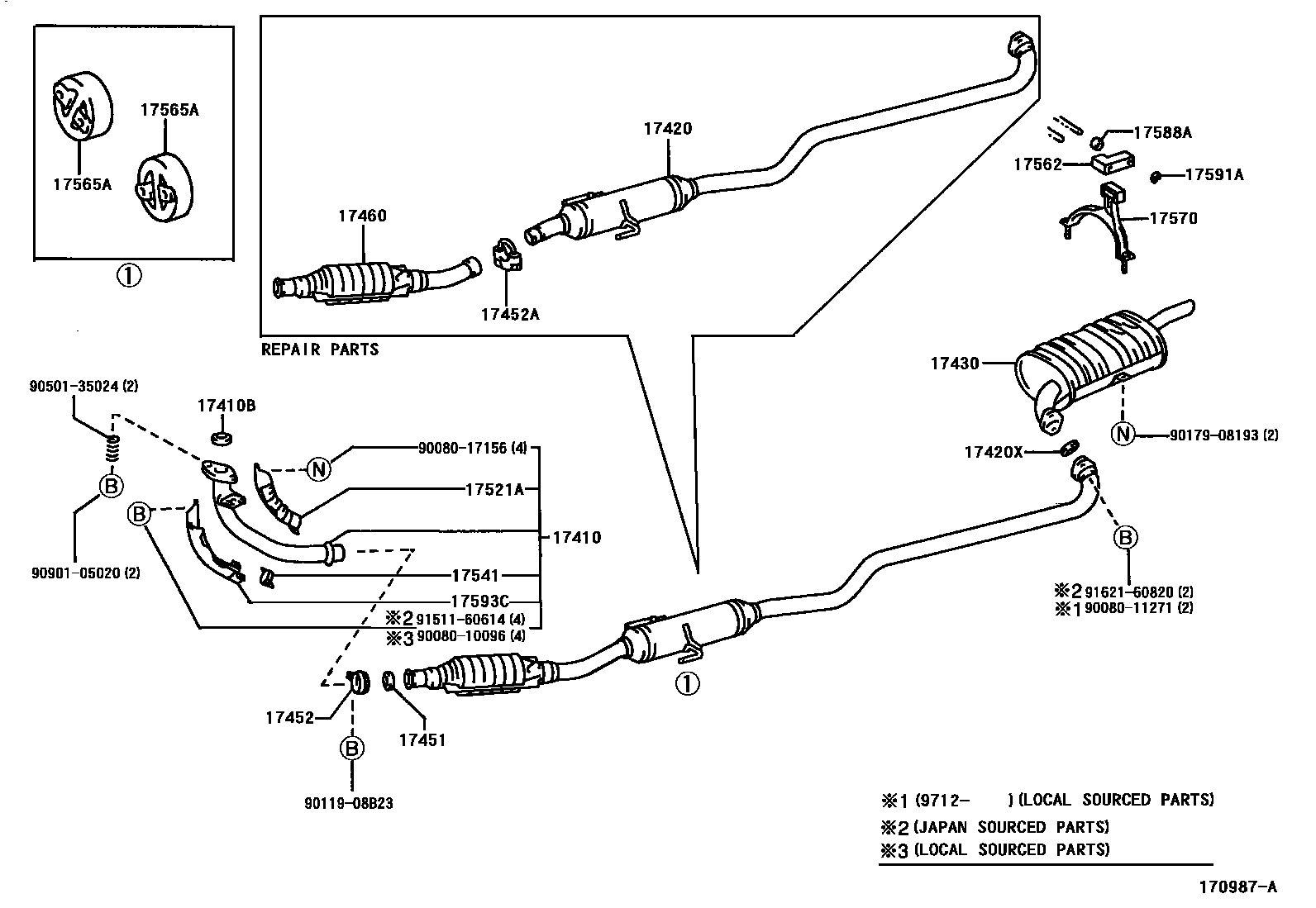

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0D010 |
| 17410B | Exhaust pipe gasket | 17451-22080 |
| 17420 | Central exhaust pipe assembly | 17420-0D050 |
| 17420X | Center exhaust pipe liner | 90080-43028 |
| 17430 | Exhaust tailpipe assembly | 17430-0D010 · 17430-0D050 |
| 17451 | Exhaust pipe gasket | 90917-06084 |
| 17452 | Exhaust pipe clamp | 90080-46225 |
| 17452A | Exhaust pipe clamp | 17452-16160 |
| 17460 | Three-way catalytic converter assembly with tube | 17460-0D030 · 17460-0D040 · 17460-0D070 |
| 17521A | No. 1 upper exhaust pipe protection device | 17521-0D010 |
| 17541 | No. 1 exhaust pipe protection device stay | 17541-0D020 |
| 17562 | No. 2 exhaust pipe lifting lug | 17562-0D010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D010 |
| 17570 | Exhaust pipe bracket assembly | 17570-16040 |
| 17588A | Exhaust pipe hanger spacer | 17588-16020 |
| 17591A | Exhaust pipe bracket block | 17591-16020 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-0D010 |
