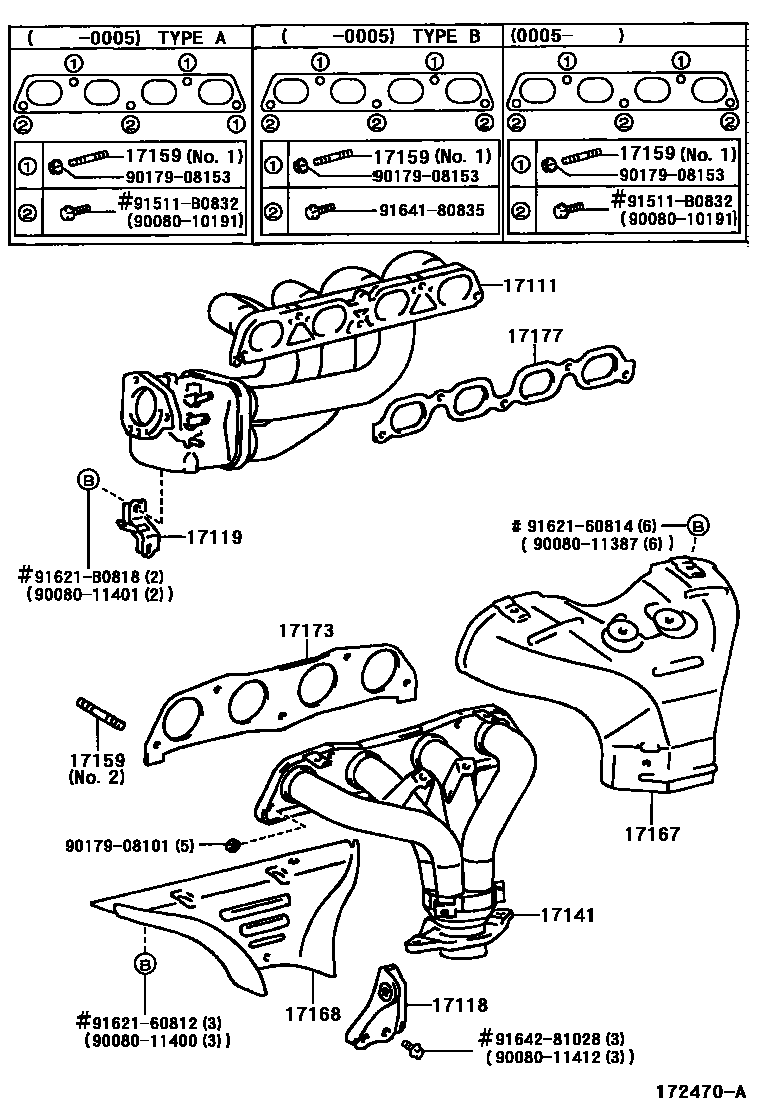

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-22010 |
| 17118 | Manifold stays | 17118-0D010 · 17118-22020 |
| 17119 | No. 2 manifold stay | 17139-0D010 · 17139-0D011 · 17139-22020 · 17139-22022 |
| 17141 | exhaust manifold | 17104-0D020 · 17104-22010 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08037 · 90126-08043 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-22010 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-22010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-22010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0D010 · 17171-22020 |
