Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

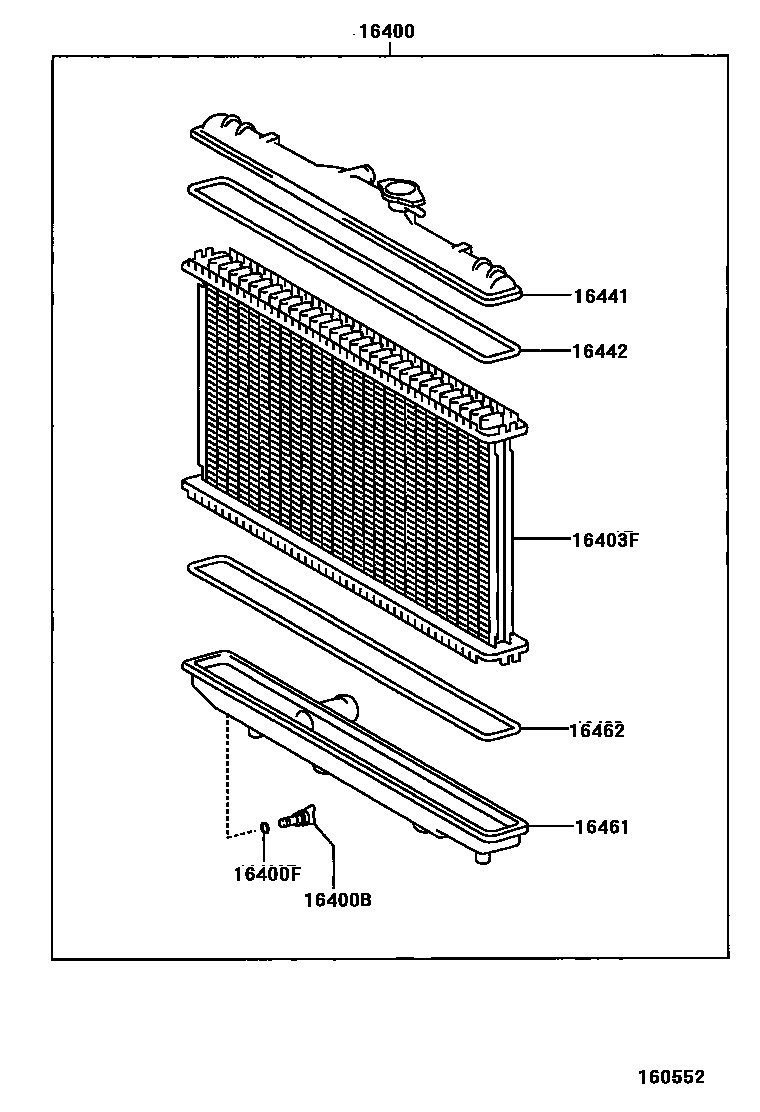

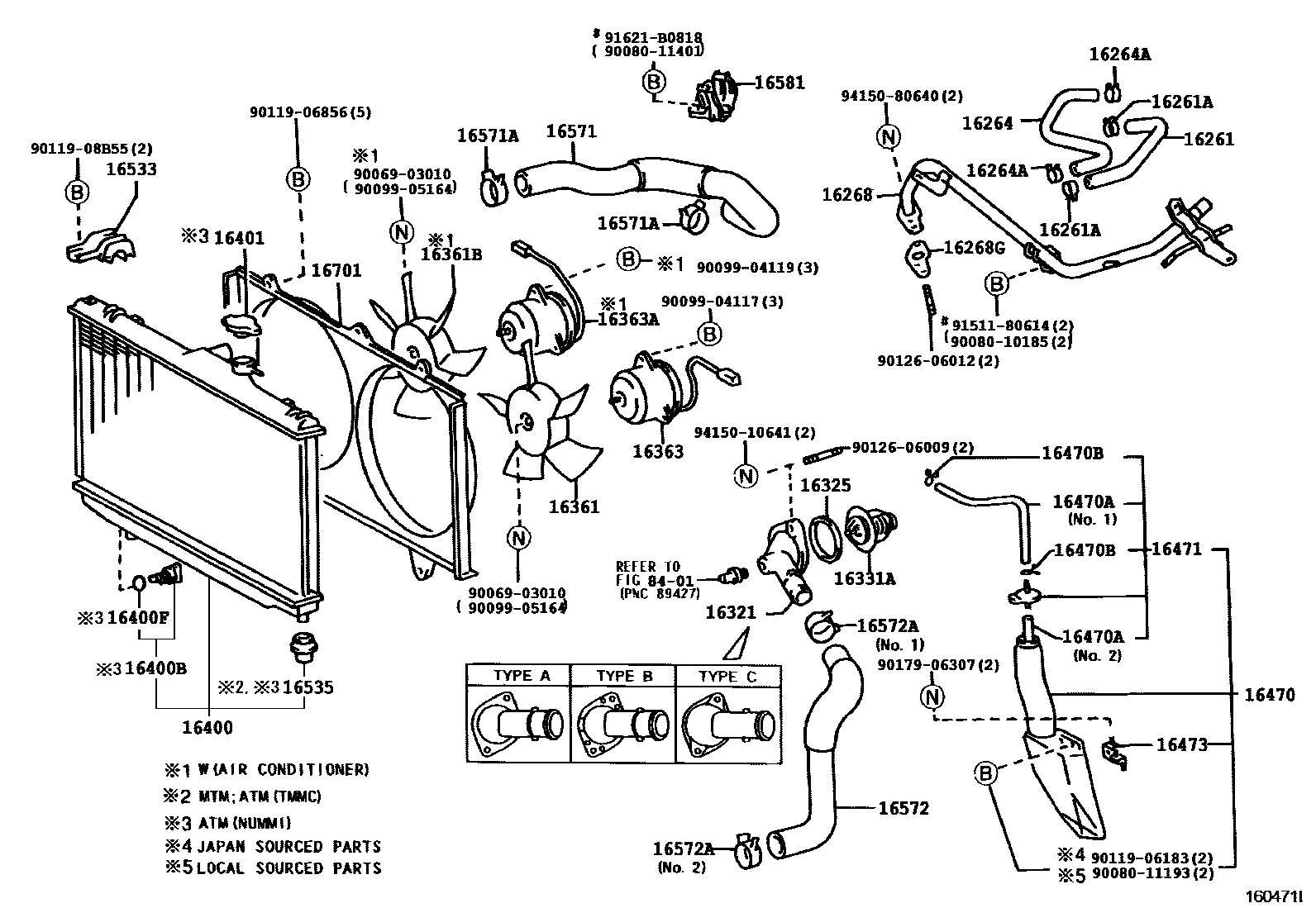

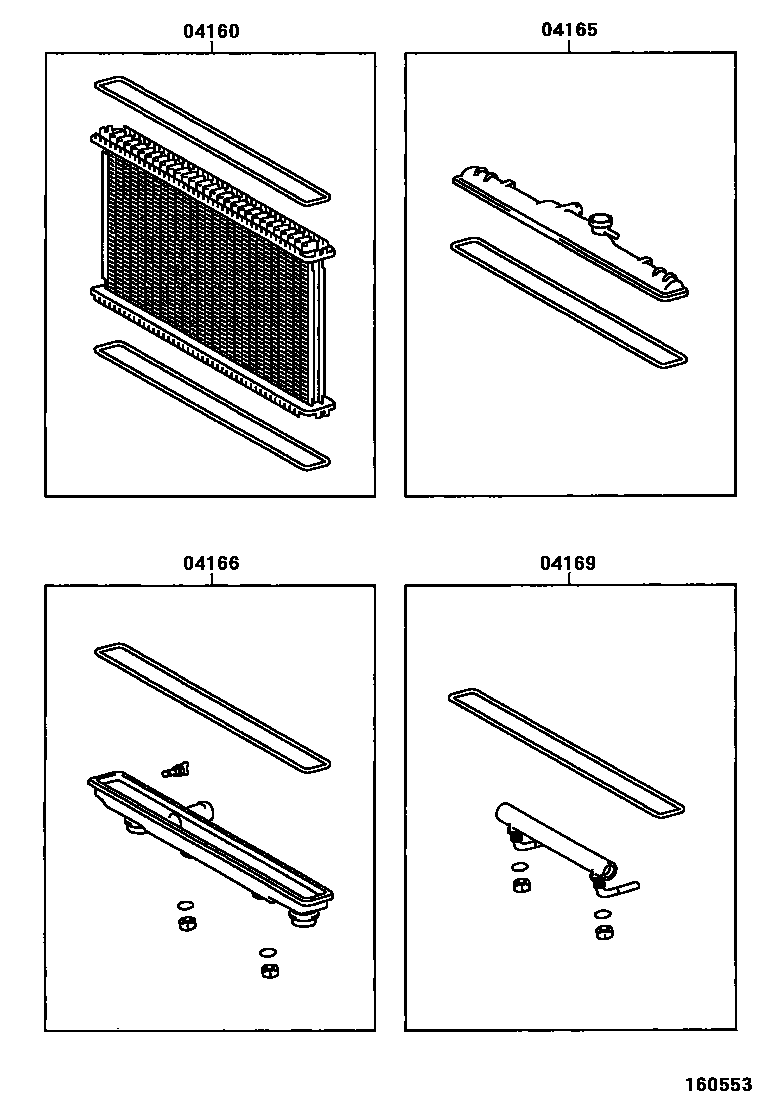

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04160 | Radiator core assembly | 04160-0D010 |
| 04165 | Radiator upper tank assembly | 04165-0D010 |
| 04166 | Radiator lower tank assembly | 04166-0D010 |
| 04169 | Transmission oil cooler assembly (for ATM) | 04169-0D010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0D010 · 16261-22020 · 16261-22080 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-41300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D010 · 16264-22010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0D010 · 16268-22020 |
| 16268G | Gasket (for water bypass pipe) | 16258-0D010 · 16258-22010 |
| 16321 | water inlet | 16321-0D010 · 16321-0D011 · 16321-22010 · 16321-22050 · 16321-22070 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 |
| 16331A | thermostat | 90916-03084 · 90916-03107 · 90916-03125 |
| 16361 | Fan | 16361-0D010 |
| 16361B | Fan No. 2 | 16361-0D020 |
| 16363 | cooling fan motor | 16363-0D010 · 16363-0D011 |
| 16363A | Cooling fan motor No. 2 | 16363-0D020 · 16363-22010 |
| 16400 | Radiator assembly | 16400-0D030 · 16400-0D040 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90080-34011 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 90069-08019 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-16020 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-0D020 |
| 16441 | Radiator water tank | 16441-0D010 |
| 16442 | O-ring (for radiator tank) | 16462-0D010 |
| 16461 | Radiator lower tank | 16461-0D020 |
| 16462 | O-ring (for radiator lower tank) | 16462-0D010 |
| 16470 | Radiator reservoir assembly | 16470-0D010 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90069-16006 · 90069-16007 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90069-19014 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0D010 |
| 16473 | Bracket (for radiator reservoir) | 16473-0D010 |
| 16533 | Radiator upper bracket | 16533-0D010 |
| 16535 | Radiator lower support | 16535-0D010 · 90916-04006 |
| 16571 | Radiator water inlet hose | 16571-0D020 · 16571-0D030 · 16571-0D040 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-0D020 · 16572-0D050 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-37002 · 90467-34003 |
| 16581 | Hose clamp (for water hose) | 16581-22010 |
| 16701 | Fan cover sub-assembly | 16711-0D010 |
