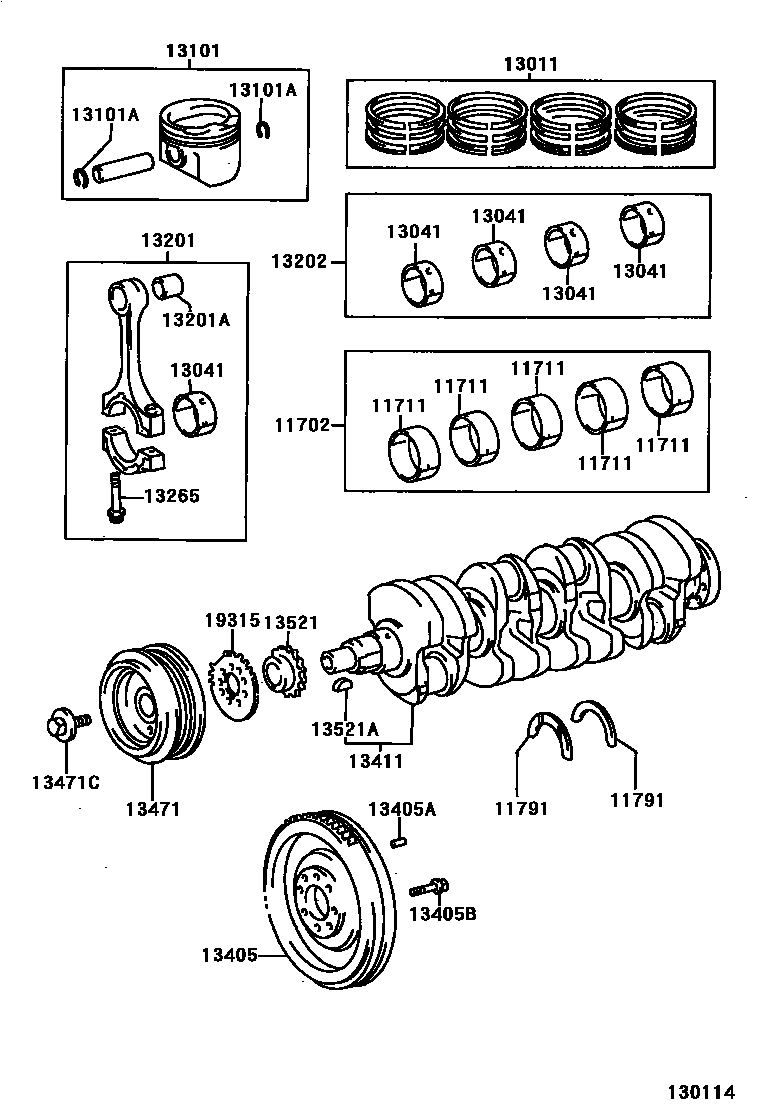

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-22030 |
| 11791 | Thrust washer on crankshaft | 11791-22020 |
| 13011 | Piston ring assembly | 13011-0D010 · 13011-22040 · 13011-22170 |
| 13101 | Piston sub-assembly with pin | 13101-0D010 · 13101-0D040 · 13101-22020 · 13101-22060 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09120 · 13201-09122 · 13201-29035 · 13201-29036 · 13201-29038 |
| 13201A | Bushing (for connecting rod small end) | 90999-73140 |
| 13202 | Connecting rod bearing assembly | 13204-22020 · 13204-22021 · 13204-22023 |
| 13265 | Connecting rod bolts | 13265-22020 |
| 13405 | Flywheel sub-assembly | 13451-22020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90910-02103 |
| 13411 | crankshaft | 13401-0D010 · 13401-22020 |
| 13471 | crankshaft pulley | 13470-0D010 · 13470-22020 · 13470-22021 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12127 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0D010 · 13521-22020 |
| 13521A | Key (for crankshaft timing gear) | 95161-30416 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-22010 · 19315-22020 |
