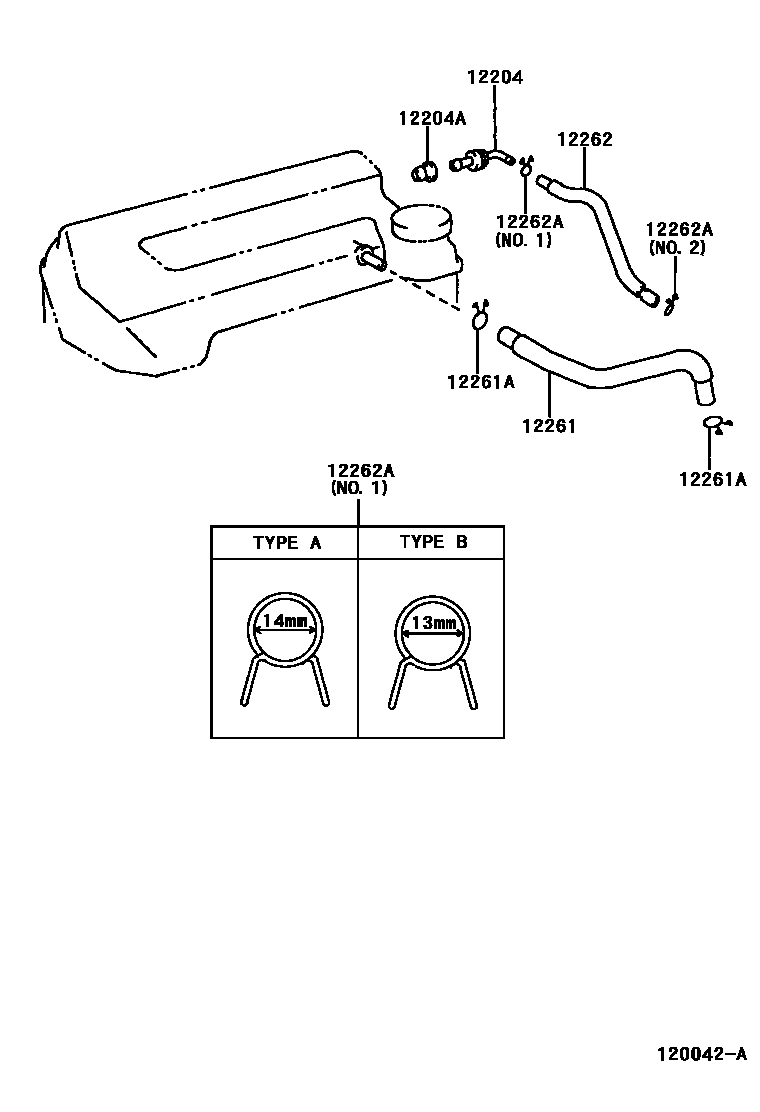

Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-22020 · 12204-22040 · 12204-22050 |
| 12204A | Gasket (for ventilation system) | 90480-18001 |
| 12261 | Ventilation Hose | 12261-0D010 · 12261-0D020 · 12261-22030 · 12261-22040 |
| 12261A | Clip or clip (for vent hose) | 90467-21152 |
| 12262 | Ventilation hose No. 2 | 12262-0D010 · 12262-0D020 · 12262-22010 · 12262-22050 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-14001 · 90467-16038 |
