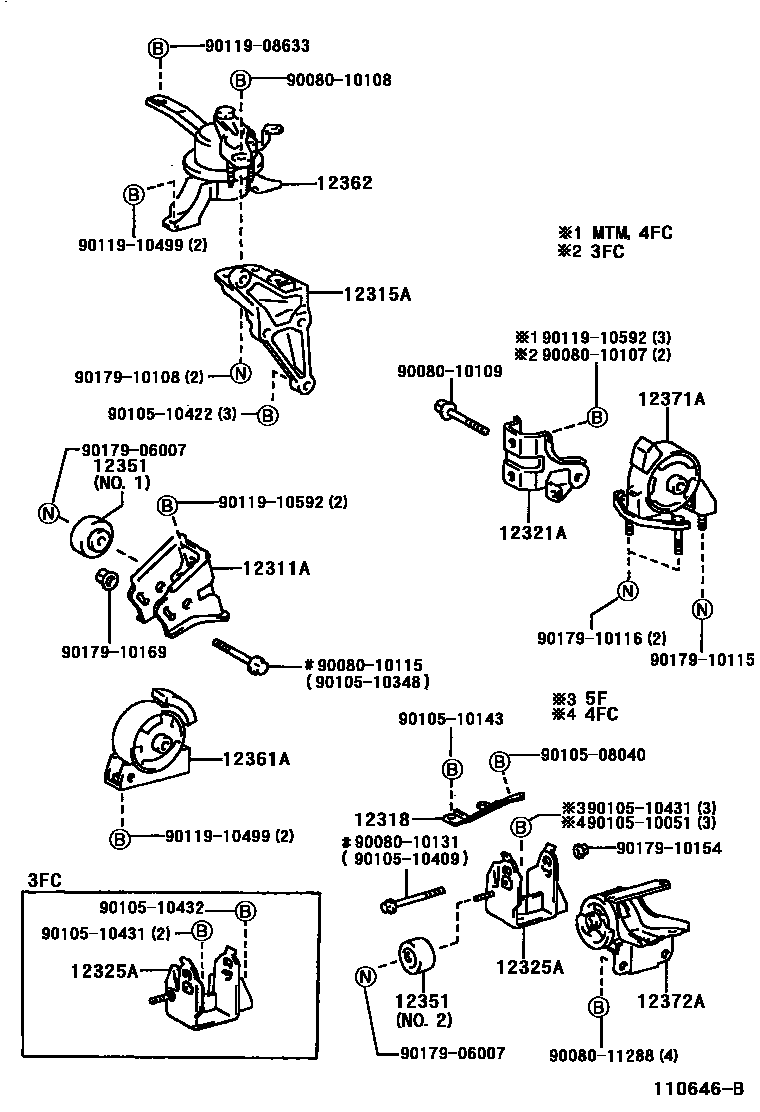

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0D010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0D010 · 12315-22010 |
| 12318 | Engine left mounting bracket | 12318-15080 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0D010 · 12321-0D020 · 12321-0D030 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-15080 · 12325-15090 · 12325-15100 |
| 12351 | engine mount shock absorber | 12351-15110 · 12351-22020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0D010 · 12361-0D011 · 12361-0D020 · 12361-0D021 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12305-0D010 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0D010 · 12371-0D020 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0D010 · 12372-0D020 · 12372-0D030 |
