Toyota COROLLA Cylinder Head — Figure 1104

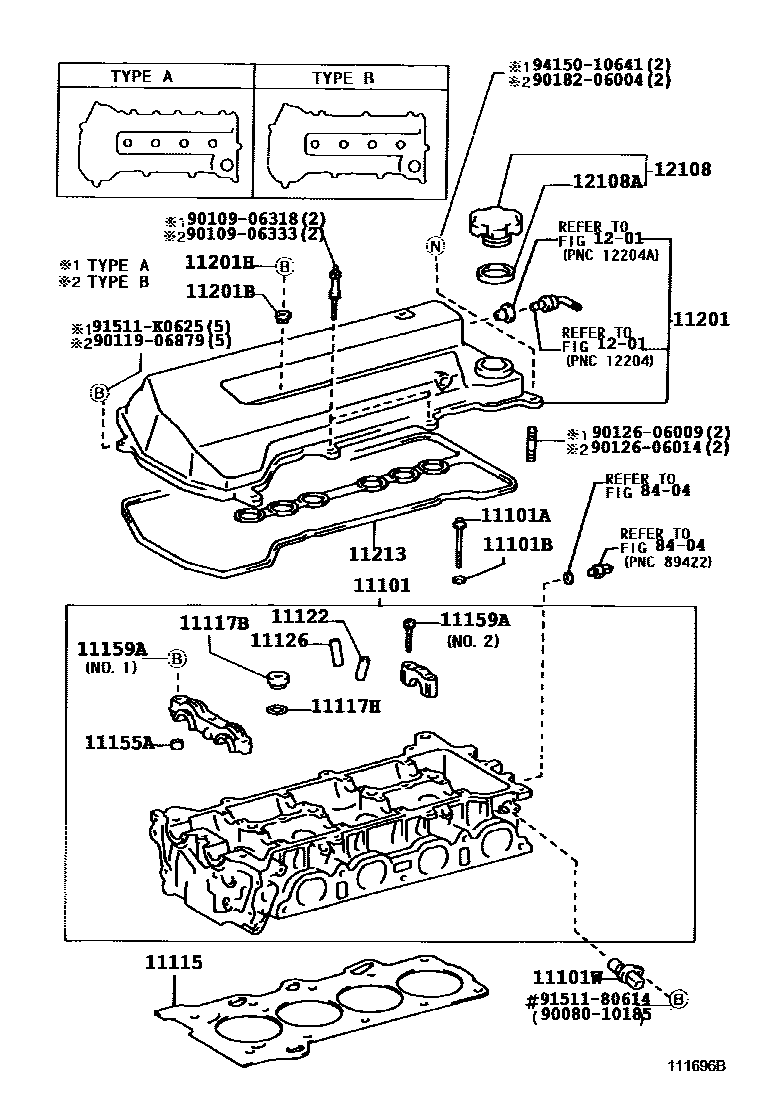

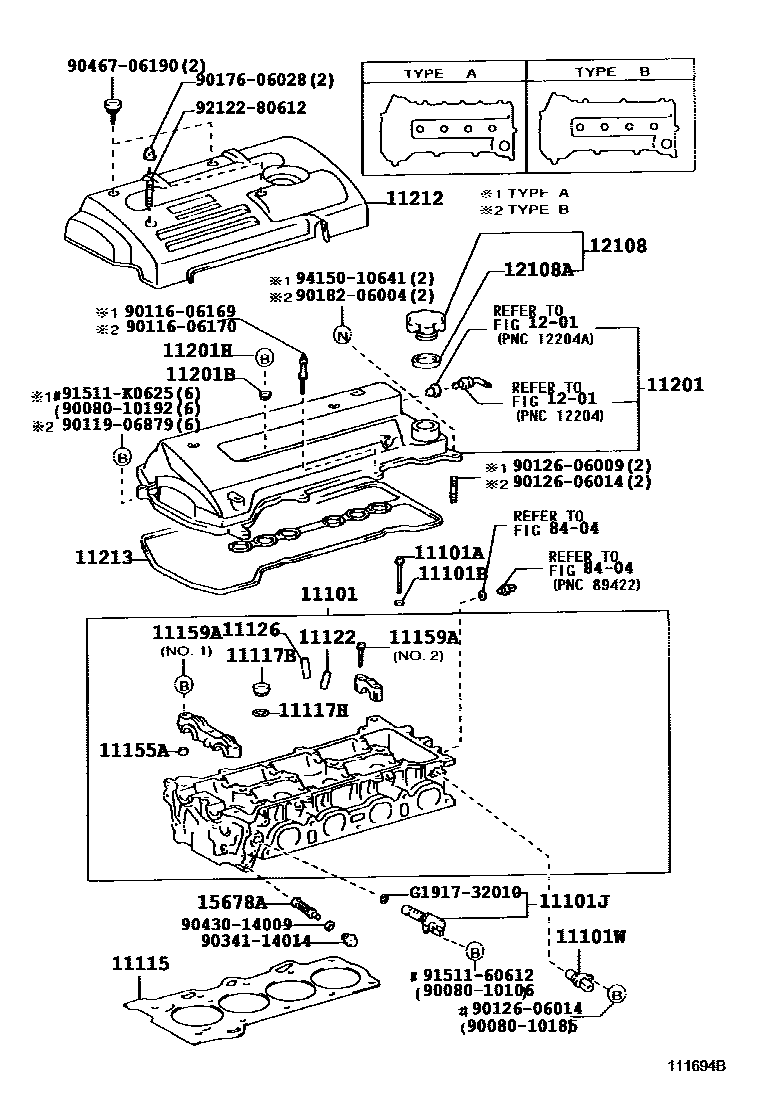

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0D010 · 11101-22040 · 11101-22041 · 11101-22070 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02123 · 90910-02134 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 |
| 11101J | Camshaft timing oil control valve assembly | 15330-22010 · 15330-22030 |
| 11101W | No. 1 crankshaft position sensor | 90080-19014 · 90919-05026 |
| 11115 | GASKET, CYLINDER HEAD | 11115-22030 · 11115-22031 · 11115-22040 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-22020 · 11122-22030 · 11123-22020 · 11123-22030 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-22020 · 11122-22030 · 11123-22020 · 11123-22030 |
| 11155A | PIN, RING W/HEAD | 90250-06001 · 90253-12001 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-11414 · 90080-11415 · 90109-06080 · 90119-08A29 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0D010 · 11201-0D030 · 11201-22040 · 11201-22060 |
| 11201B | Gasket (for cylinder head cover) | 90210-06012 · 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-06252 · 90105-06281 |
| 11212 | No. 2 cylinder head cover | 11212-22040 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0D010 · 11213-0D040 · 11213-22030 · 11213-22050 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0D010 · 12180-22010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43032 · 90430-37140 |
| 15678A | Oil control valve filter | 15678-21010 |
