Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

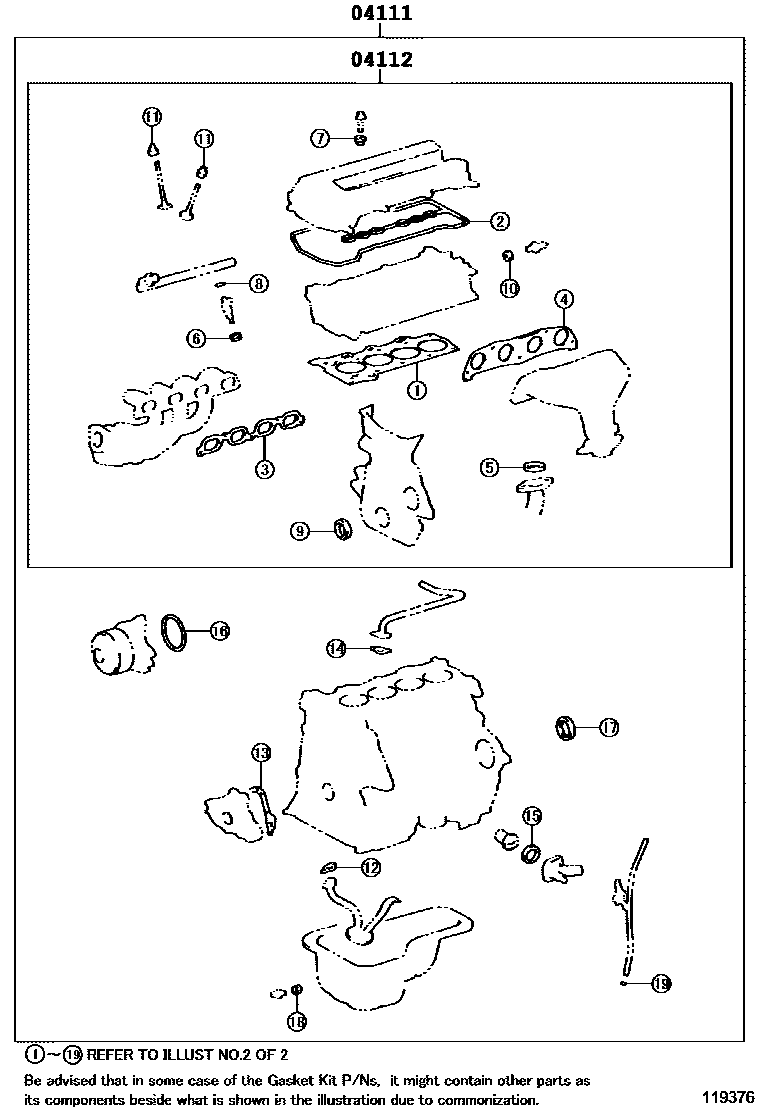

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119376
Engine Overhaul Gasket Kit — 119376 (199708 – 199908)

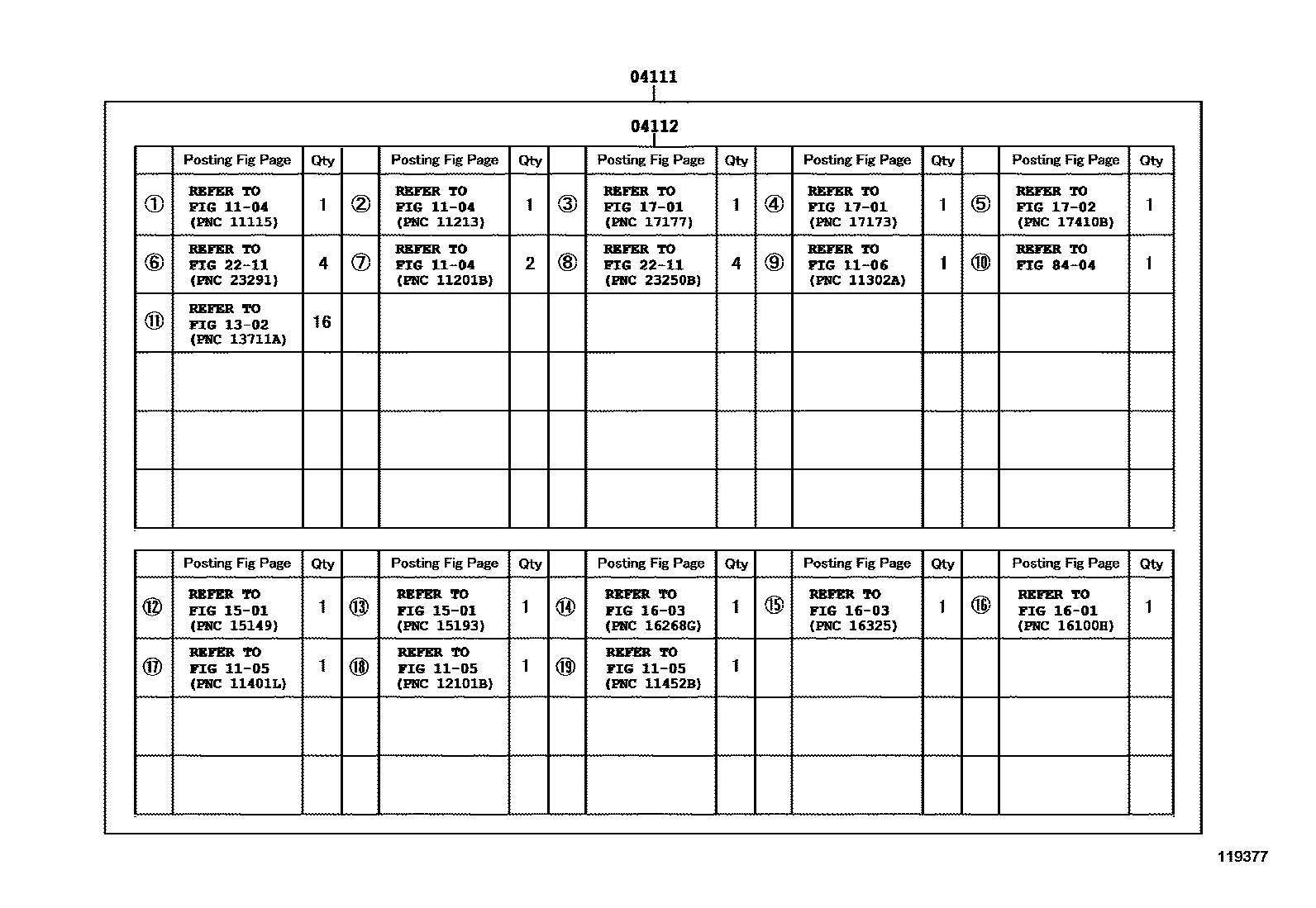

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119377
Engine Overhaul Gasket Kit — 119377 (199708 – 199908)

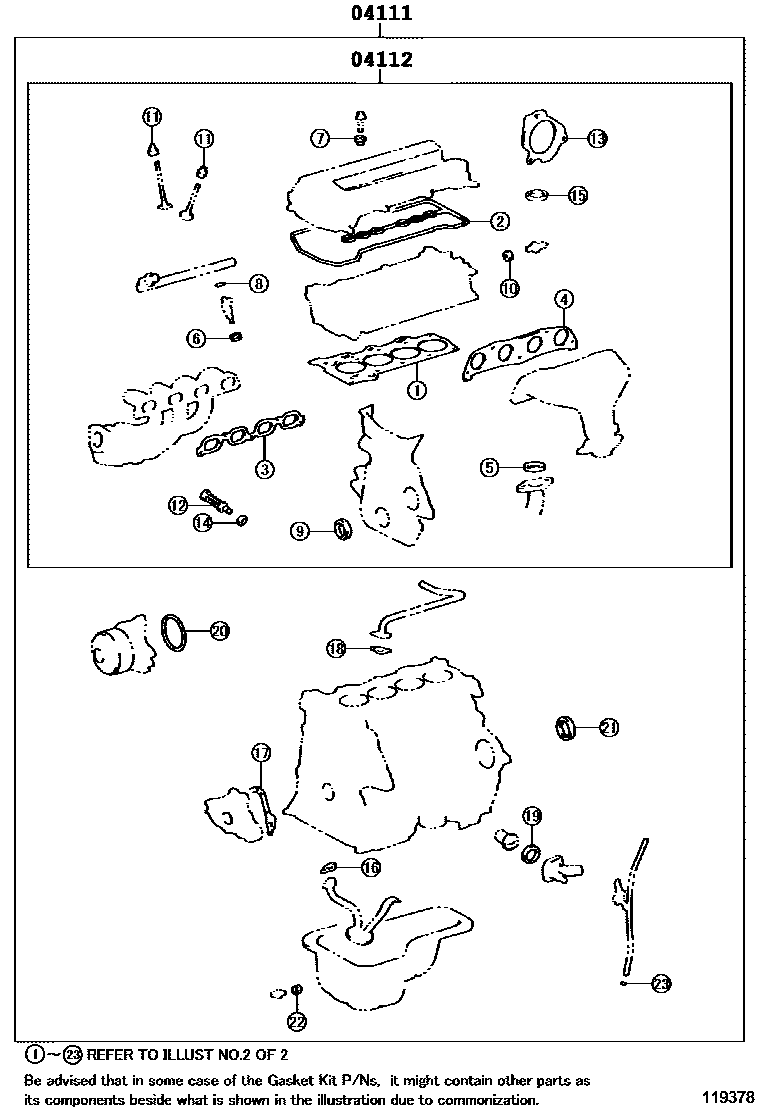

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119378
Engine Overhaul Gasket Kit — 119378 (199908 – 999999)

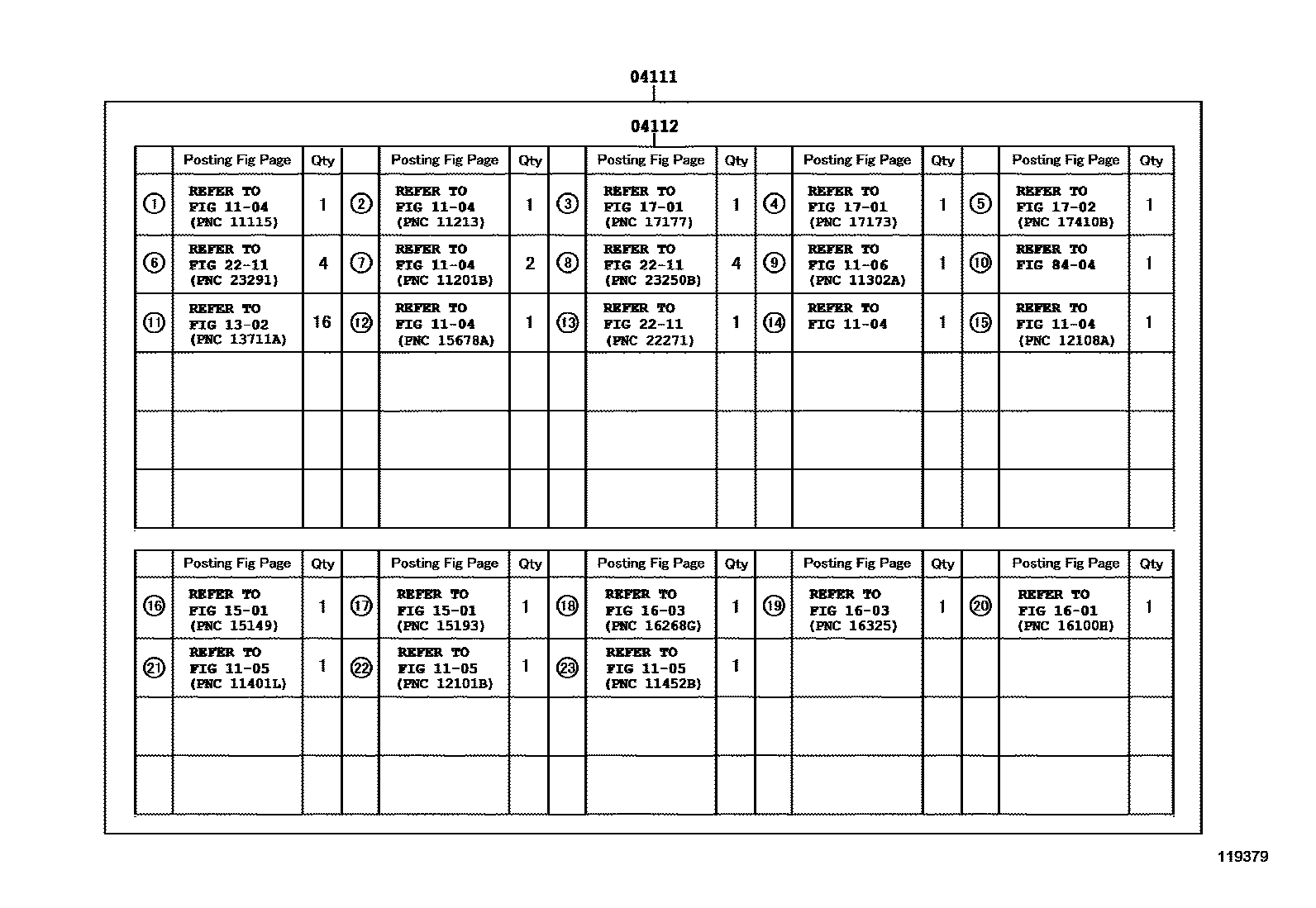

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119379
Engine Overhaul Gasket Kit — 119379 (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D020 · 04111-0D030 · 04111-22040 · 04111-22100
04112Engine valve grinding pad assembly04112-0D020 · 04112-0D030 · 04112-22040 · 04112-22100
