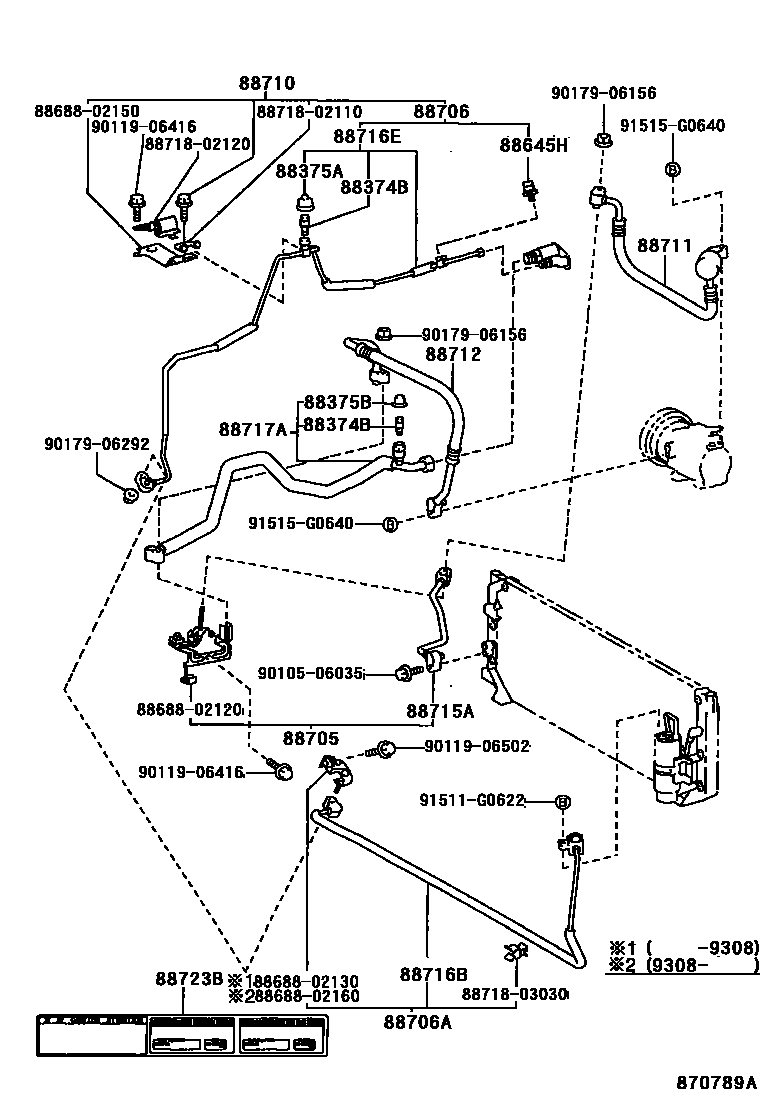

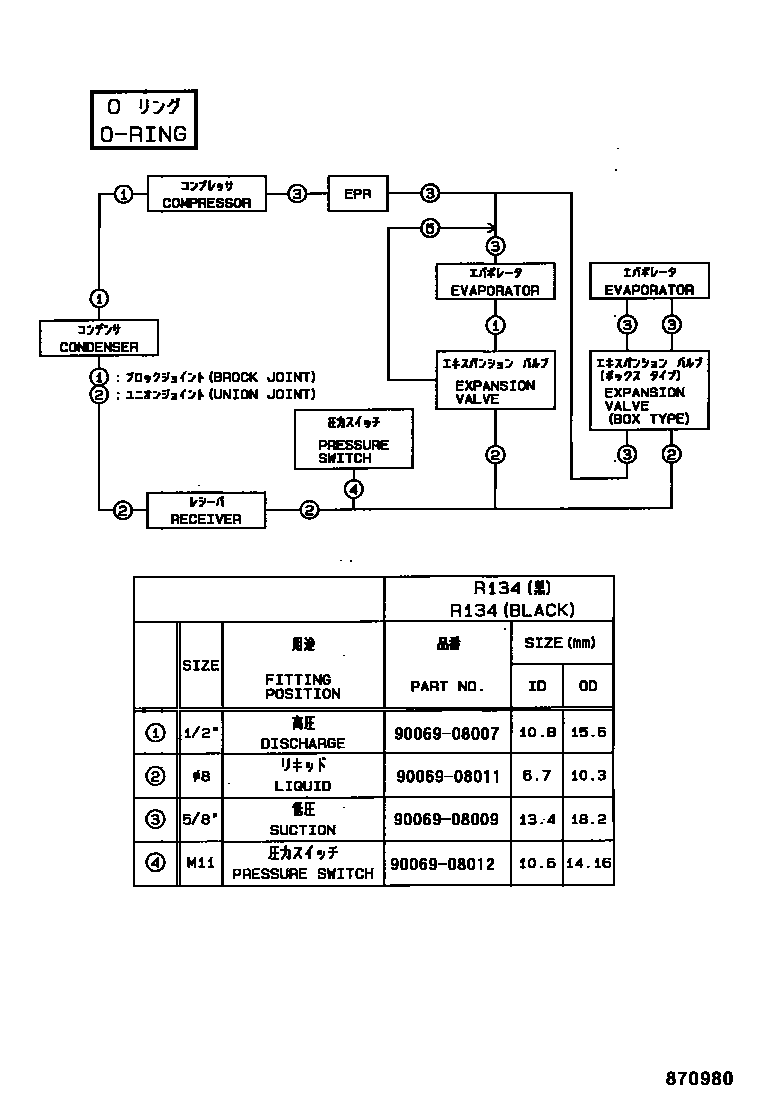

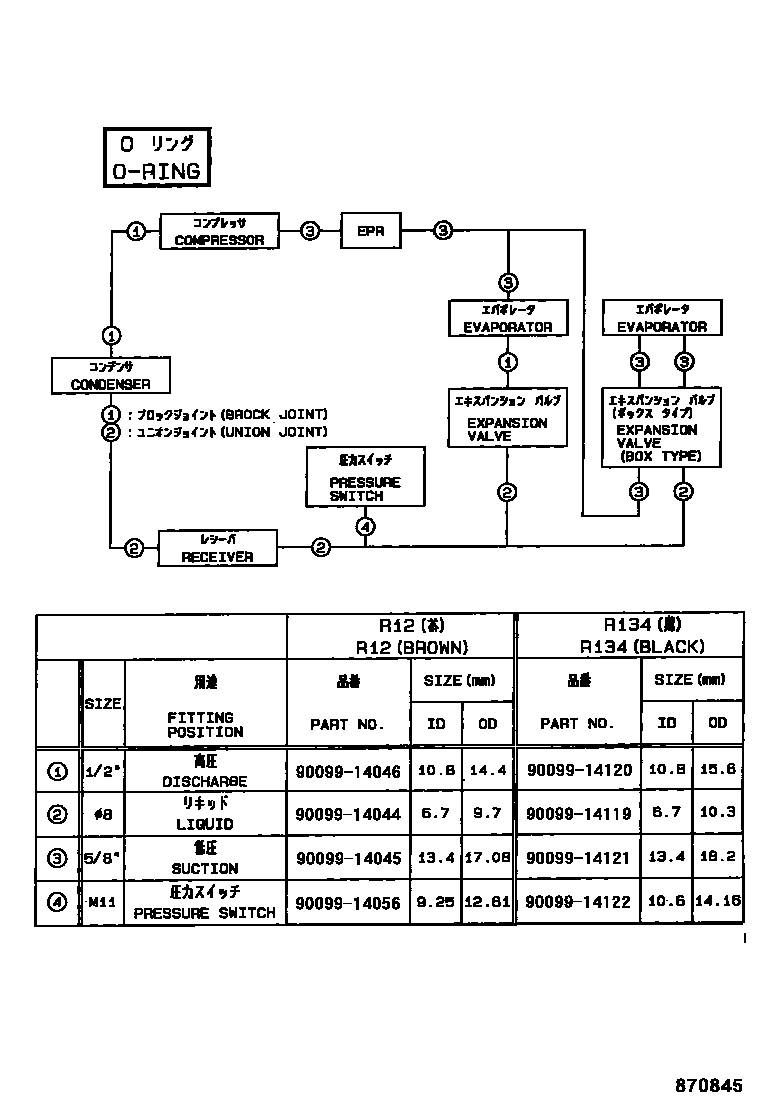

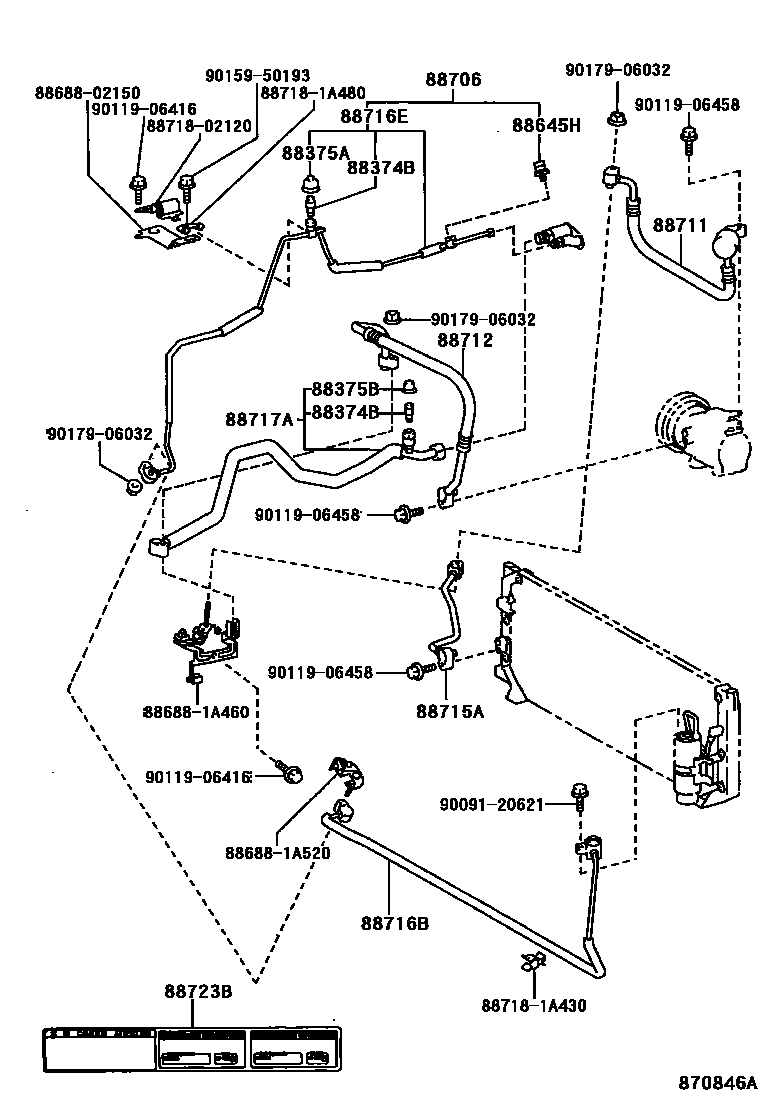

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-02010 · 88375-02020 · 88375-02060 · 88375-30290 |
| 88375B | No. 1 maintenance valve cover | 88375-02050 · 88375-02070 |
| 88453A | cooling fan | 88453-02020 · 88453-02030 |
| 88454A | fan cover | 88454-02020 · 88454-02030 |
| 88460 | Air conditioning condenser assembly | 88460-02030 · 88460-02040 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02050 · 88467-12100 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-02030 · 88467-12110 |
| 88470 | Cooler reservoir and dryer assembly | 88471-02010 · 88471-02020 · 88471-60010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-02010 · 88473-12080 |
| 88550 | Blower motor assembly (for condenser) | 88550-02020 · 88550-02030 · 88550-12160 |
| 88590 | Blower assembly with hood | 88590-02030 · 88590-02040 |
| 88645H | No. 1 pressure switch | 88645-02010 · 88645-06020 |
| 88705 | Discharge pipe sub-assembly | 88705-02020 · 88705-02030 |
| 88706 | Liquid pipe sub-assembly | 88706-02030 · 88706-02050 |
| 88706A | Liquid pipe A sub-assembly | 88706-02020 · 88706-02040 |
| 88710 | Air conditioning pipe assembly | 88710-02040 · 88710-02050 · 88710-02051 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-02020 · 88711-02030 · 88711-02040 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-02020 · 88712-02030 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-02020 · 88715-02030 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-02020 · 88726-02030 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-02070 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-02050 · 88716-02060 |
| 88717A | Cooler refrigerant suction pipe A | 88717-02070 · 88717-02080 |
| 88723B | Cooler maintenance warning label | 88723-02020 · 88723-02040 |
| 88892P | fan cover mesh | 88892-02010 |
