Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-02010 |

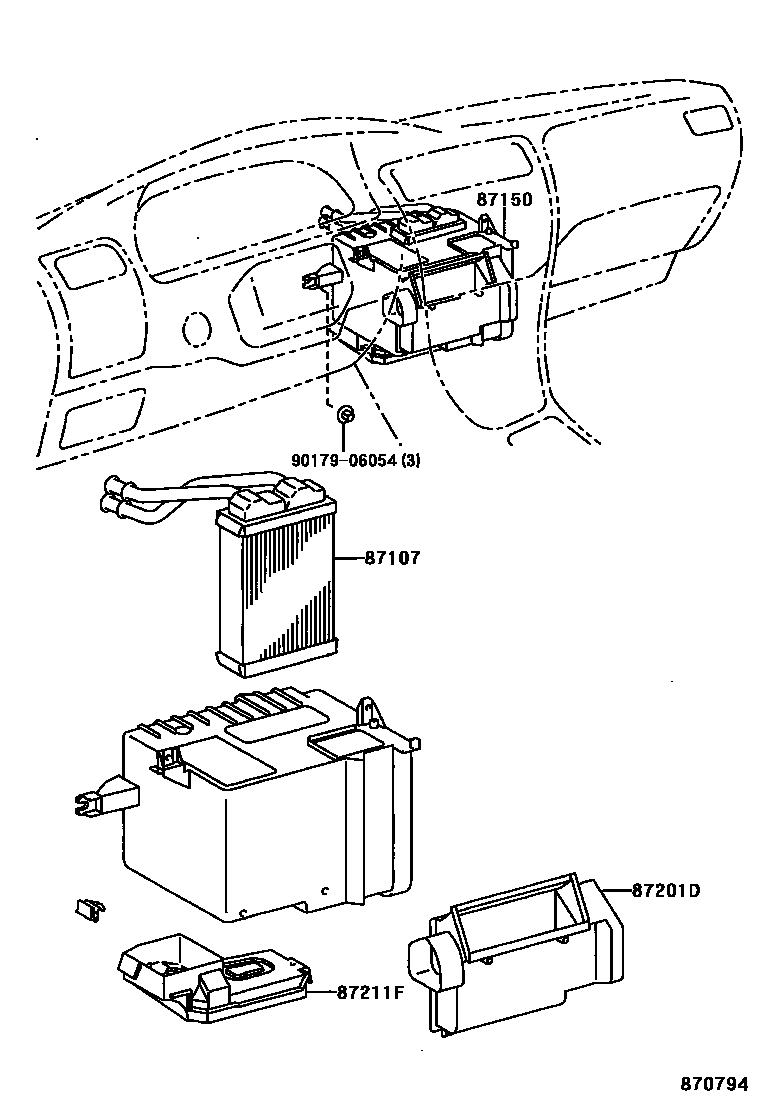

| 87107 | Heater radiator device sub-assembly | 87107-02030 · 87107-02040 · 87107-02041 |
| 87126B | heater control clip | 87126-01020 |

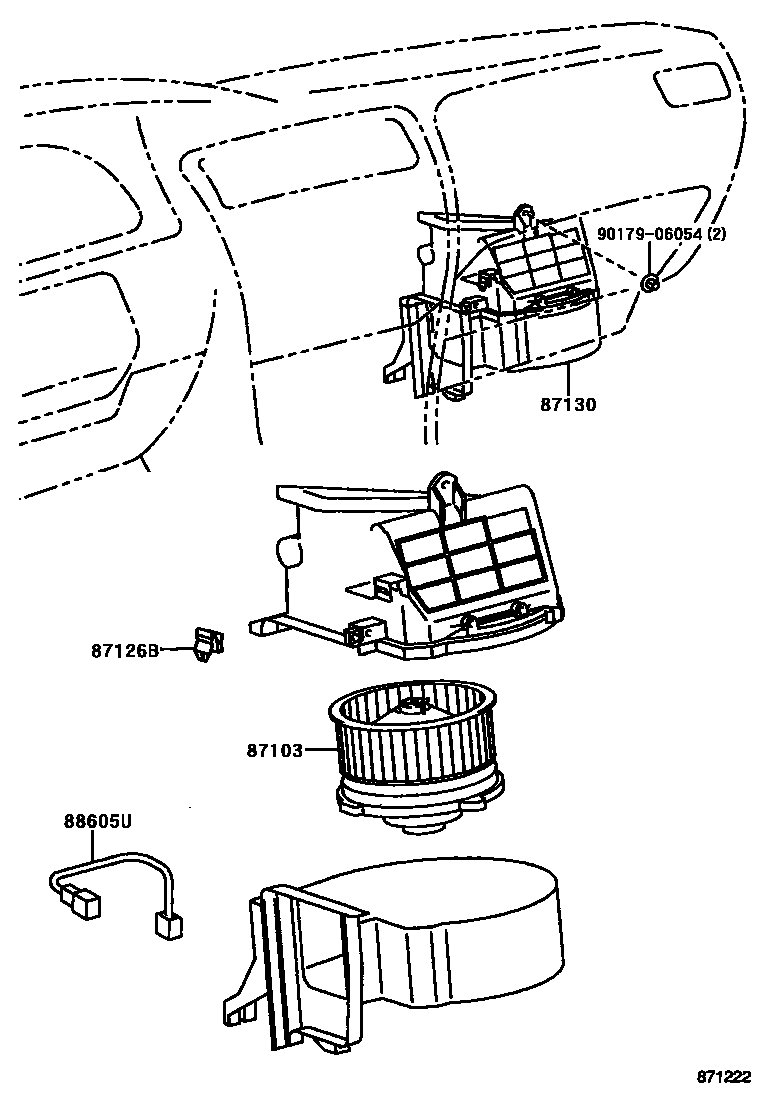

| 87130 | Front heater blower assembly | 87130-02010 · 87130-02011 |
| 87150 | Heater radiator assembly | 87150-02030 · 87150-02031 · 87150-02040 · 87150-02042 |
| 87201D | Air duct sub-assembly | 87201-02020 |
| 87211F | air duct | 87211-02020 · 87211-02030 |
| 88605U | Air conditioning wiring harness sub-assembly | 88605-02060 |
