Toyota COROLLA 后视镜 — Figure 8701

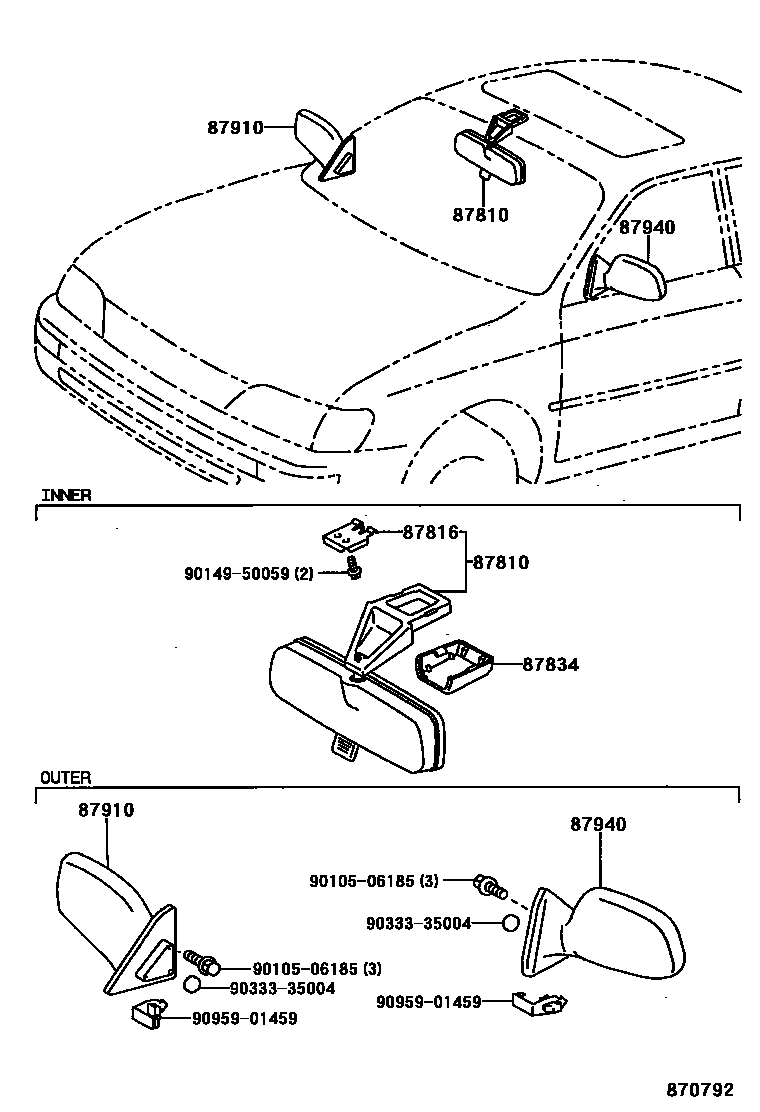

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-01020 |
| 87910 | Right exterior rearview mirror assembly | 87910-02060 · 87910-02061 · 87910-02062 · 87910-02070 · 87910-02071 · 87910-02072 · 87910-02073 |
| 87940 | Left exterior rearview mirror assembly | 87940-02060 · 87940-02061 · 87940-02070 · 87940-02071 · 87940-02072 |
