Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

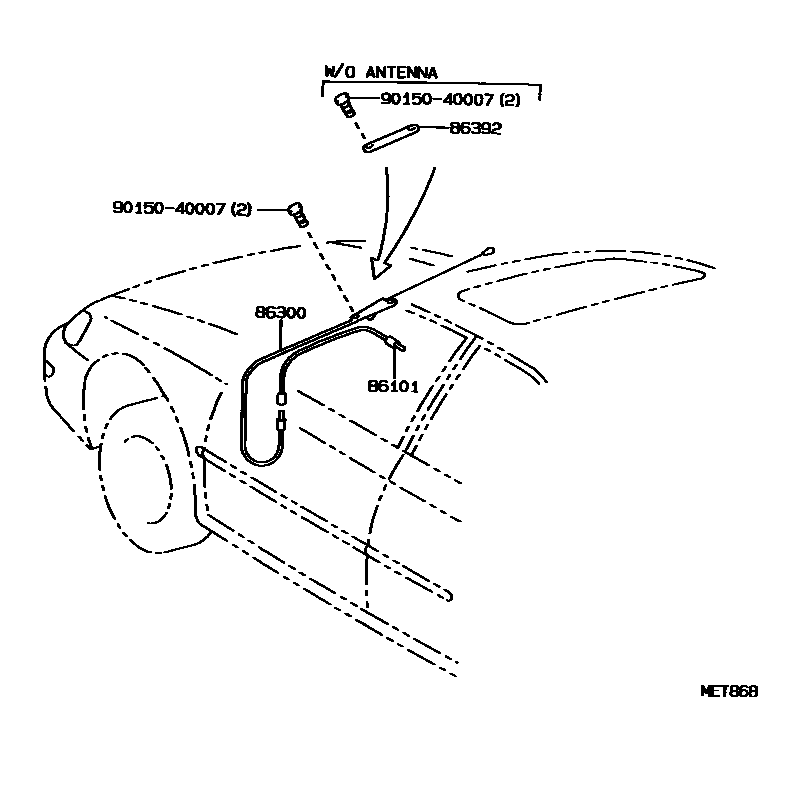

Toyota COROLLA antenna EPC diagram — MET868
antenna — MET868 (199209 – 999999)

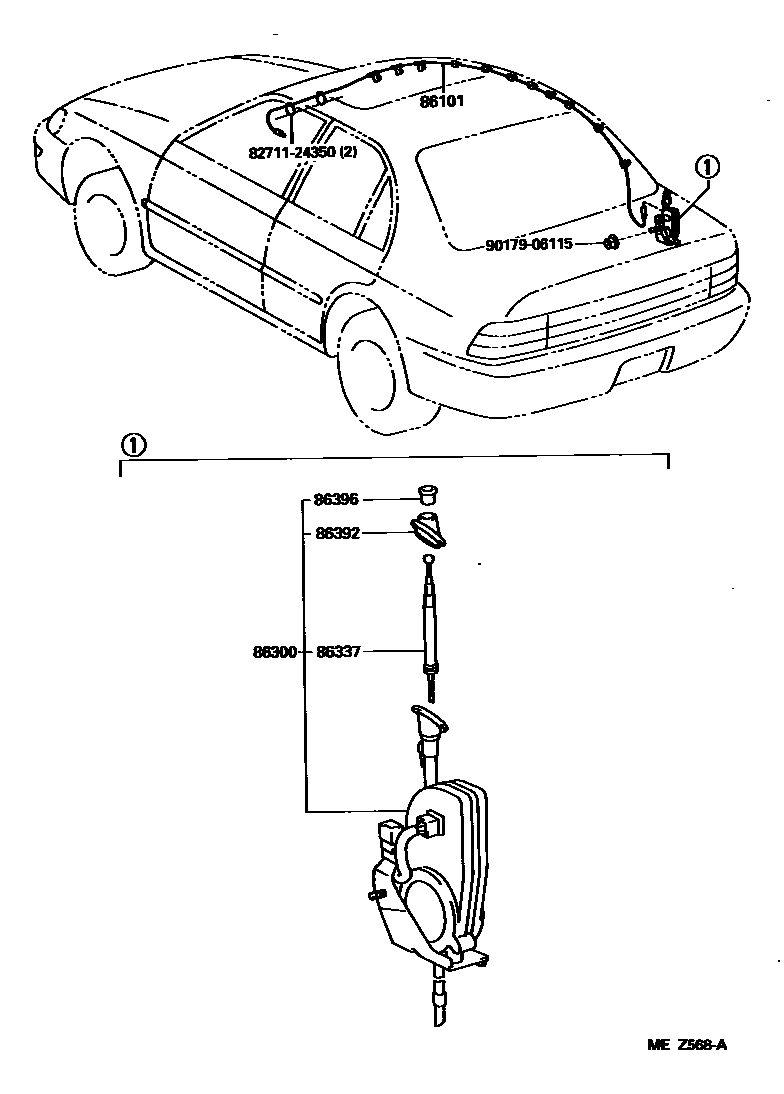

Toyota COROLLA antenna EPC diagram — MEZ568A
antenna — MEZ568A (199508 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-02010 · 86101-02020
86300Antenna assembly with fixing parts86300-02020 · 86300-02021 · 86300-02030 · 86300-AB010
86337Sealing rods and sealing tubes with cables86337-02010
86392Antenna decorative parts86392-02020 · 86392-12100
86396Antenna nut86396-06010
