Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

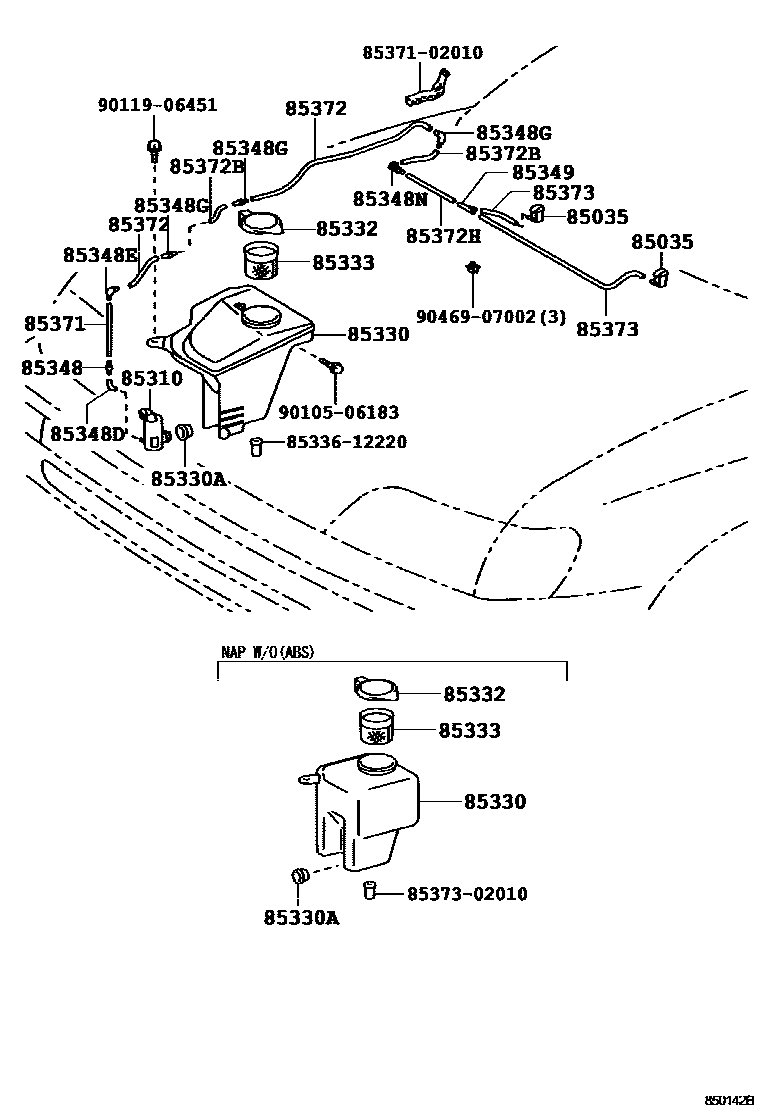

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-02010 |
| 85310 | Windshield washer motor and pump assembly | 85310-20190 · 85330-06010 · 85330-06030 · 85330-50020 |
| 85330 | Windshield washer fluid tank assembly | 85315-02010 · 85315-02011 · 85315-02012 · 85315-02013 · 85315-02020 · 85315-12390 |
| 85330A | Windshield washer fluid tank bushing | 85365-02010 · 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-01010 · 85316-01011 · 85316-02010 · 85316-20300 · 85316-20340 |
| 85333 | Windshield washer fluid tank filter | 85312-06010 · 85312-06011 · 85312-33010 |
| 85348 | Windshield washer hose connector No. 1 | 85334-22480 · 85375-01010 · 85377-02010 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12410 · 85376-01010 |
| 85348E | No. 2 windshield washer elbow joint | 85317-12410 · 85327-02010 |
| 85348G | Windshield washer hose connector No. 2 | 85317-02010 · 85319-12410 · 85377-02010 |
| 85348N | No. 4 windshield washer hose connector | 85375-02010 |
| 85349 | Windshield washer hose connector No. 1 | 85378-01010 |
| 85371 | Windshield washer hose (from motor to connector) | 85319-02010 · 85374-02070 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-02080 · 90080-44046 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90080-44043 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90080-44044 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90080-44042 · 90080-44045 |
