Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

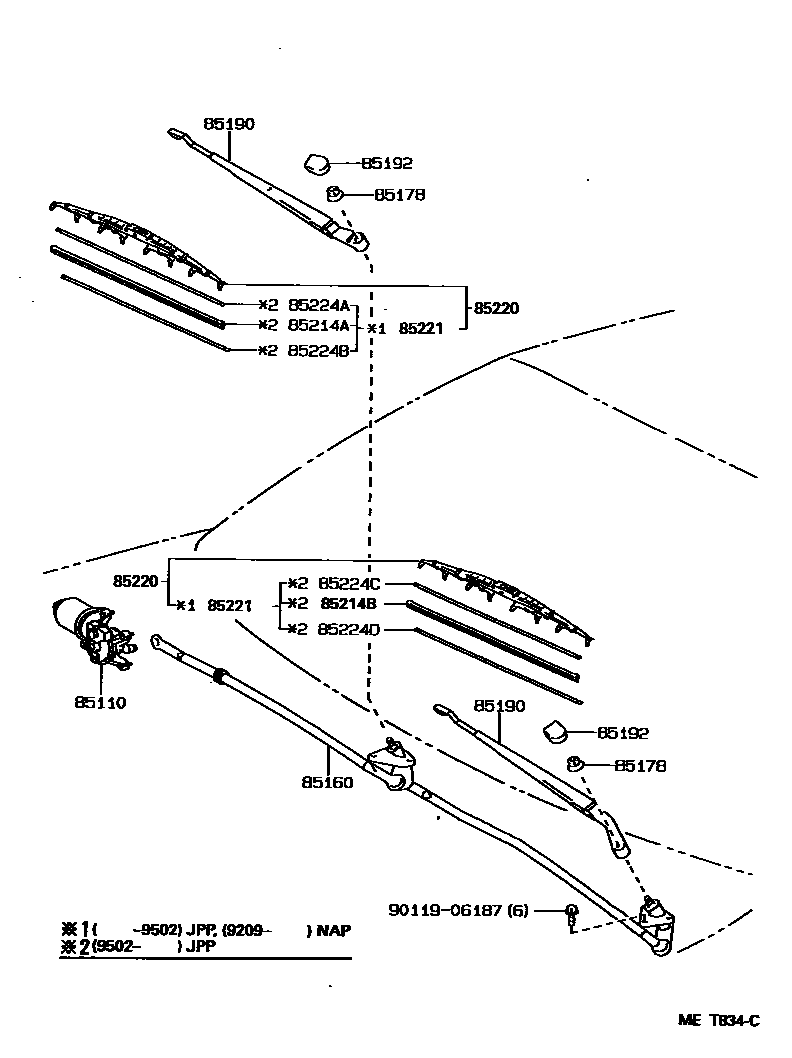

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02020 · 85110-12830 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02010 · 85150-02011 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85190 | Windshield wiper arm assembly | 85211-02010 · 85211-02020 · 85221-02020 · 85221-02030 |
| 85192 | windshield wiper arm cover | 85292-01020 |
| 85214A | Right wiper rubber strip | 85214-02010 |
| 85214B | Left wiper rubber strip | 85214-02040 |
| 85220 | Windshield wiper blade assembly | 85212-02010 · 85212-02011 · 85212-02020 · 85222-02010 · 85222-02011 · 85222-02020 |
| 85221 | Windshield wiper blade | 85213-02011 · 85213-02012 · 85223-02011 · 85223-02012 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-02010 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-02010 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-02040 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-02040 |
