Toyota COROLLA 空气囊 — Figure 8421

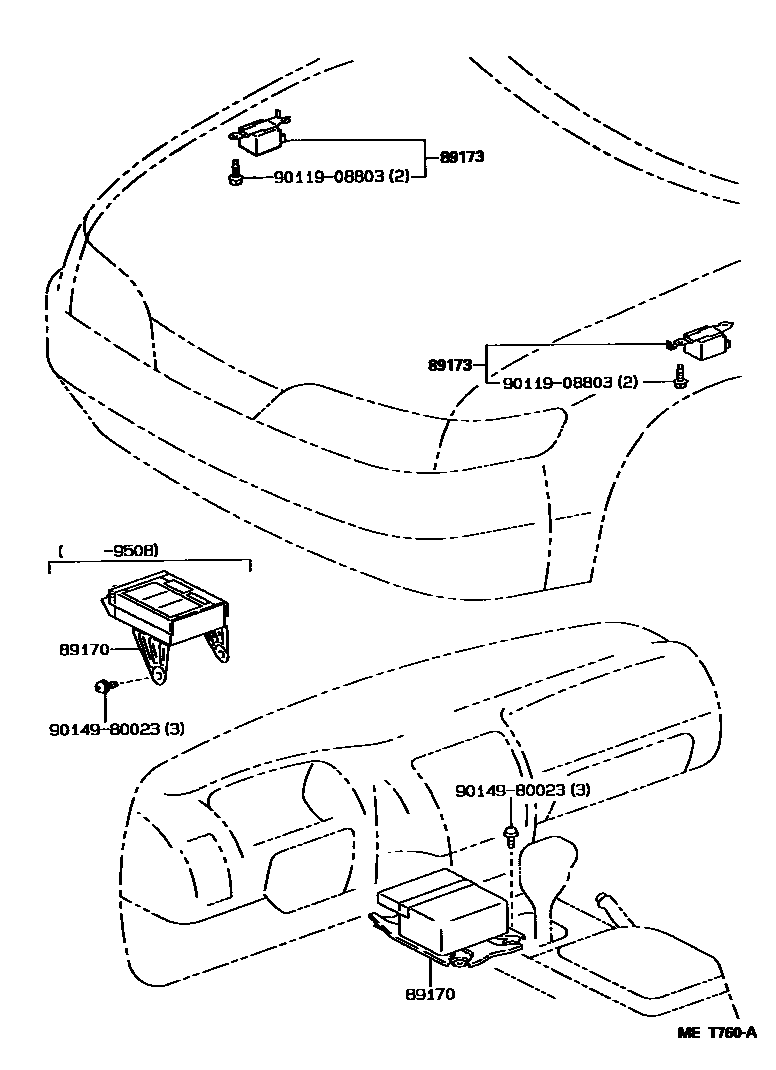

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-02020 · 89170-02021 · 89170-02030 · 89170-02031 · 89170-12010 · 89170-12020 · 89170-12040 · 89170-12050 |
| 89173 | front airbag sensor | 89173-09030 · 89173-09040 |
