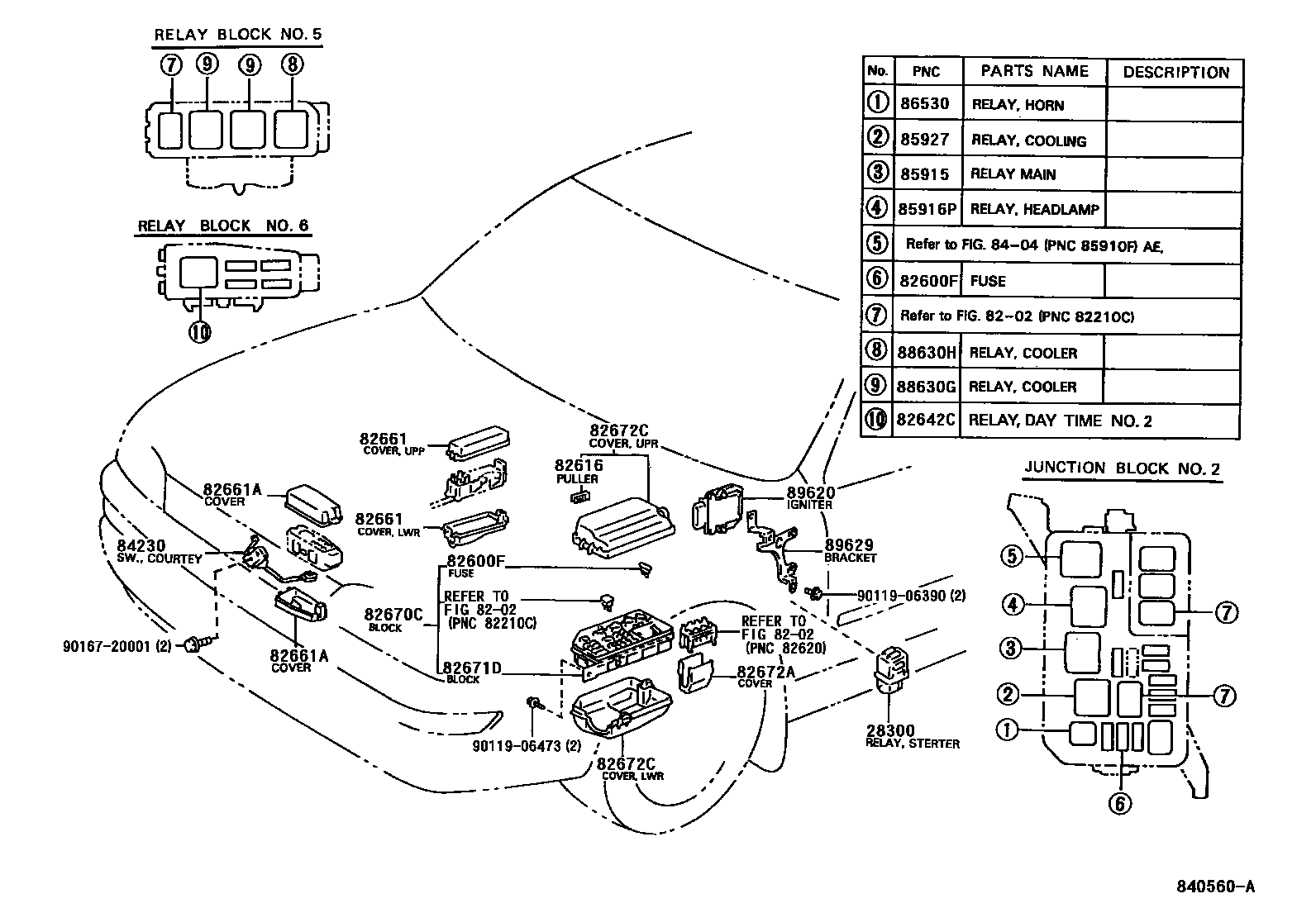

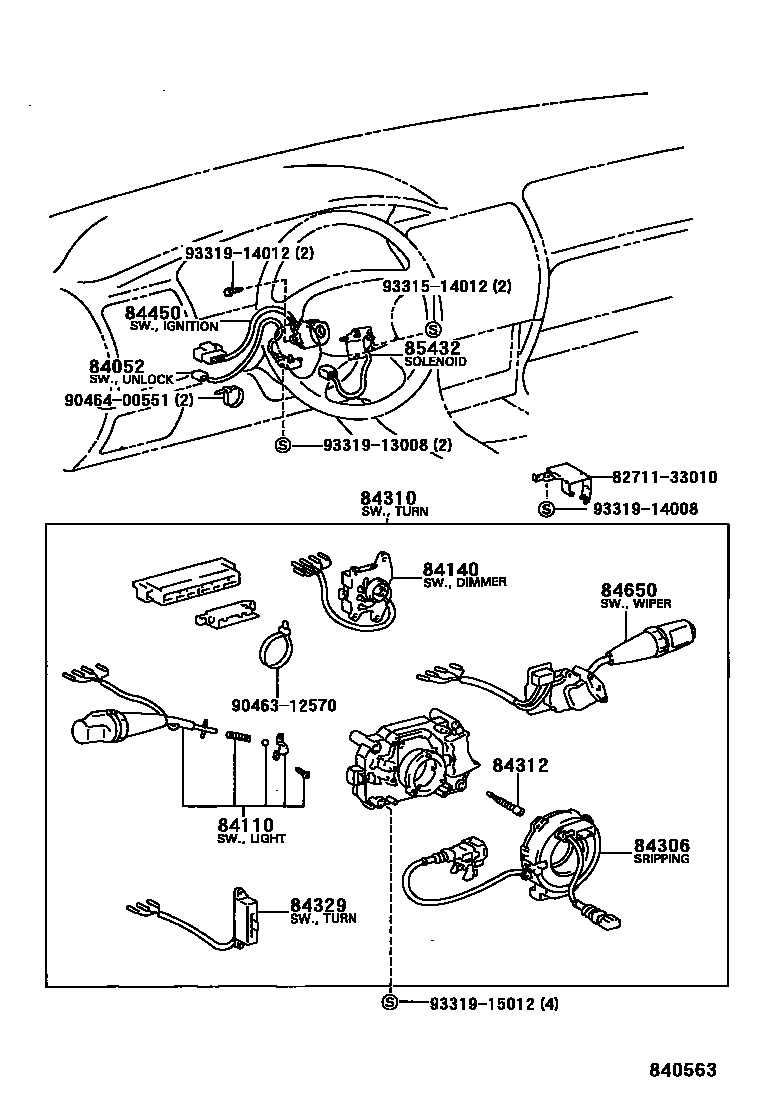

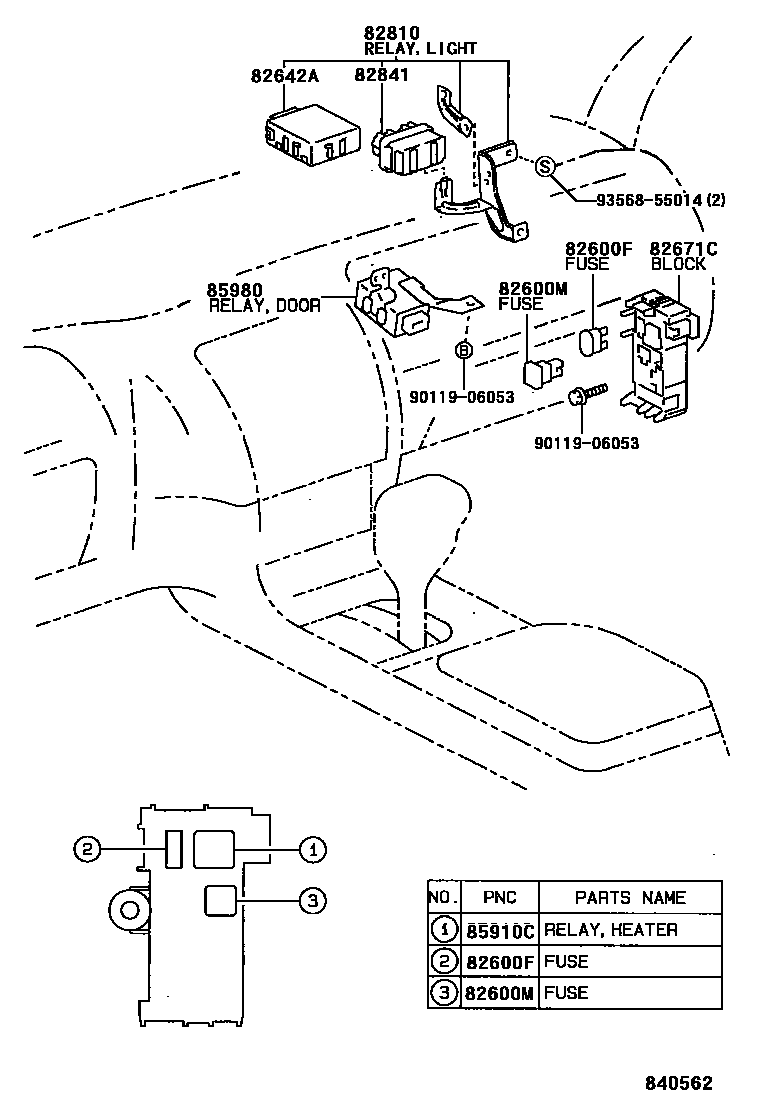

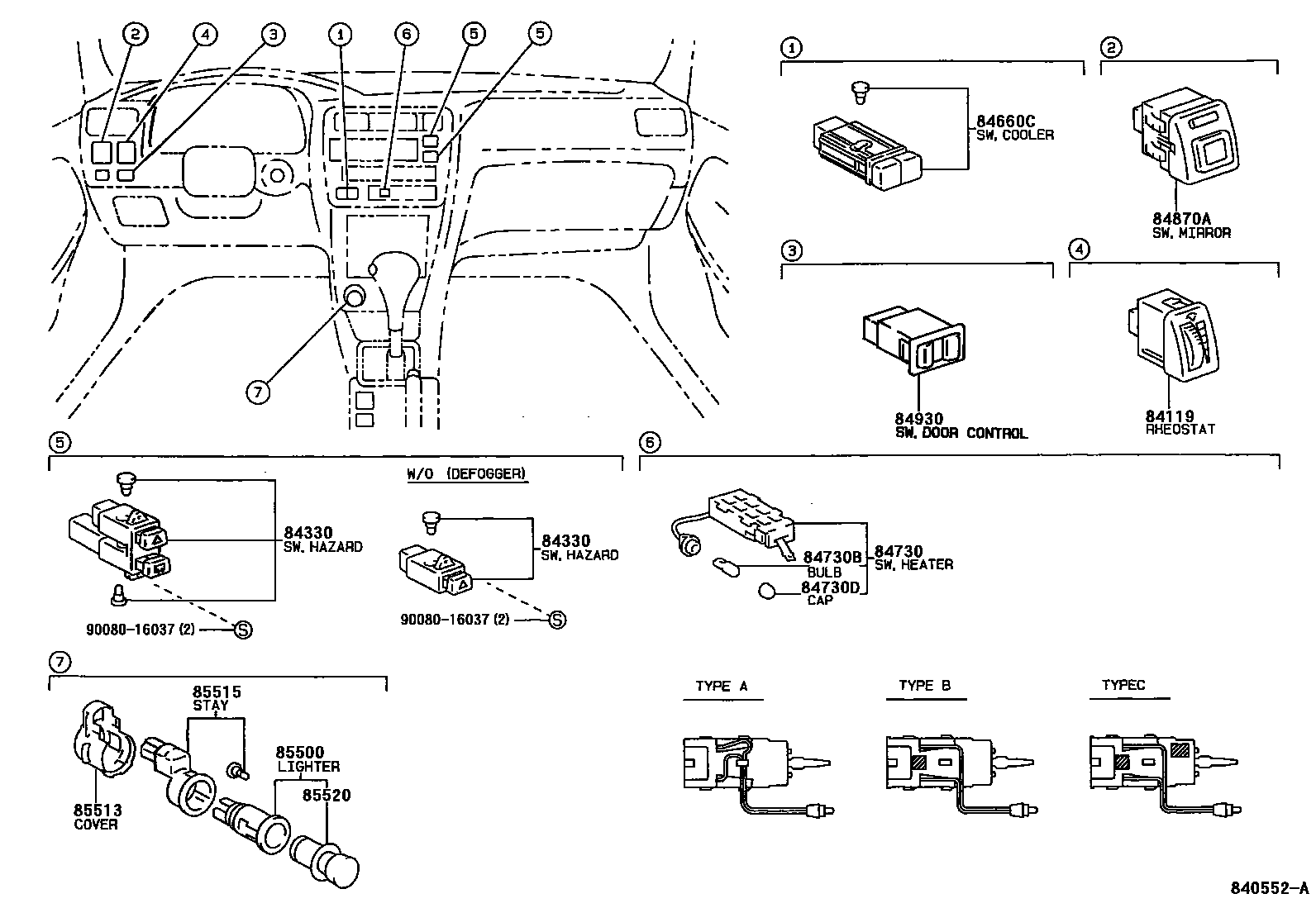

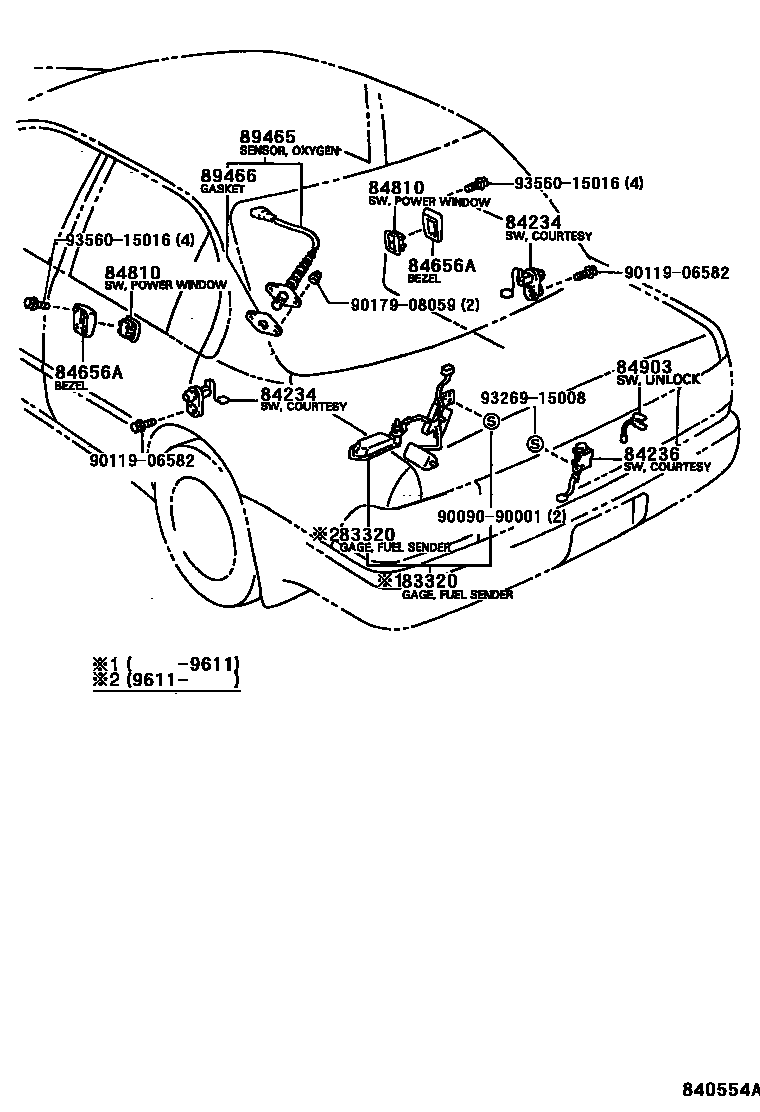

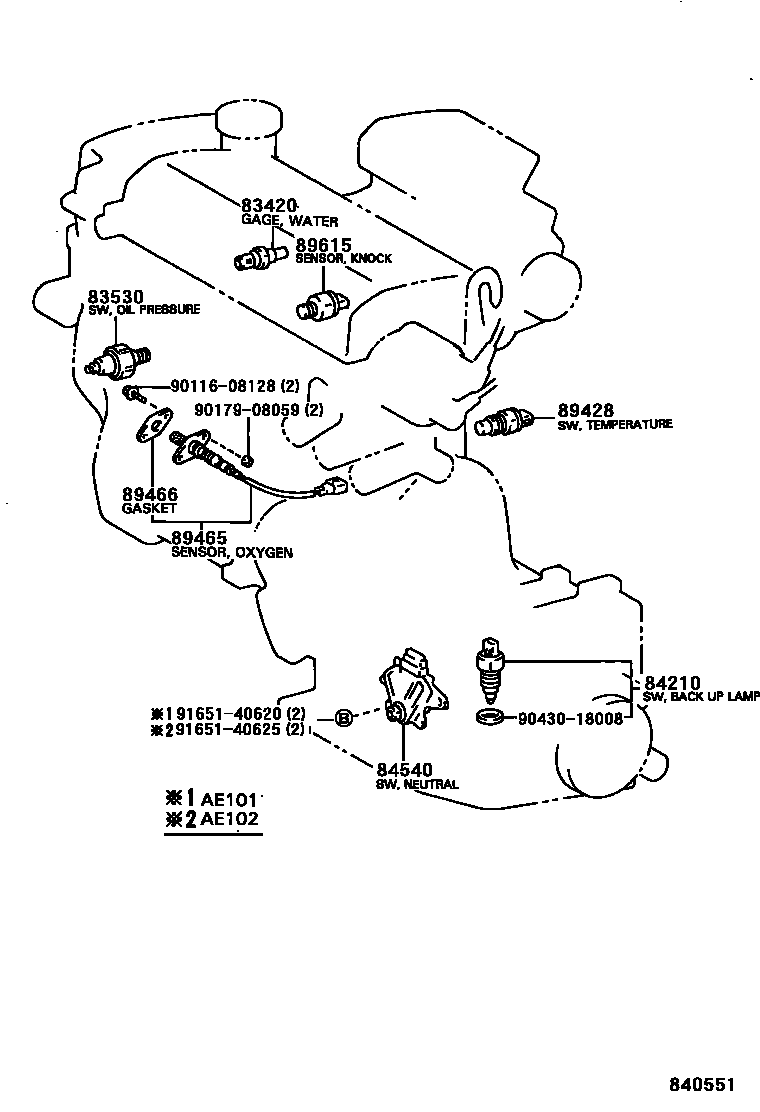

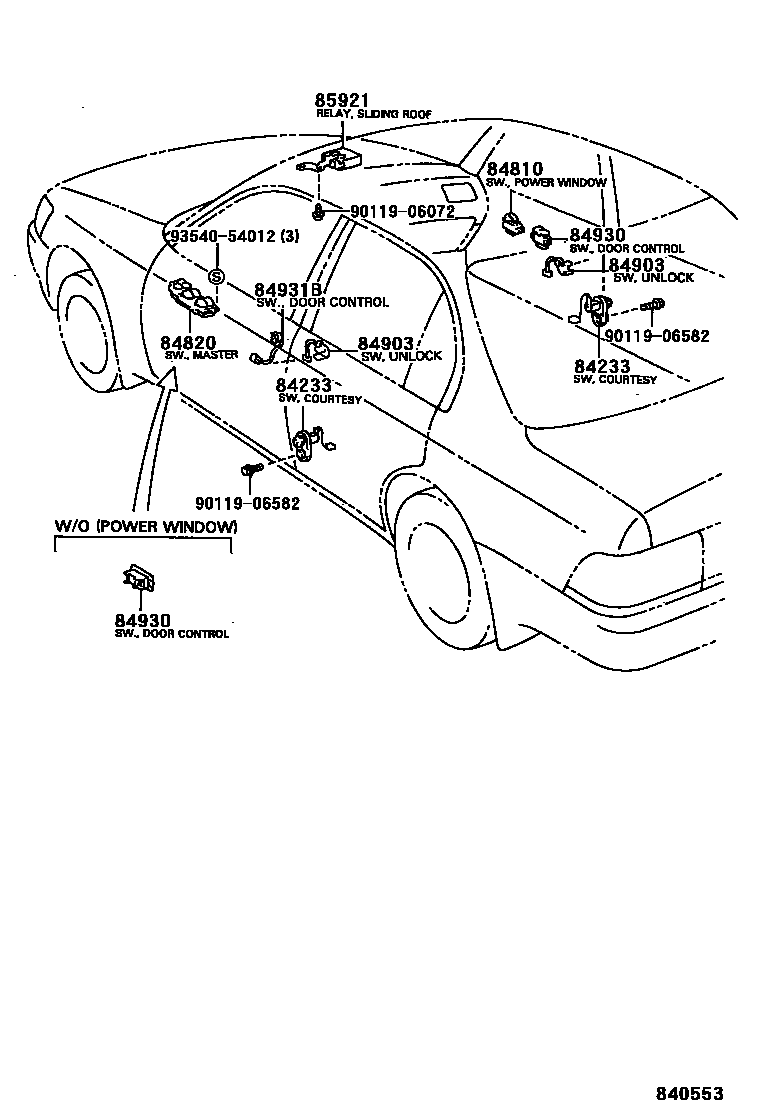

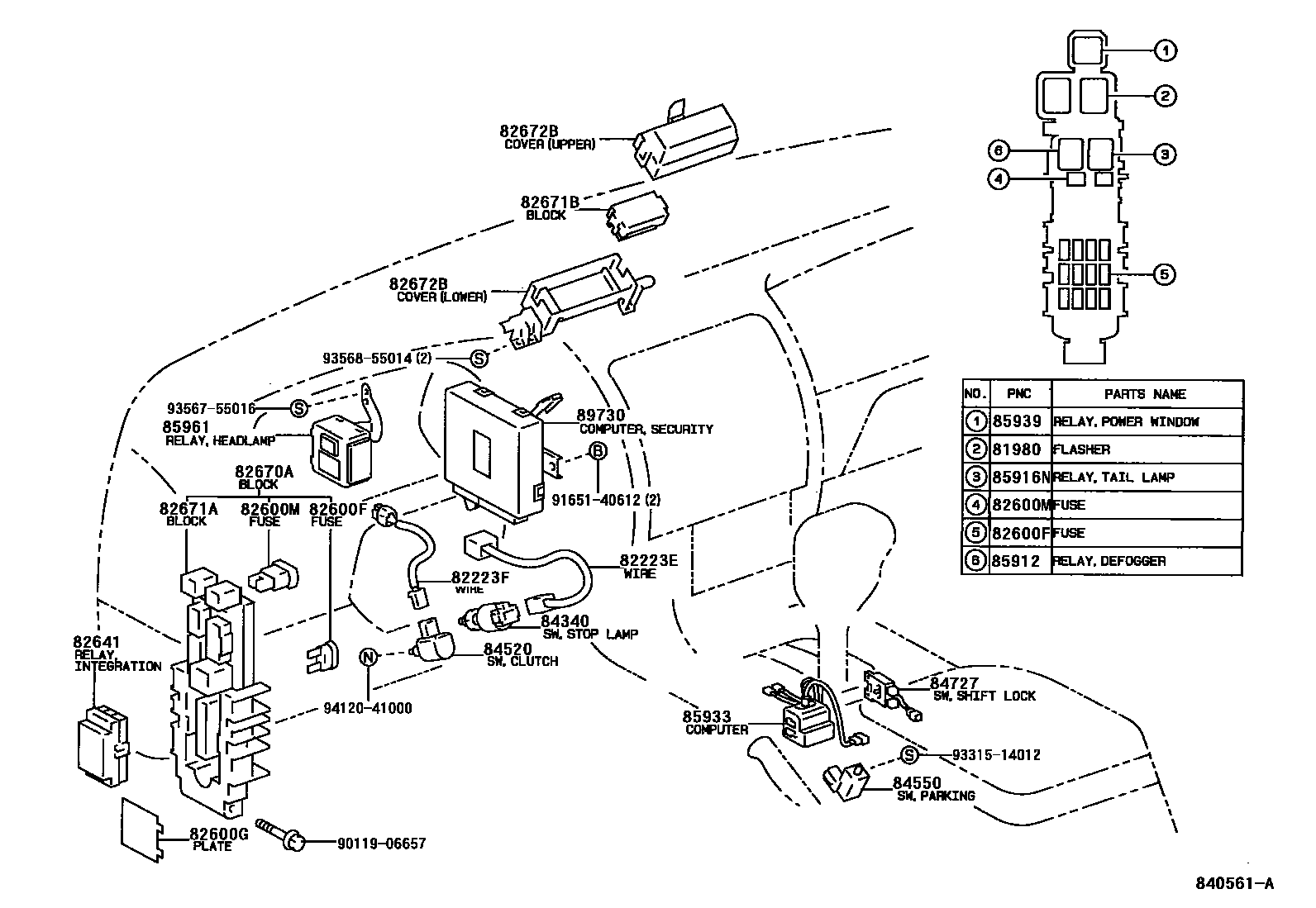

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 8 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 81980 | Turn signal flasher relay assembly | 81980-02010 · 81980-12070 · 81980-AC010 · 81980-AC020 |
| 82223E | Clutch starter switch wiring harness | 82223-12530 |
| 82223F | switch harness | 82223-12540 |
| 82600F | Spare fuse | 90080-82012 · 90080-82013 · 90080-82014 · 90080-82015 · 90982-09002 |
| 82600G | Warning nameplate (for fuses) | 82683-01030 · 82683-01031 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82616 | fuse puller | 82616-12020 |
| 82641 | Integrated relay No. 1 | 82641-02010 · 82641-12022 · 82641-AB010 |
| 82642A | driving light relay | 82642-12040 · 82642-33010 |
| 82642C | No. 2 daytime running light relay | 90987-02006 |
| 82661 | No. 1 relay box cover | 82661-12200 · 82661-12220 |
| 82661A | No. 2 relay box cover | 82661-12230 · 82661-12240 |
| 82670A | No. 1 junction box assembly | 82670-12330 · 82670-12340 |
| 82670C | No. 3 junction box assembly | 82670-12390 · 82670-12400 |
| 82671A | junction box | 82671-12210 |
| 82671B | junction box | 82671-12150 |
| 82671C | junction box | 82671-12200 |
| 82671D | junction box | 82671-12170 · 82671-12220 |
| 82672A | Junction box cover | 82623-12010 · 82672-12220 |
| 82672B | Junction box cover | 82672-12290 · 82672-12300 |
| 82672C | Junction box cover | 82672-02020 · 82672-02030 · 82672-02040 · 82672-12230 · 82672-12250 · 82672-12251 · 82672-12280 |
| 82810 | Driving light relay assembly | 82810-12050 · 82810-12070 · 82810-12100 · 82810-12110 |
| 82841 | Driving light voltage control relay | 82841-24010 |
| 83320 | Fuel gauge sensor assembly | 83320-09050 · 83320-12511 · 83320-80195 |
| 83420 | Water temperature sensor assembly | 83420-16050 · 83420-20040 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-30090 |
| 84052 | Unlock warning switch assembly | 84052-16020 |
| 84110 | No. 1 light control switch assembly | 84112-09070 · 84112-80117 |
| 84119 | Light control rheostat | 84119-02010 |
| 84140 | Headlight dimmer switch assembly | 84140-01030 · 84140-02010 · 84140-12360 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84230 | Door control light switch assembly (for engine room) | 84231-24030 |
| 84233 | Door control light switch assembly (for front door) | 84231-02020 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02020 |
| 84236 | Door control light switch assembly (for trunk) | 84231-02030 |
| 84306 | Spiral cable sub-assembly | 84306-02010 · 84306-02020 |
| 84310 | Turn signal switch assembly | 84310-01070 · 84310-02050 · 84310-02060 · 84310-02080 · 84310-1A760 |
| 84312 | Speaker contact piece | 84312-03010 · 84312-12050 |
| 84329 | turn signal switch | 84329-12070 |
| 84330 | Hazard warning signal switch assembly | 84332-02020 · 84332-02021 · 84332-02030 · 84332-02031 · 84332-02040 · 84332-02041 |
| 84340 | brake light switch assembly | 84340-32050 · 84340-32070 · 84340-32090 · 84340-32110 |
| 84450 | Ignition or starter switch assembly | 84450-20260 |
| 84520 | Clutch start switch assembly | 84520-24010 |
| 84540 | Neutral start switch assembly | 84540-12200 · 84540-12210 · 84540-16040 · 84540-16050 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-01070 · 84652-02040 · 84652-02050 · 84652-02060 · 84652-1A330 |
| 84660C | Cooler switch | 84660-02020 |
| 84727 | Shift lock control switch | 84727-01010 · 84727-12040 |
| 84730 | Heater blower switch assembly | 84732-02010 · 84732-02011 · 84732-12200 · 84732-12320 |
| 84730B | heater blower switch light bulb | 90069-98007 · 90981-11040 |
| 84730D | Heater blower switch bulb cover | 84998-10100 · 90069-09013 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-12250 · 84820-12251 · 84820-12330 · 84820-33060 |
| 84870A | Exterior rearview mirror switch assembly | 84870-12100 |
| 84903 | Door unlock switch sub-assembly | 84903-12080 · 84903-12120 · 84903-12130 |
| 84930 | Door control switch assembly | 84930-12120 · 84930-14090 |
| 84931B | door control switch | 84931-12080 · 84931-12081 · 84931-20180 |
| 85432 | Key interlock solenoid valve | 85432-12010 |
| 85500 | Cigarette lighter assembly | 85500-02010 · 85500-02011 |
| 85513 | Cigarette lighter cover | 85513-02010 |
| 85515 | Cigarette lighter frame bracket | 85515-01010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-06020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90084-98009 · 90987-02009 |
| 85915 | main relay | 90987-04002 |
| 85916N | Tail light relay | 90084-98009 · 90987-02009 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-12030 |
| 85927 | cooling fan relay | 90084-98011 · 90987-03003 |
| 85933 | Shift lock control ECU | 85933-12060 · 85933-12090 · 85933-12091 |
| 85939 | Power window relay | 90084-98009 · 90987-02009 |
| 85961 | Headlight fixture relay | 85961-12010 |
| 85980 | Door control relay assembly | 85980-12180 · 85980-12240 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 88630G | Cooler relay assembly | 90084-98009 · 90987-02009 |
| 88630H | Cooler relay assembly | 90084-98010 · 90987-04003 |
| 89428 | No. 2 temperature detection switch | 89428-12160 |
| 89465 | oxygen sensor | 89465-12380 · 89465-12390 · 89465-19535 · 89465-19545 · 89465-19555 |
| 89466 | Oxygen sensor pad | 89466-12020 · 89466-20020 |
| 89615 | knock control sensor | 89615-12030 · 89615-22030 |
| 89620 | Ignition assembly | 89621-26010 |
| 89629 | Ignition bracket assembly | 89629-12070 |
| 89730 | Safety warning ECU assembly | 89730-12031 |
