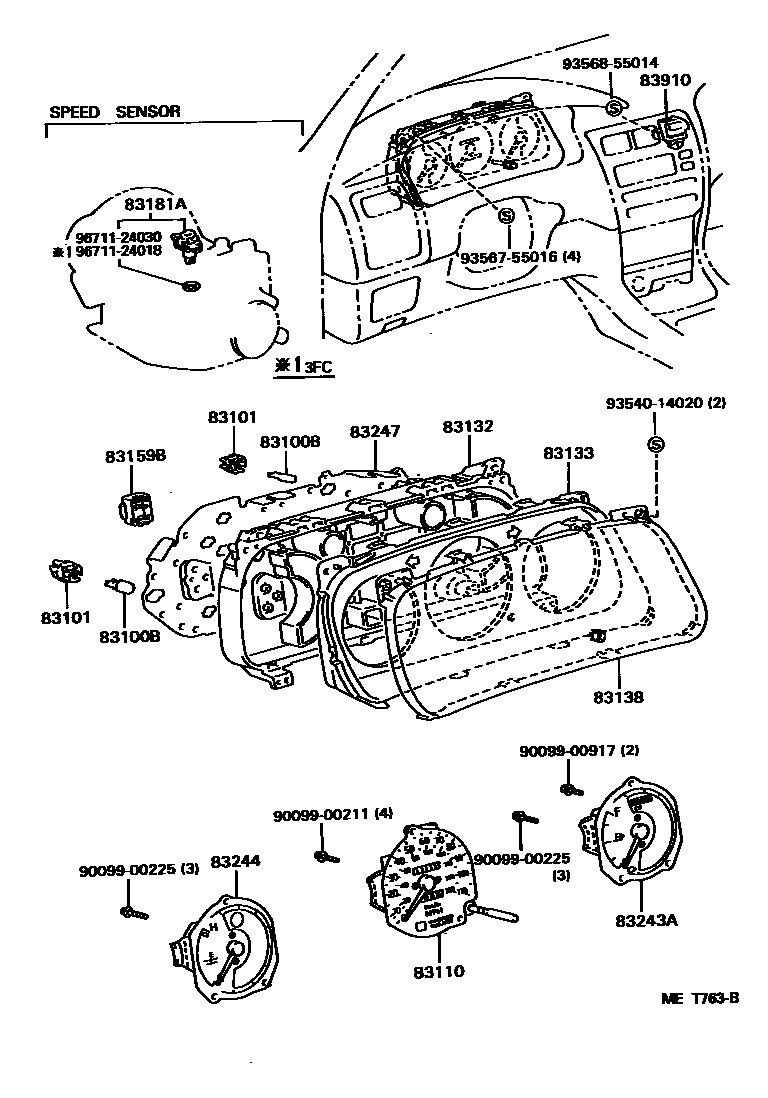

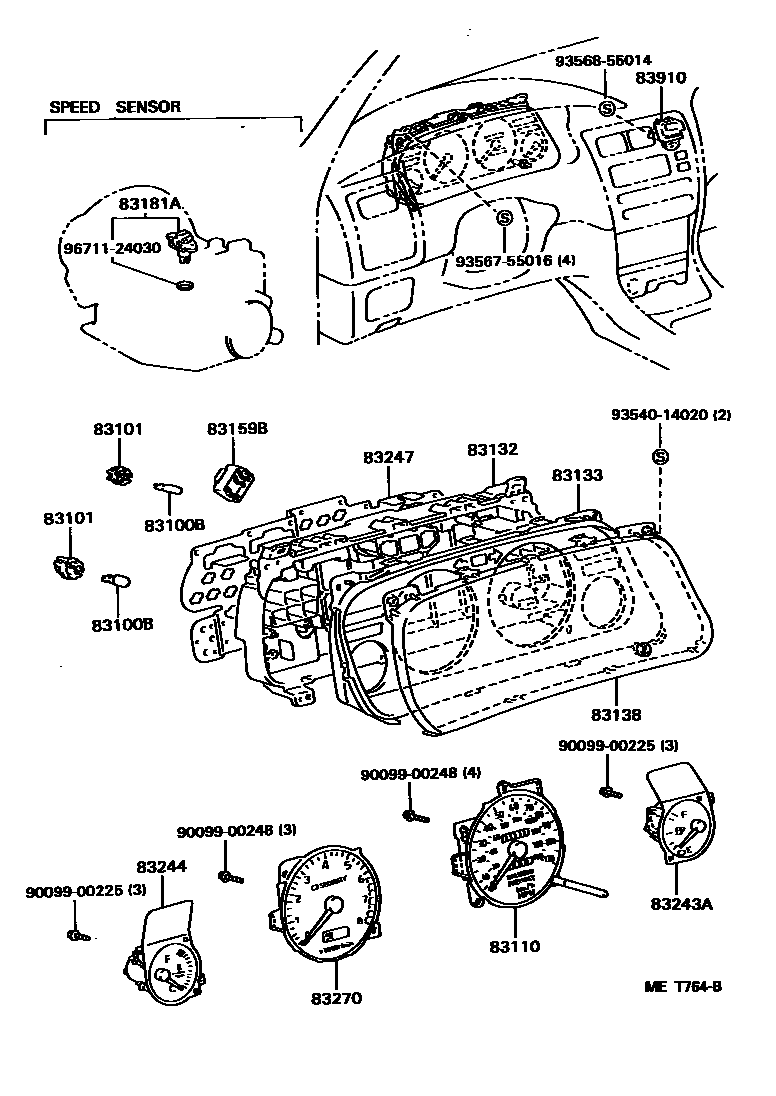

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-30070 · 83119-01010 · 83119-03010 · 83119-03030 · 83120-02010 · 83120-02020 · 83120-02030 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-02040 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83110-02100 · 83110-02101 · 83110-02110 · 83110-02111 · 83110-02120 · 83110-02121 · 83110-02130 · 83110-02131 |
| 83132 | Instrument cluster housing | 83132-02020 · 83132-02030 |
| 83133 | Combined instrument panel No. 1 | 83133-02030 · 83133-02040 |
| 83138 | speedometer glass | 83138-02030 · 83138-02040 |
| 83159B | Instrument relay assembly | 83159-22170 |
| 83181A | speedometer sensor | 83181-12020 · 83181-12040 |
| 83243A | Fuel gauge sub-assembly | 83243-02020 · 83243-02021 · 83243-02030 · 83243-02031 · 83243-02040 · 83243-02041 · 83243-02042 · 83243-02051 · 83243-02052 · 83882-02040 |
| 83244 | Water temperature meter sub-assembly | 83244-02020 · 83244-02030 |
| 83247 | Instrument circuit board | 83247-02020 · 83247-02030 · 83861-02040 |
| 83270 | Engine tachometer assembly | 83242-02020 · 83242-02030 · 83242-02060 · 83242-02070 |
| 83910 | clock assembly | 83910-02030 |
