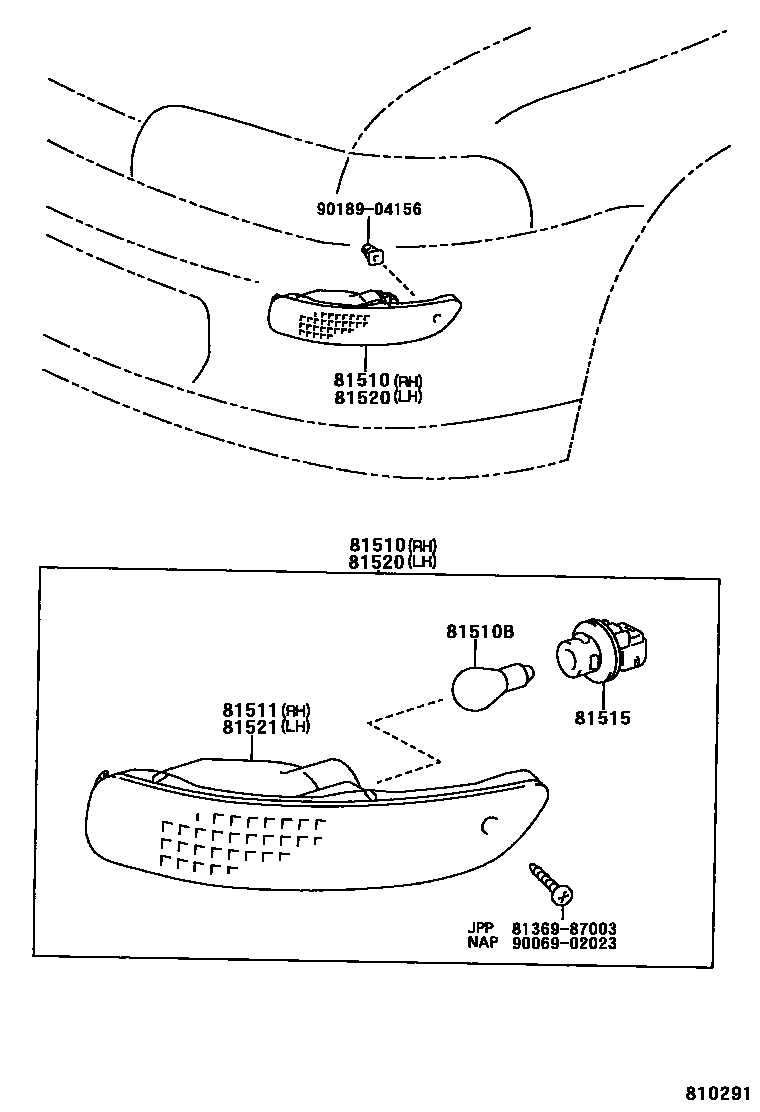

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-02030 |
| 81510B | Bulb (for front turn signal lamp) | 90081-81004 |
| 81511 | Right front turn signal lamp cover | 81511-02020 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 81945-02020 |
| 81520 | Left front turn signal lamp assembly | 81520-02030 |
| 81521 | Left front turn signal lamp cover | 81521-02020 |
