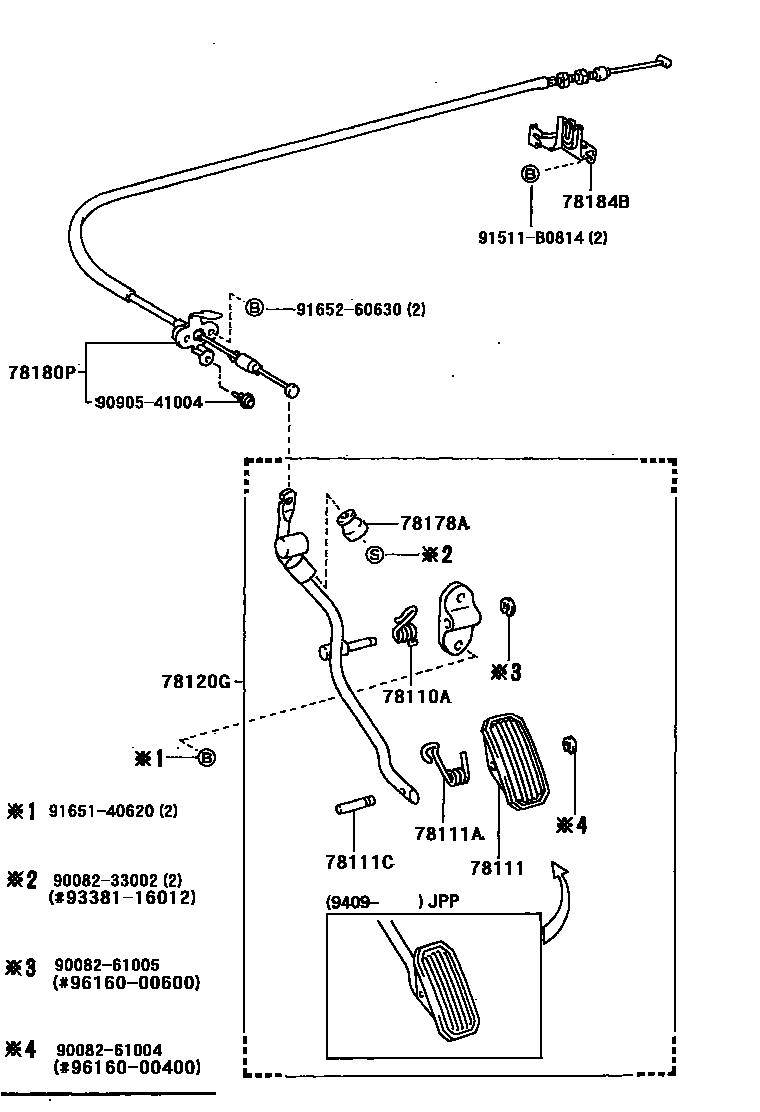

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90080-50027 · 90080-50028 |
| 78111 | accelerator pedal | 78111-01020 |
| 78111A | Spring (for gas pedal) | 90080-50029 |
| 78111C | pin (for gas pedal) | 90080-24008 |
| 78120G | Accelerator pedal lever assembly | 78120-02020 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-01030 |
| 78180P | Accelerator pedal control cable assembly | 78180-02030 |
| 78184B | Throttle pedal control cable bracket | 78024-12040 · 78024-12041 |
