Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 15 PNC and OE references.

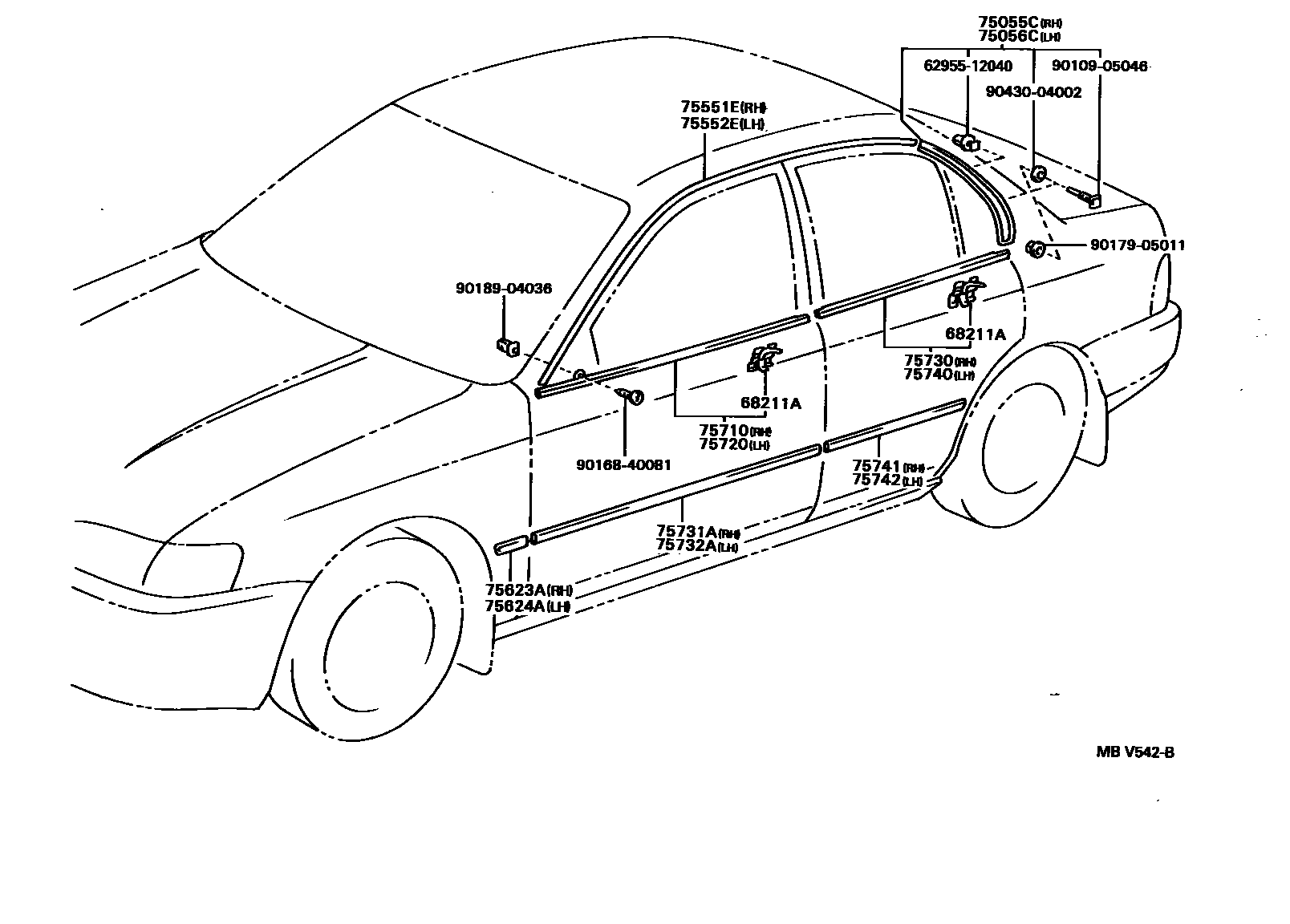

Toyota COROLLA 侧防护条 EPC diagram — MBV542B
侧防护条 — MBV542B (199209 – 999999)

PNC and OE references

PNCPart nameOE numbers
68211ADoor belt line protection strip clip68211-12190
75055CRoof right rear gutter side decorative strip sub-assembly75055-12120
75056CRoof left rear gutter side decorative strip sub-assembly75056-12120
75551EDrainage groove side decorative strip on the right side of the roof75551-02040
75552EDrainage groove side decorative strip on the left side of the roof75552-02040
75623ARight front fender outer rear protective strip75623-02060
75624ALeft front fender outer rear protective strip75624-02060
75710Right front door waistline protection strip assembly75710-02040
75720Left front door waistline protection strip assembly75720-02040
75730Right rear door waistline protection strip assembly75730-02030
75731ARight front door outer protective strip75731-02060
75732ALeft front door outer protective strip75732-02060
75740Left rear door waistline protection strip assembly75740-02030
75741Right rear door outer protective strip75741-02030
75742Left rear door outer protective strip75742-02030
