Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

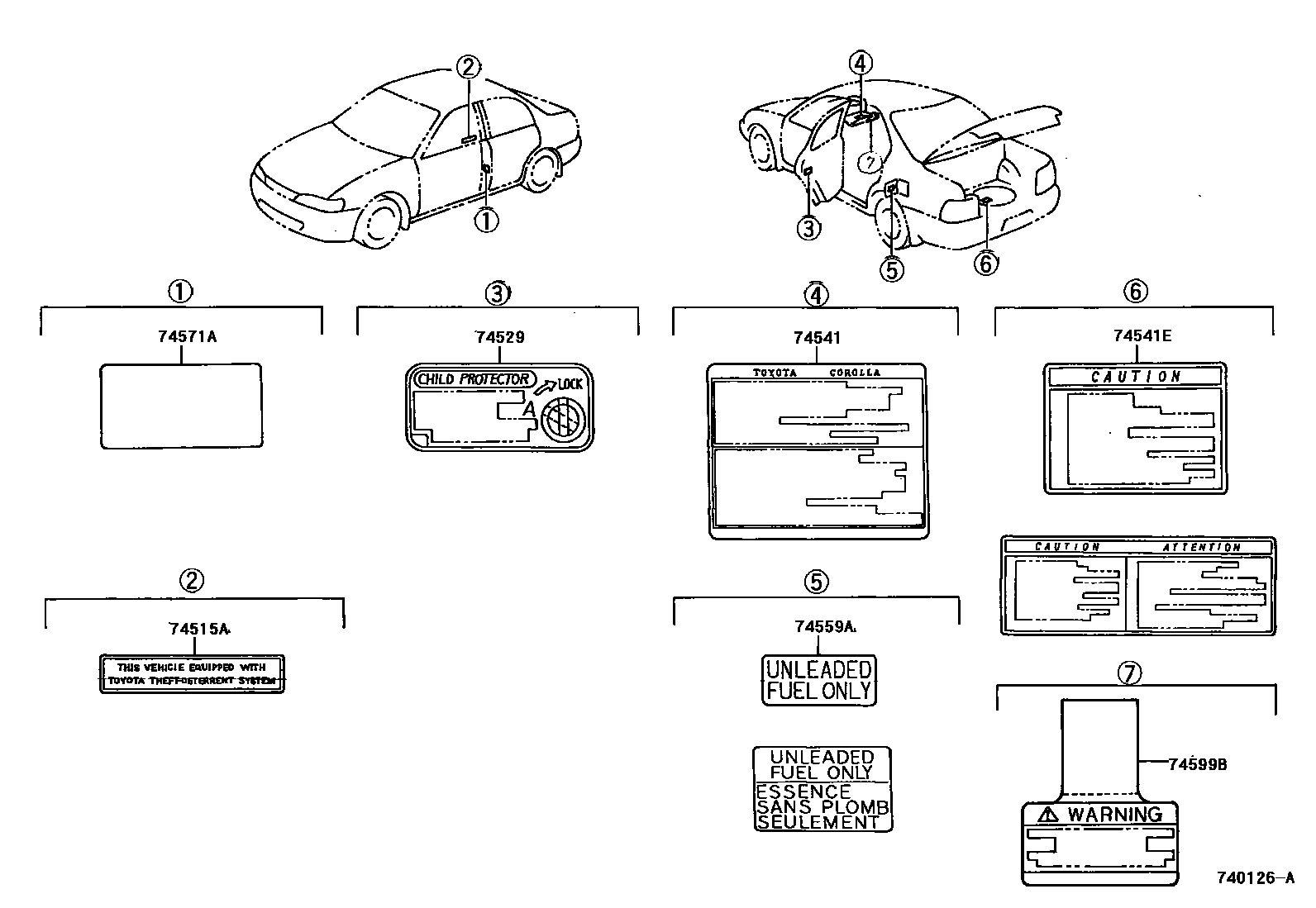

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-06010 · 69349-06010 |
| 74541 | tire pressure warning plate | 42661-02050 · 42661-02051 · 42661-02060 · 42661-02061 · 42661-02110 · 42661-02111 |
| 74541E | Small spare tire warning plate | 42668-02020 · 42668-02030 |
| 74559A | Fuel warning plate | 74559-01010 · 74559-01020 |
| 74571A | Label cover protective film | 74571-32010 |
| 74599B | Driver and passenger air bag information labels | 74599-06010 · 74599-50010 |
