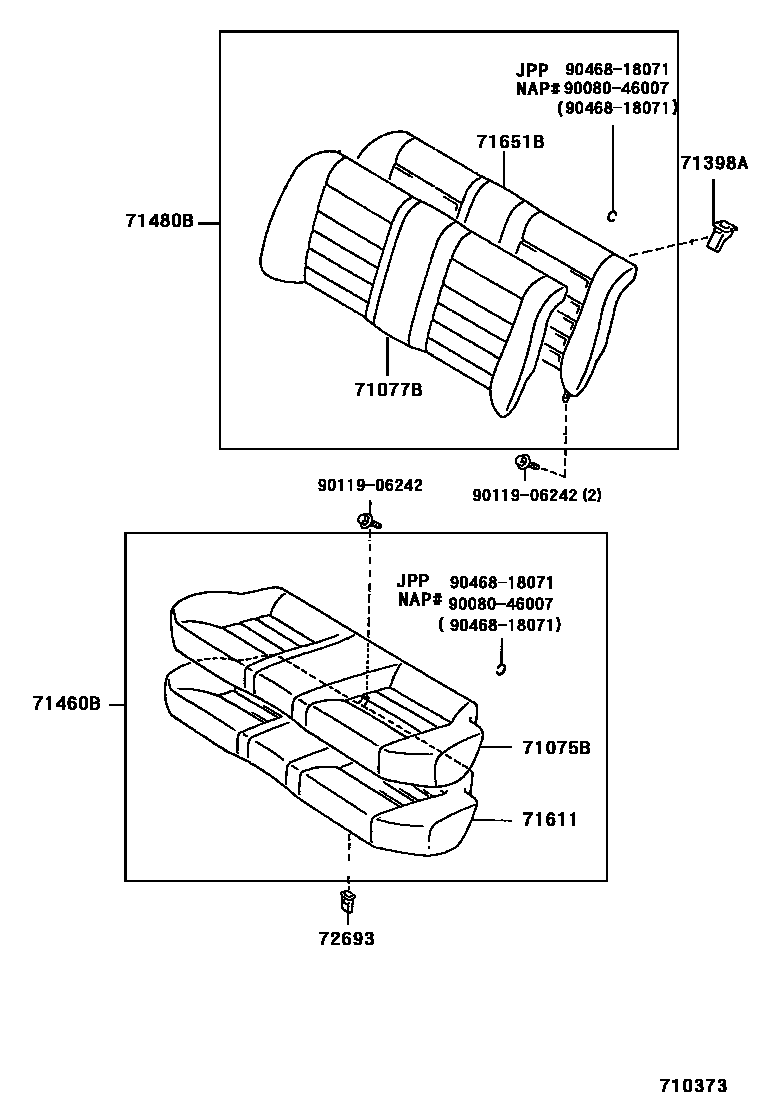

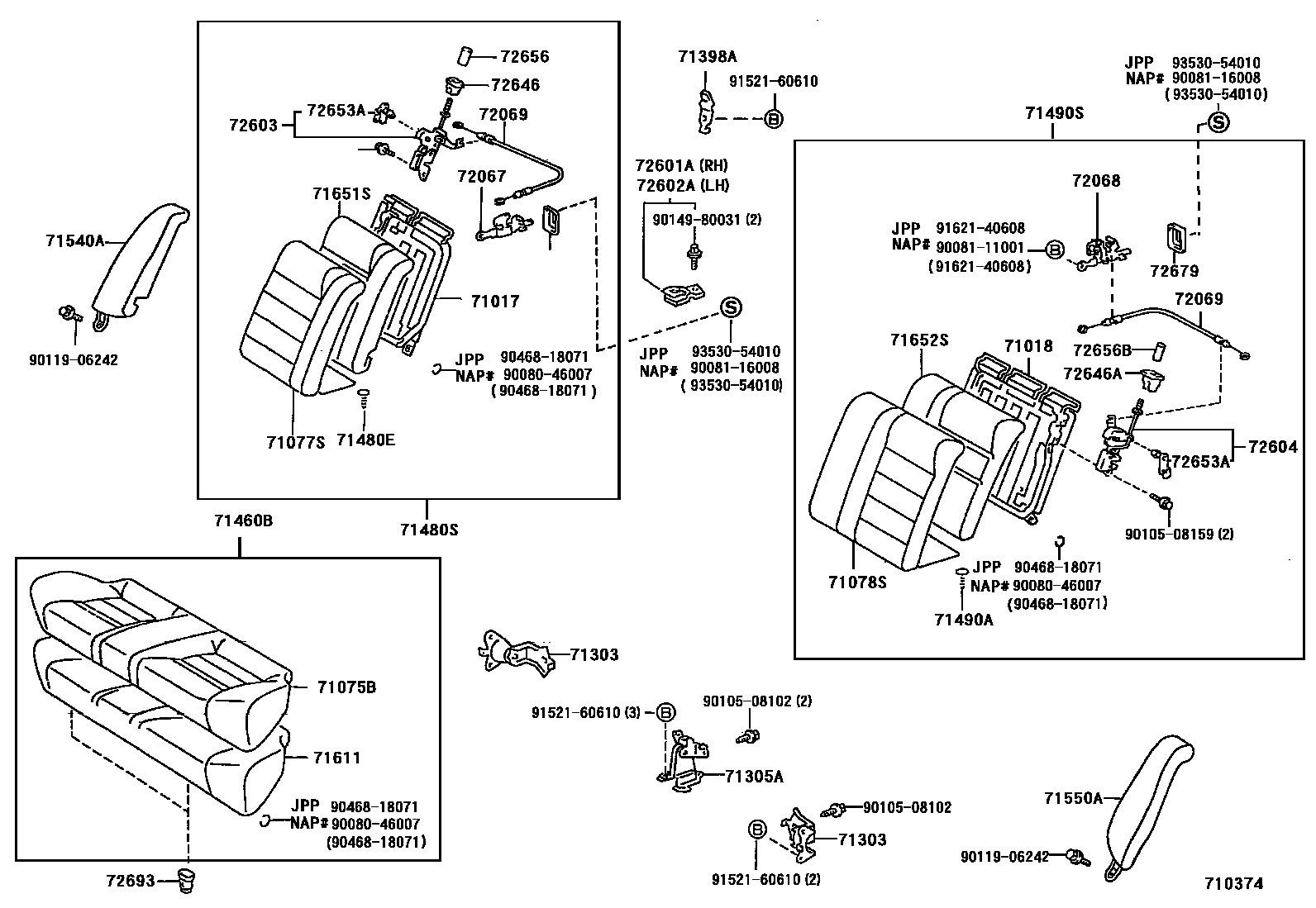

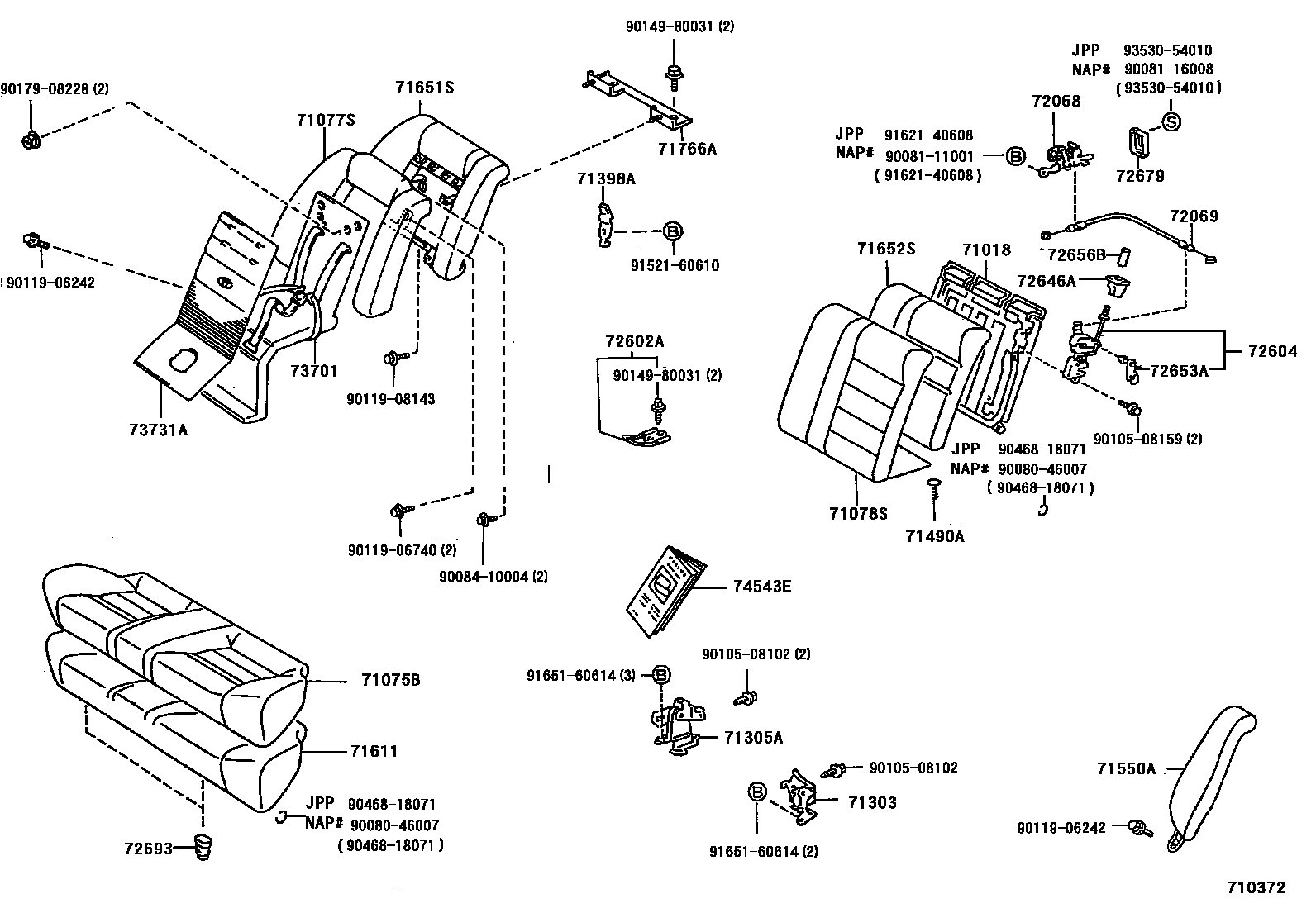

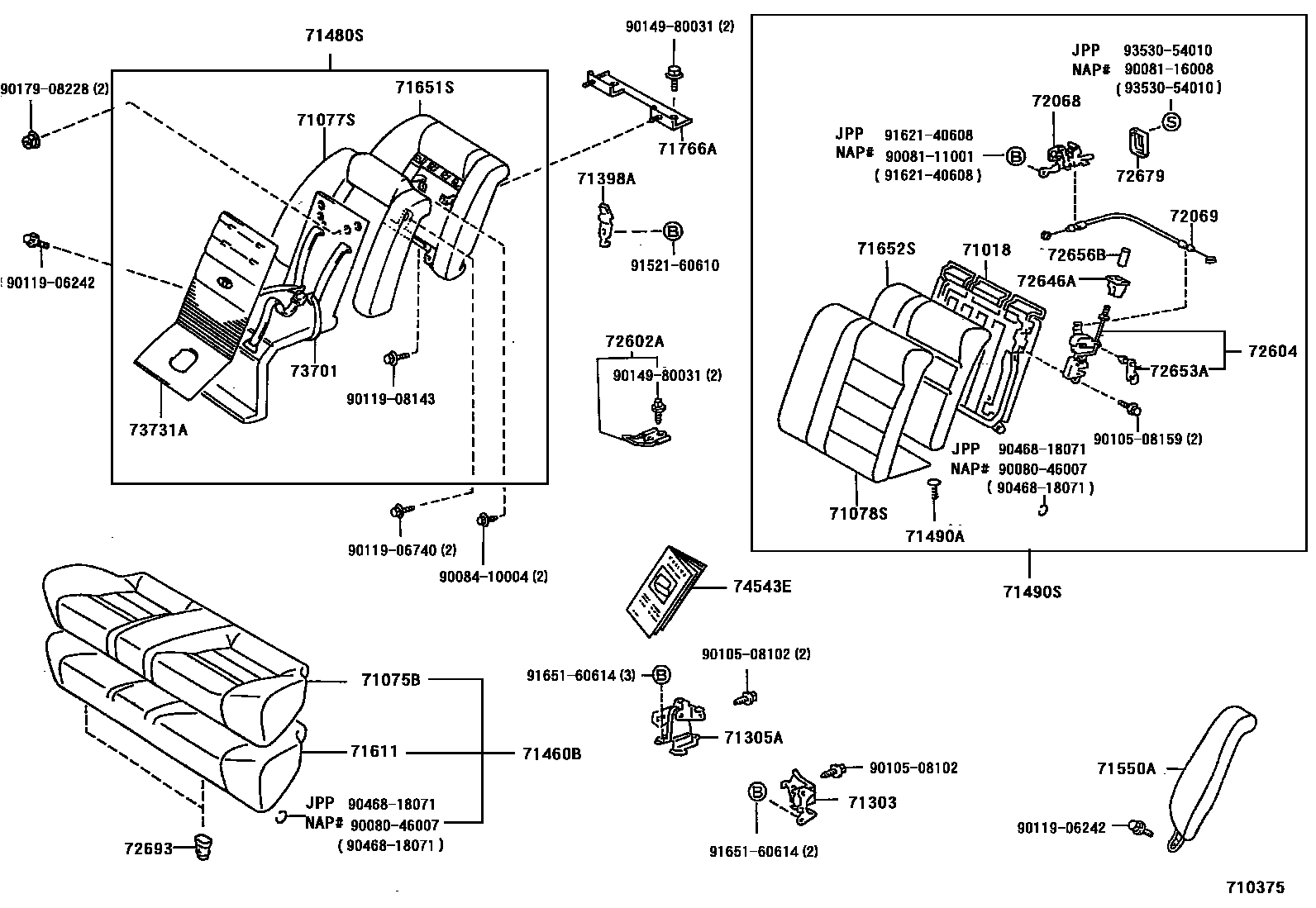

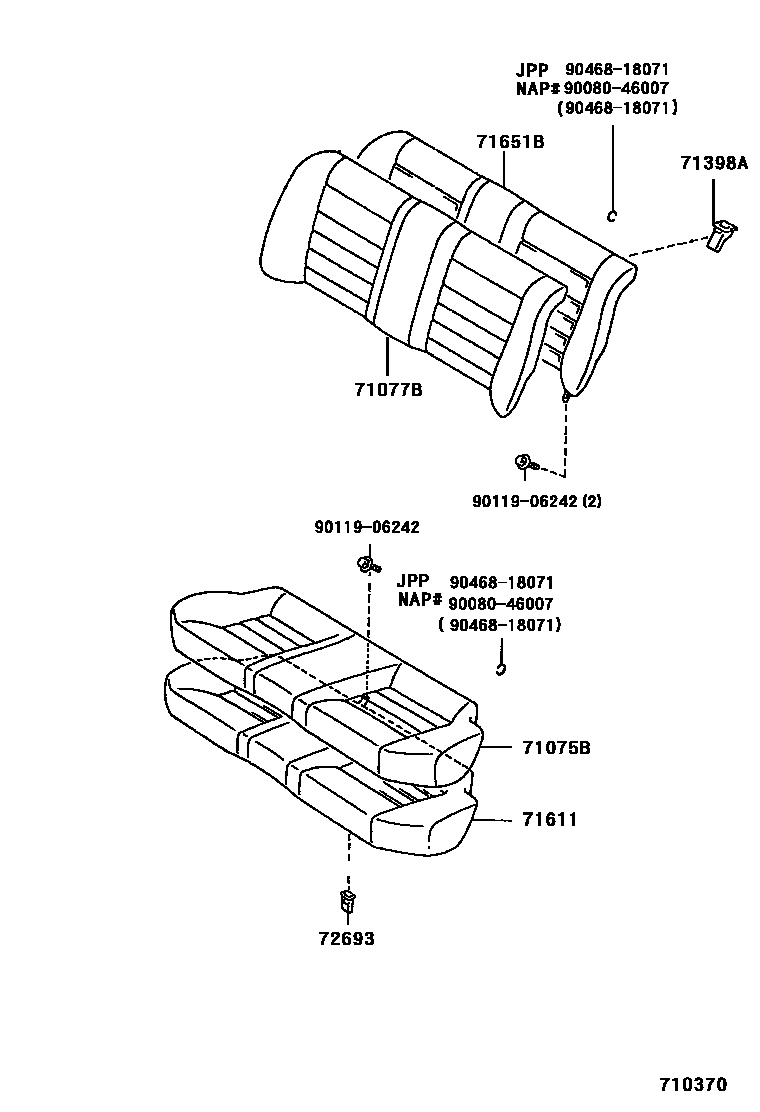

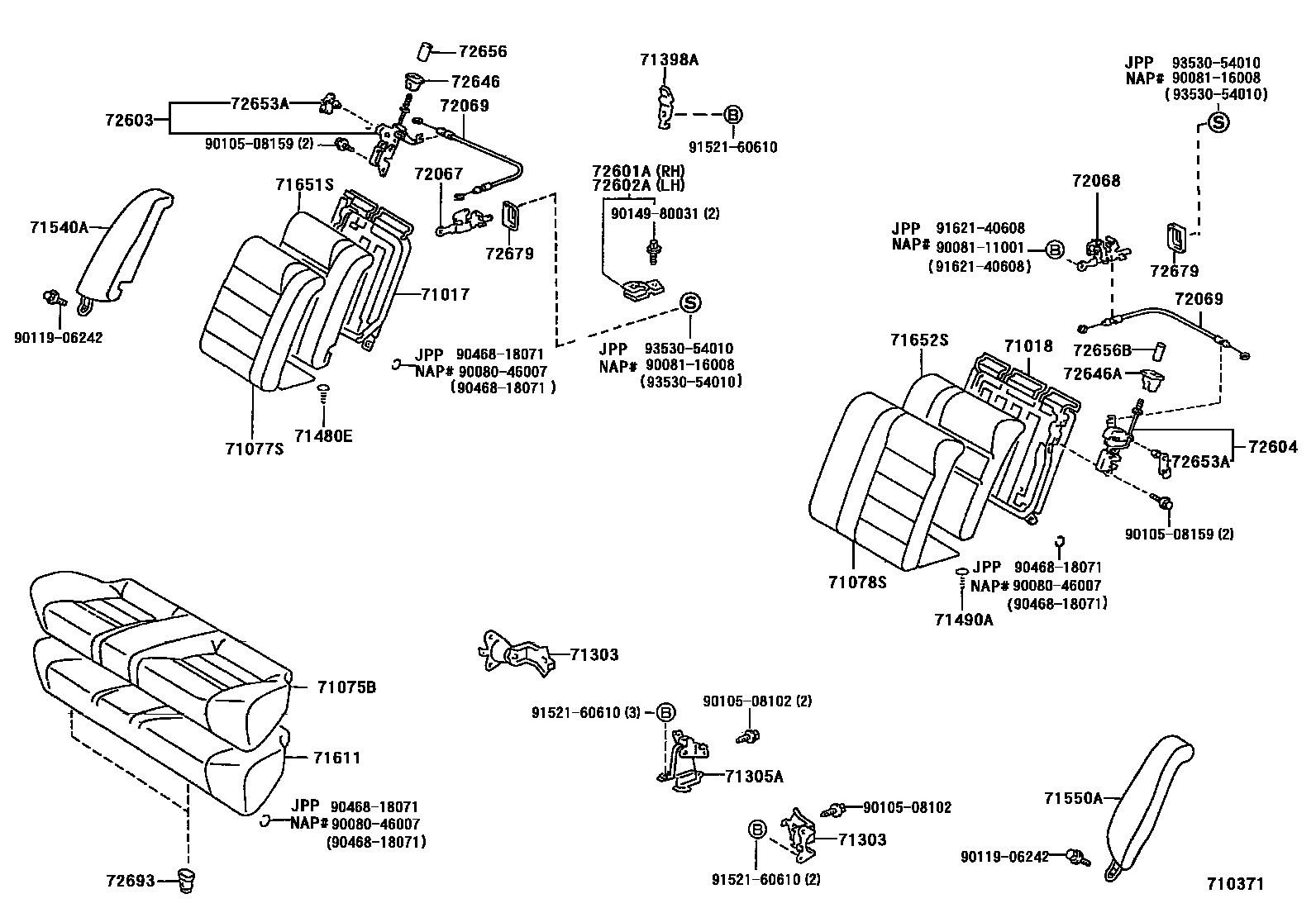

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02030 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02020 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12110 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12110 · 71305-12140 |
| 71398A | Rear seat back retainer | 71398-02020 · 71398-12030 |
| 71611 | Rear seat cushion cushion | 71503-02010 · 71503-02020 · 71503-02030 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02010 |
| 71651S | Rear right seat back cushion (for split seats) | 71507-02020 · 71651-02020 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02030 |
| 71766A | Side seat rear bracket | 71766-02010 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-12010 · 72067-16020 · 72067-16021 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-12010 · 72068-16020 · 72068-16021 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-20040 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12110 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12110 |
| 72603 | Rear right seat back lock sub-assembly | 72603-12030 |
| 72604 | Rear left seat back lock sub-assembly | 72604-12050 |
| 72653A | Rear seat back lock lever buckle | 69759-24010 · 69759-24020 |
| 72693 | Rear seat cushion hook | 72693-32020 |
| 73731A | Child restraint seat cover | 73731-02010 |
| 74543E | Child Restraint Seat Information Label | 74543-02020 · 74543-02021 |
