Toyota COROLLA 后门板和后门玻璃 — Figure 6705

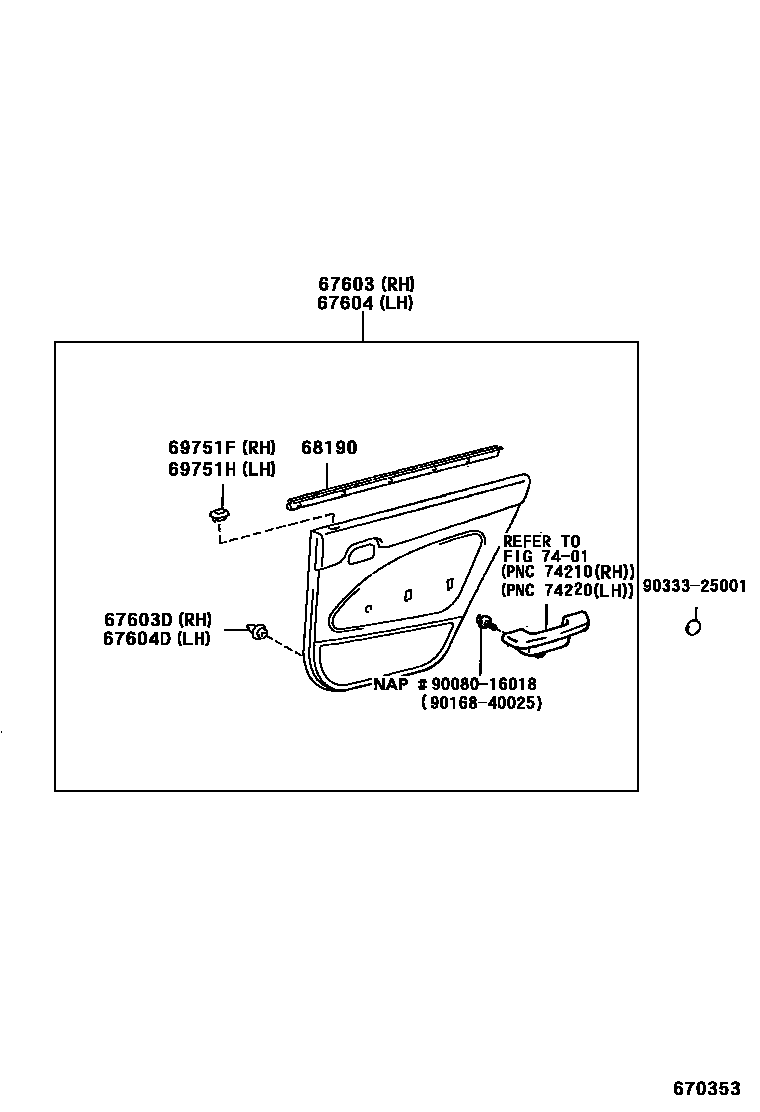

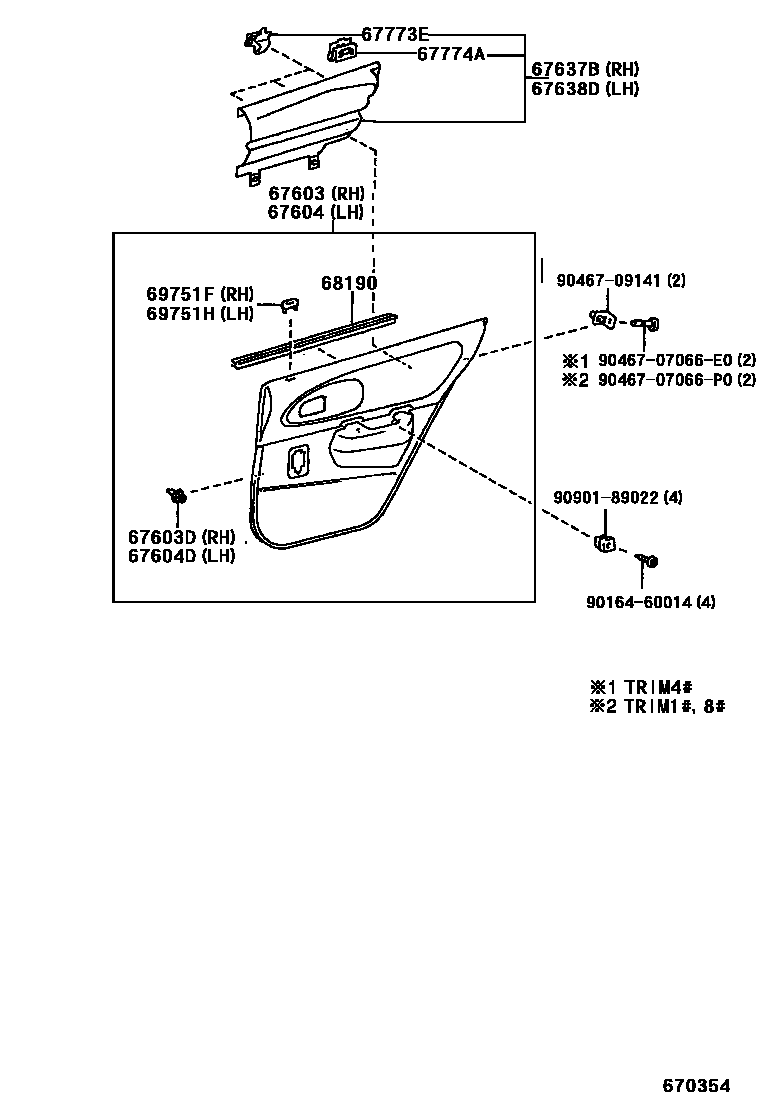

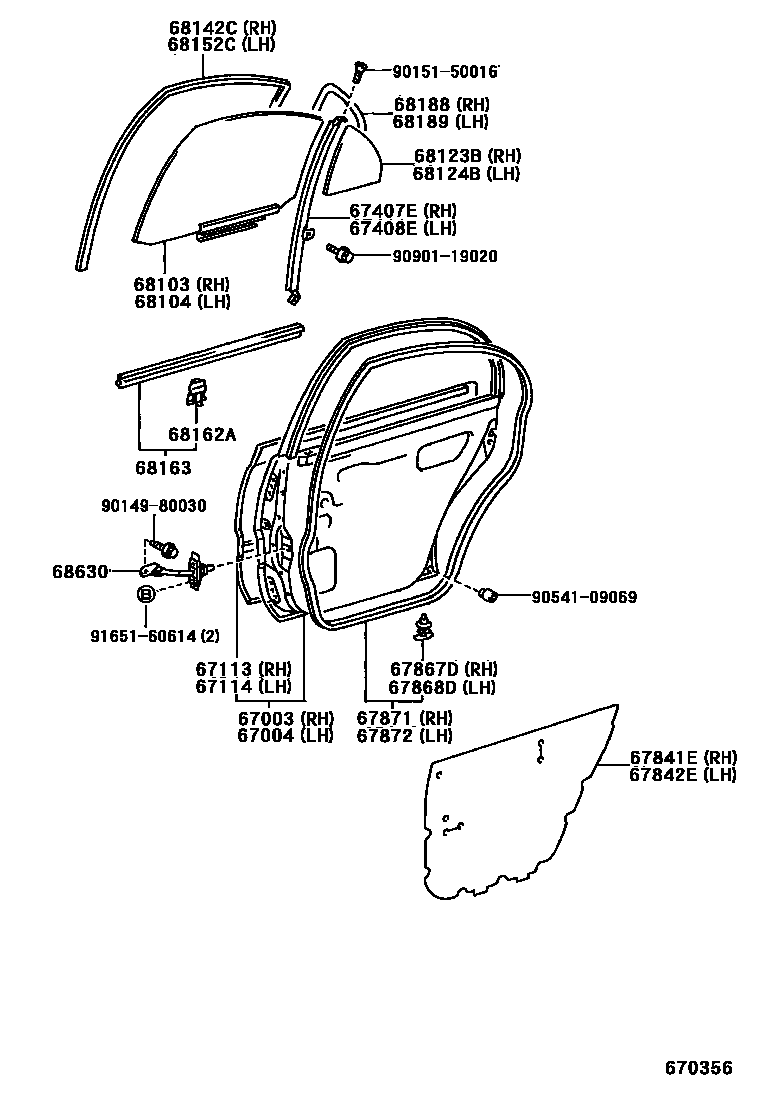

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02030 · 67003-02040 · 67003-02050 · 67003-02060 · 67003-02070 · 67003-02090 · 67003-02100 |
| 67004 | Left rear door panel sub-assembly | 67004-02030 · 67004-02040 · 67004-02050 · 67004-02060 · 67004-02070 · 67004-02090 · 67004-02100 |
| 67113 | Right rear door outer panel | 67113-02020 · 67113-02030 |
| 67114 | Left rear door outer panel | 67114-02020 · 67114-02030 |
| 67407E | Right rear door window divider sub-assembly | 67407-12150 |
| 67408E | Left rear door window divider sub-assembly | 67408-12150 |
| 67603D | Right rear door trim panel fixing | 67771-02030 |
| 67604D | Left rear door trim panel fixing | 67771-02030 |
| 67637B | Right rear door decorative panel reinforcement | 67637-12050 |
| 67638D | Left rear door decorative panel reinforcement | 67638-12070 |
| 67773E | Door No. 3 decorative panel fixing clip | 67773-12020 · 67773-12040 |
| 67774A | Rear door No. 2 decorative panel fixing clip | 67774-12010 |
| 67841E | Right rear door access hole cover | 67841-02010 · 67841-02020 · 67841-12250 |
| 67842E | Left rear door access hole cover | 67841-02010 · 67841-02020 · 67841-12250 |
| 67867D | Right rear door seal strip fixing | 67868-01020 · 67868-04020 |
| 67868D | Left rear door seal strip fixing | 67868-01020 · 67868-04020 |
| 67871 | Right rear door sealing strip | 67871-02030 |
| 67872 | Left rear door sealing strip | 67872-02030 |
| 68103 | Right rear door glass sub-assembly | 68103-02030 |
| 68104 | Left rear door glass sub-assembly | 68104-02030 |
| 68123B | Right rear door corner window glass | 68123-02030 |
| 68124B | Left rear door corner window glass | 68124-02030 |
| 68142C | Right rear door glass lift slot | 68142-02020 |
| 68152C | Left rear door glass lift slot | 68152-02020 |
| 68162A | Catch (for rear door glass outer sealing strip) | 68211-12160 |
| 68163 | Rear door glass outer seal strip | 68163-12090 · 68164-12050 |
| 68188 | Right rear door corner window seal | 68188-02010 · 68188-12240 |
| 68189 | Left rear door corner window seal | 68189-02010 · 68189-12210 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-02020 · 68173-02040 · 68173-12050 · 68174-02010 |
| 68630 | Rear door opening limiter assembly | 68630-02010 · 68630-02011 · 68640-02010 · 68640-02011 |
