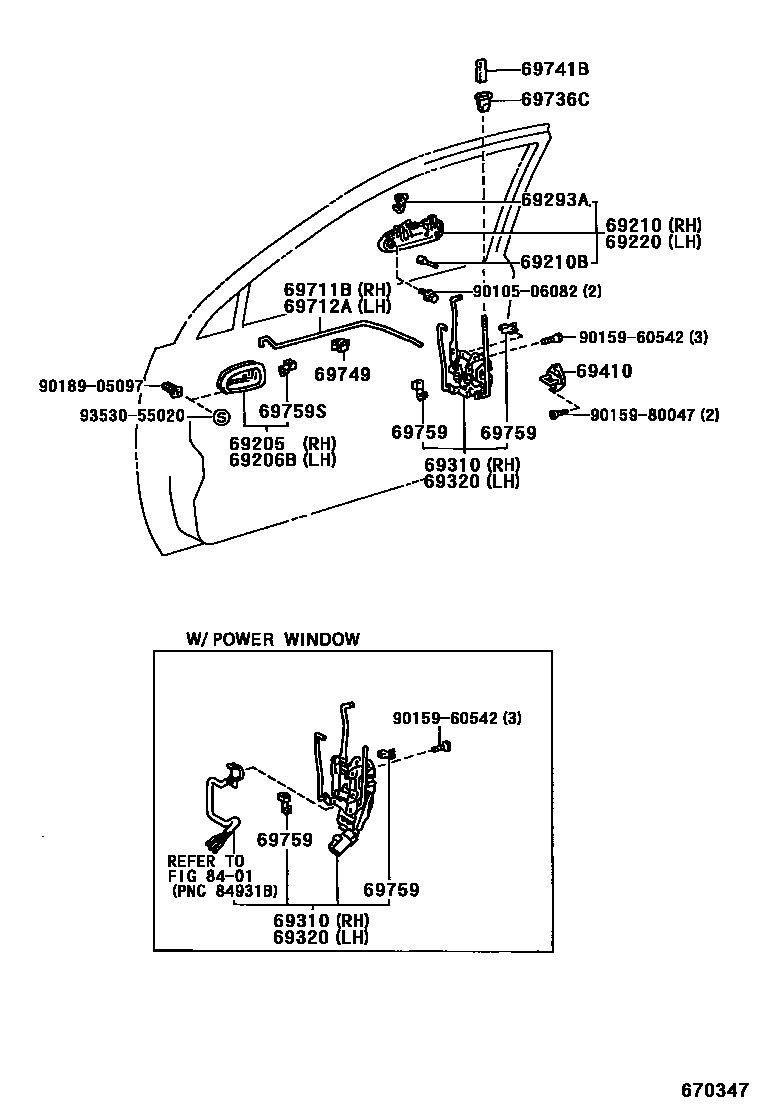

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-02010 · 69210-12180 |
| 69210B | Cushion pad (for front door outer handle) | 90080-54005 · 90541-04014 · 90541-04018 |
| 69220 | Left front door outer handle assembly | 69220-02010 · 69220-12210 |
| 69293A | Front door outer handle buckle | 69293-01050 · 69293-01060 · 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-02020 · 69030-02021 · 69030-02030 · 69310-02030 |
| 69320 | Left front door lock assembly | 69040-02020 · 69040-02021 · 69040-02030 · 69320-02030 |
| 69410 | Front door lock plate assembly | 69410-02010 · 69410-02011 |
| 69711B | Right front door lock remote control lever | 69711-02020 |
| 69712A | Left front door lock remote control lever | 69712-02020 |
| 69736C | Front door locking link guide block | 69736-01010 |
| 69749 | Front door lock link clip | 69749-12070 · 69749-50020 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20080 · 69759-20090 |
| 69759S | Front door inner handle buckle | 69759-01030 · 69759-01040 · 69759-22040 · 69759-22050 |
