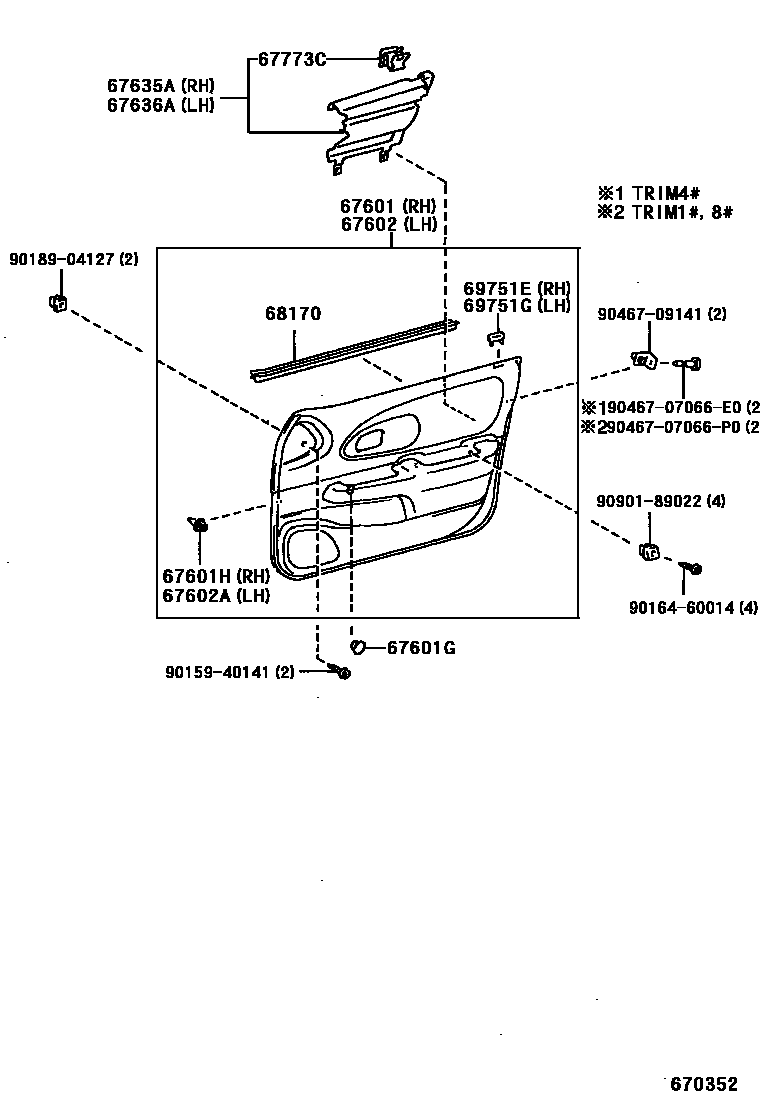

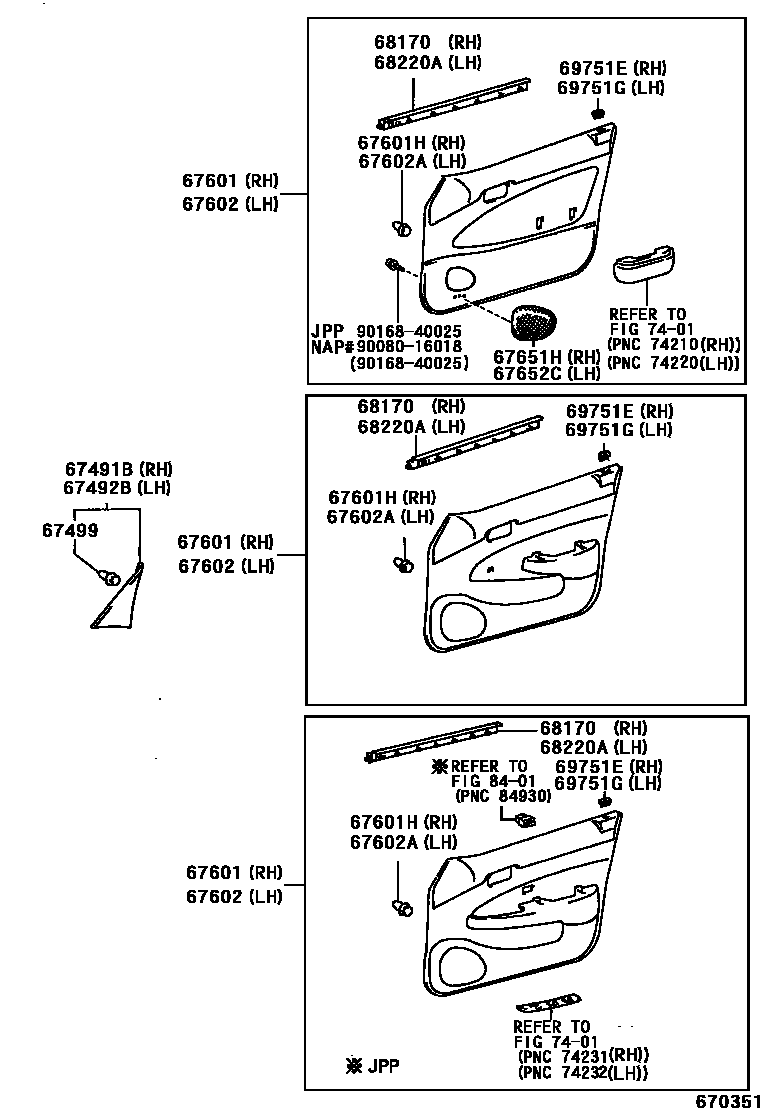

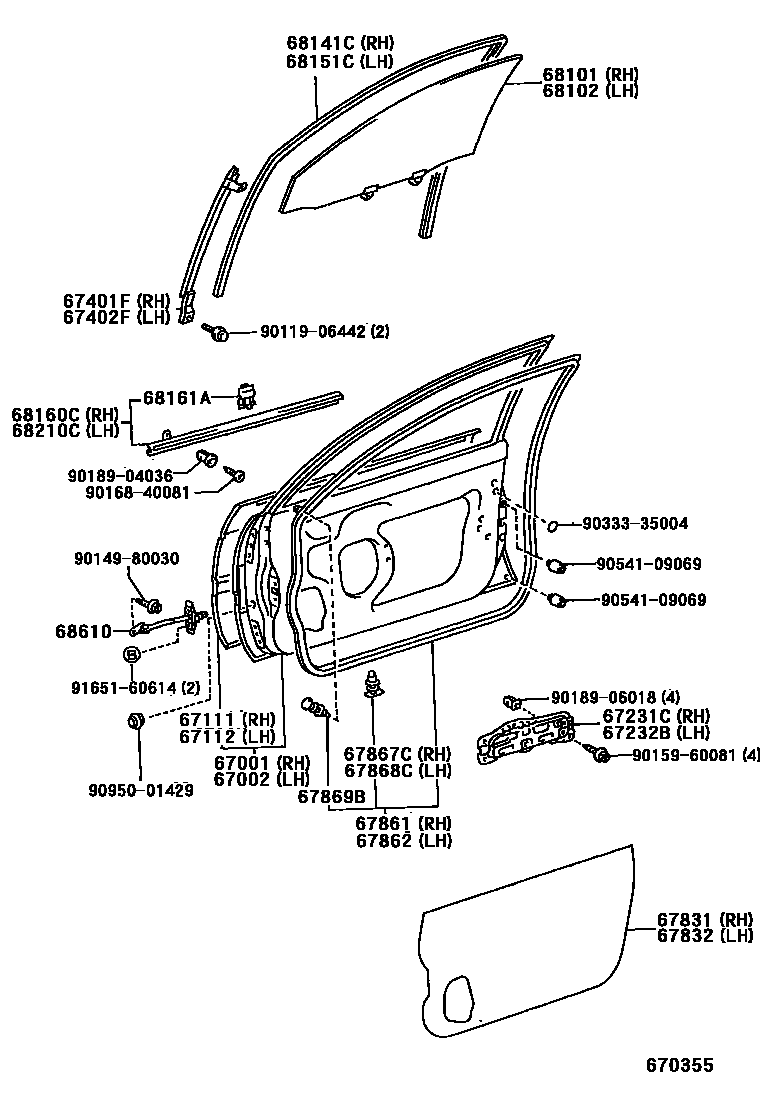

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02070 · 67001-02080 · 67001-02090 · 67001-02100 |
| 67002 | Left front door panel sub-assembly | 67002-02070 · 67002-02080 · 67002-02090 · 67002-02100 |
| 67111 | Outer right front door panel | 67111-02030 · 67111-02040 |
| 67112 | Outer left front door panel | 67112-02030 · 67112-02040 |
| 67231C | Right door trim panel bracket | 67231-12010 · 67231-12050 |
| 67232B | Left door trim panel bracket | 67232-12010 · 67232-12050 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12320 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12340 |
| 67491B | Right front door window upper bracket decorative strip | 67491-02050 · 67491-02060 |
| 67492B | Left front door window upper bracket decorative strip | 67492-02050 · 67492-02060 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-06030 |
| 67601H | Right door trim panel fixing | 67771-02030 |
| 67602A | Left door trim panel fixing | 67771-02030 |
| 67635A | Right front door trim panel reinforcement | 67635-12060 |
| 67636A | Left front door decorative panel reinforcement | 67636-12050 |
| 67773C | Door No. 1 decorative panel fixing clip | 67773-12020 |
| 67831 | Right front door access hole cover | 67831-02020 · 67831-02030 · 67831-02040 · 67831-02050 · 67831-12470 · 67831-12480 |
| 67832 | Left front door access hole cover | 67832-02020 · 67832-02030 · 67832-02040 · 67832-02050 · 67832-12270 · 67832-12280 |
| 67861 | Right front door seal | 67861-02060 |
| 67862 | Left front door seal | 67862-02060 |
| 67867C | Right front door seal strip fixing | 67868-01020 · 67868-04020 |
| 67868C | Left front door seal strip fixing | 67868-01020 · 67868-04020 |
| 67869B | Front door seal strip clip | 67869-02010 |
| 68101 | Right front door glass sub-assembly | 68101-02040 |
| 68102 | Left front door glass sub-assembly | 68102-02040 |
| 68141C | Right front door glass lift channel | 68141-02030 |
| 68151C | Left front door glass lift channel | 68151-02020 |
| 68160C | Right front door glass outer sealing strip assembly | 68161-12190 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12160 |
| 68170 | Front door glass inner sealing strip assembly | 68171-02030 · 68171-02050 · 68171-12160 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-12130 |
| 68220A | Left front door glass inner sealing strip assembly | 68172-02020 · 68172-02040 · 68172-12050 |
| 68610 | Front door opening limiter assembly | 68610-02010 · 68610-02011 · 68620-02010 · 68620-02011 |
