Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

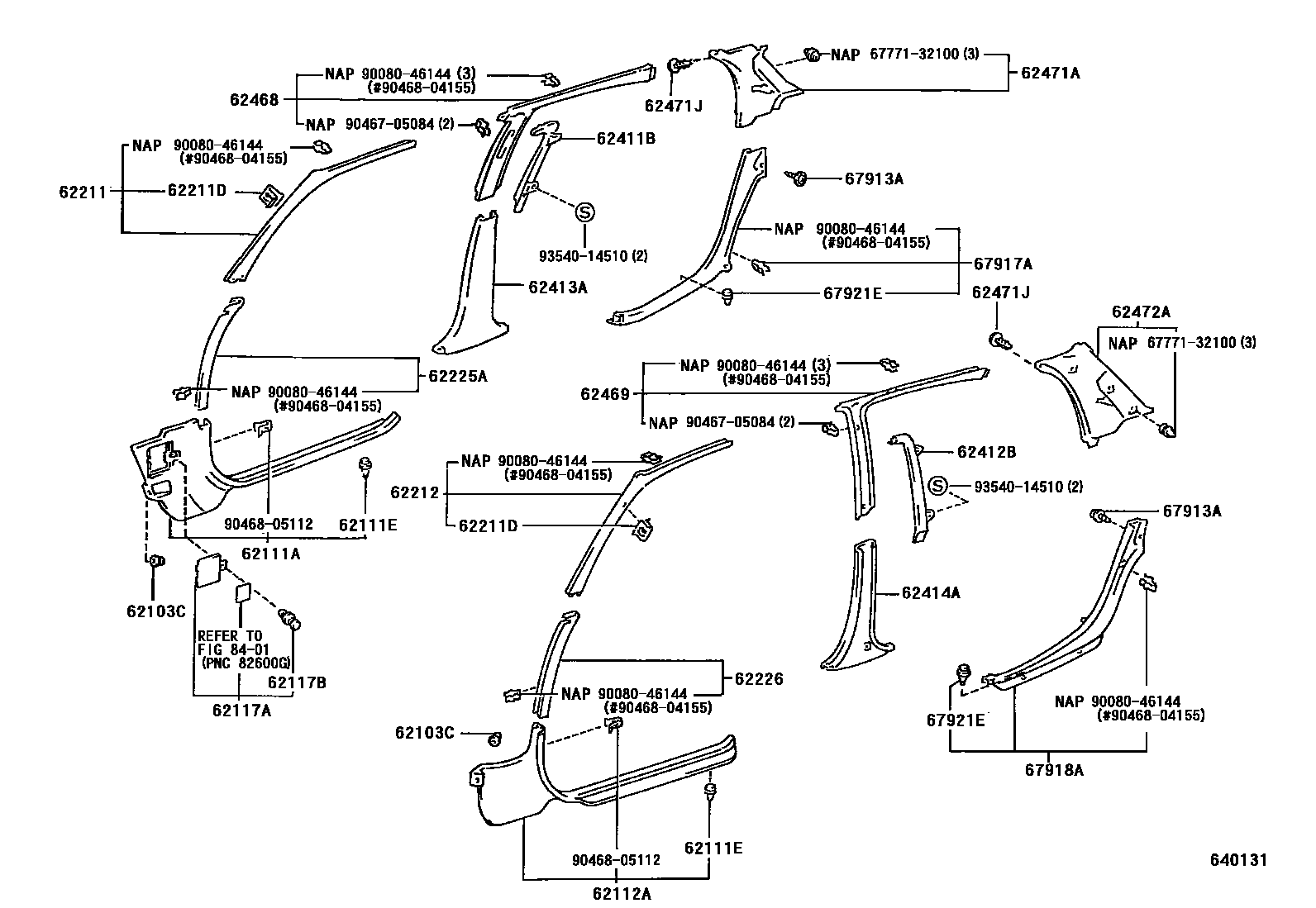

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103C | Front wall side trim panel fixing clips | 90467-05050 |
| 62111E | Front wall side trim panel fixings | 67921-06010 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90080-46145 |
| 62211D | Clip (for body front pillar decorative panel) | 90468-05084 |
| 67921E | Rear door wear plate fixing parts | 67921-06010 |
