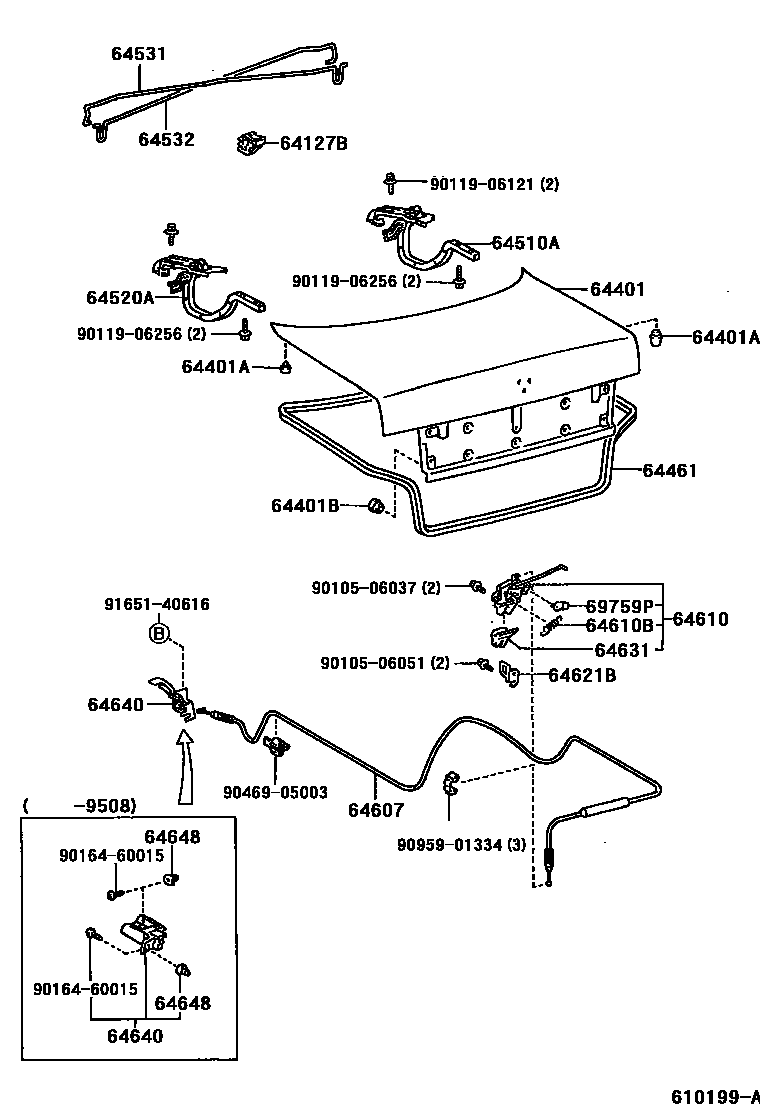

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-12080 |
| 64401 | Trunk door panel sub-assembly | 64401-02050 |
| 64401A | Cushion pad (for luggage compartment door panel) | 64459-12050 · 90541-06056 |
| 64401B | Hole plug (for trunk door panel) | 90950-01820 |
| 64461 | Trunk door seal | 64461-02040 |
| 64510A | Trunk door right hinge assembly | 64510-02010 |
| 64520A | Trunk door left hinge assembly | 64520-02010 |
| 64531 | Trunk door right hinge torsion bar | 64531-02010 · 64531-02020 · 64531-12390 · 64531-12480 |
| 64532 | Trunk door left hinge torsion bar | 64532-02010 · 64532-02020 · 64532-12380 · 64532-12470 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02020 · 64607-02021 |
| 64610 | Trunk door lock assembly | 64610-02030 |
| 64610B | Tension spring (for trunk door lock) | 90080-50097 · 90080-50128 |
| 64621B | Trunk door latch | 64621-01020 |
| 64631 | Trunk door lock protector | 64631-02020 |
| 64640 | Trunk door lock opener assembly | 64606-20091 |
| 64648 | Trunk door lock opener seal | 64648-12010 |
| 69759P | Door lock control link buckle | 69759-03010 |
