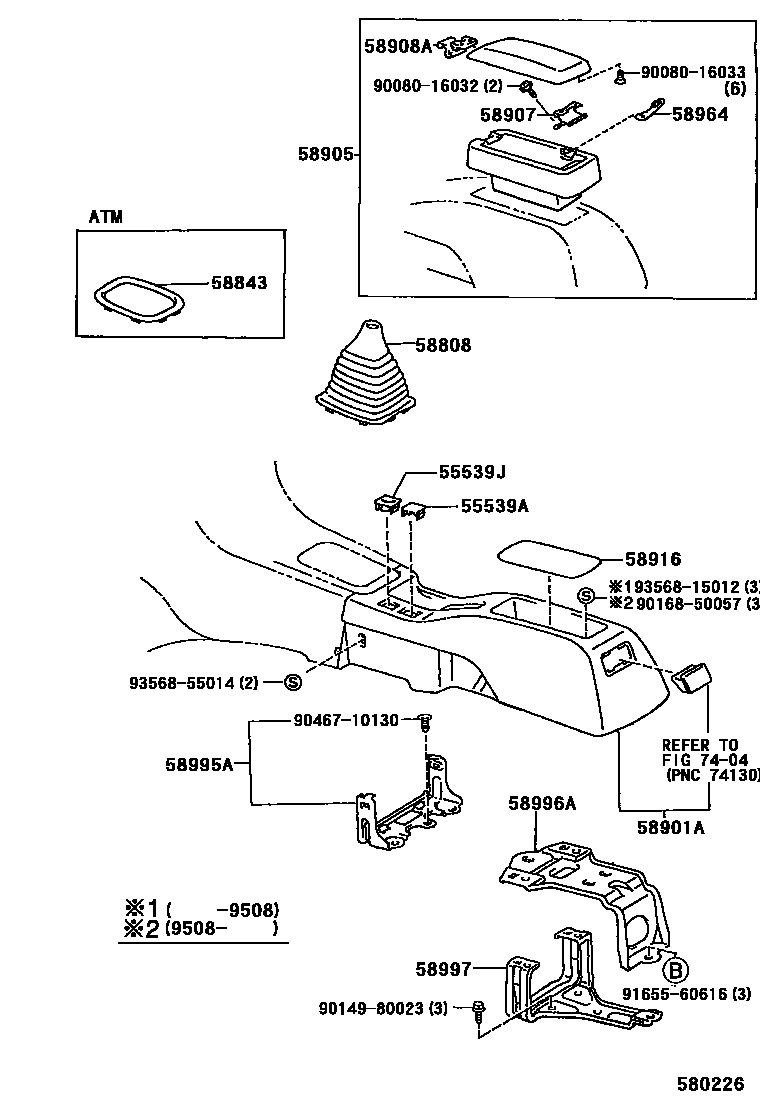

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58907 | Armrest box lid hinge sub-assembly | 58907-01020 |
| 58908A | Armrest box lid lock assembly | 58908-32020 |
| 58916 | Armrest box bottom pad | 58916-01020 |
| 58964 | Armrest box cover No. 1 stop | 58964-01040 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-12080 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02030 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-02010 · 58997-02020 |
