Toyota COROLLA 地板隔热垫 — Figure 5802

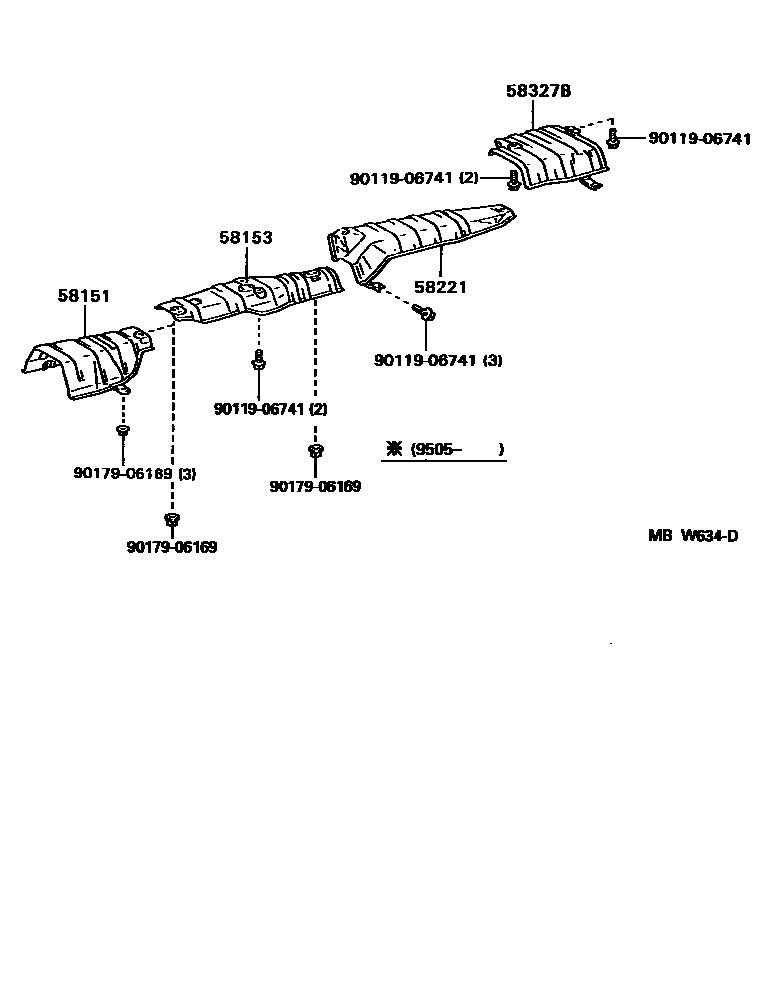

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-02020 |
| 58153 | Front floor insulation mat No. 2 | 58153-02020 |
| 58221 | Central Floor Insulating Mat No. 1 | 58044-02020 |
| 58327B | Main muffler heat insulation pad | 58031-02020 |
