Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

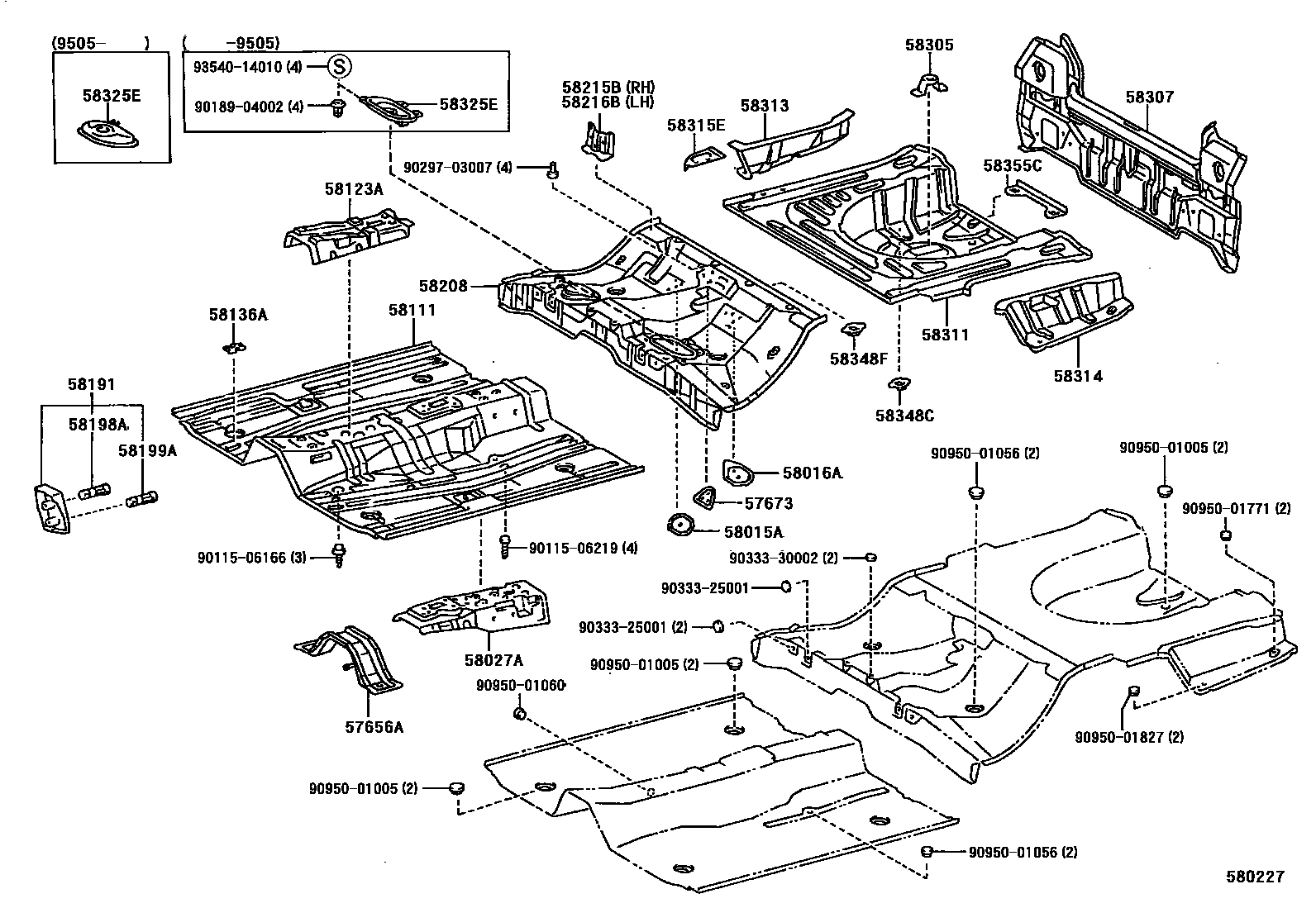

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57656A | No. 1 exhaust pipe mounting bracket | 57656-12060 |
| 57673 | Rear seat back hinge mounting bracket | 57673-12070 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12040 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12150 · 58027-12151 · 58027-12152 · 58027-12153 |
| 58111 | front floor pan | 58111-02020 · 58111-02021 · 58111-02022 |
| 58123A | shift lever bracket | 58013-02010 · 58013-02011 · 58013-02020 · 58013-12020 · 58013-12060 |
| 58136A | Front floor access hole cover | 58136-12020 · 58136-12030 |
| 58191 | Front floor footrest | 58192-02010 |
| 58198A | No. 1 footrest clip | 58198-02010 |
| 58199A | Footrest clip No. 2 | 58198-02010 |
| 58208 | central floor base | 58211-02030 · 58211-02040 |
| 58215B | Rear right seat mounting bracket | 58203-12060 · 58215-12040 · 58215-12041 |
| 58216B | Rear left seat mounting bracket | 58216-12040 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 · 58351-12040 |
| 58307 | Body lower back panel sub-assembly | 58307-02050 |
| 58311 | rear floor pan | 58311-02030 |
| 58313 | Rear floor right panel | 58313-12900 |
| 58314 | rear floor left panel | 58314-12250 |
| 58315E | Rear floor right front side panel extension | 58315-02020 · 58315-12070 |
| 58325E | Rear floor access hole cover | 58325-02010 |
| 58348C | Rear floor insulation pad bracket No. 3 | 58348-12020 |
| 58348F | Central Floor Insulation Mat Bracket No. 3 | 58348-12020 |
| 58355C | Rear bumper arm bracket | 58355-12040 |
