Toyota COROLLA 后保险杠及附件 — Figure 5202

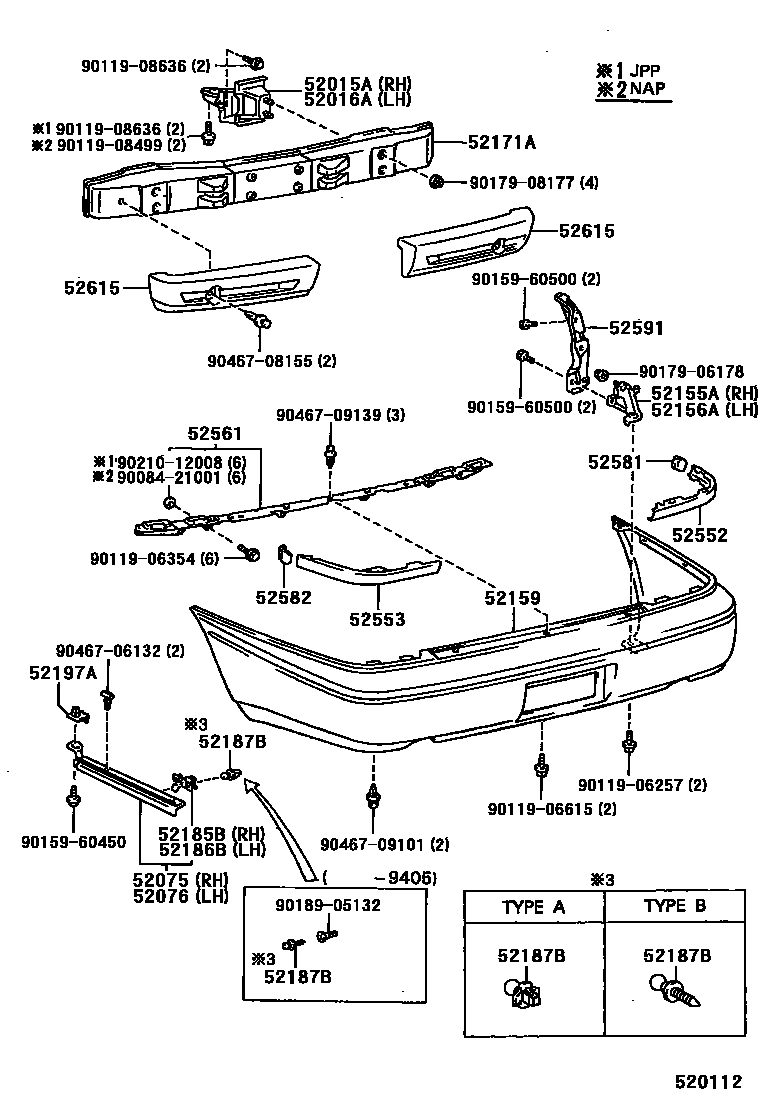

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02020 |
| 52016A | Rear bumper left arm sub-assembly | 52016-02010 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-02030 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-02030 |
| 52155A | Rear bumper right side bracket | 52155-02020 · 52155-12210 · 52155-AB010 |
| 52156A | Rear bumper left bracket | 52156-02020 · 52156-12200 · 52156-AB010 |
| 52159 | rear bumper cover | 52159-02902 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-02010 |
| 52185B | Installation support on the right side of the rear bumper | 52185-12130 · 52185-12200 |
| 52186B | Rear bumper left side mounting support | 52185-12130 · 52185-12200 |
| 52187B | Rear bumper positioning guide rod | 52187-12140 · 52187-12160 |
| 52197A | Rear bumper right seal support | 52197-02010 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-12030 |
| 52553 | Rear bumper left curved filler | 52553-12030 |
| 52561 | Rear bumper upper center fixing bracket | 52561-02020 |
| 52581 | Rear bumper right side protector | 52581-12060 |
| 52582 | Rear bumper left protector | 52581-12060 |
| 52591 | Rear bumper right seal | 52591-02010 |
| 52615 | Rear bumper energy absorber | 52615-02020 · 52616-02010 |
