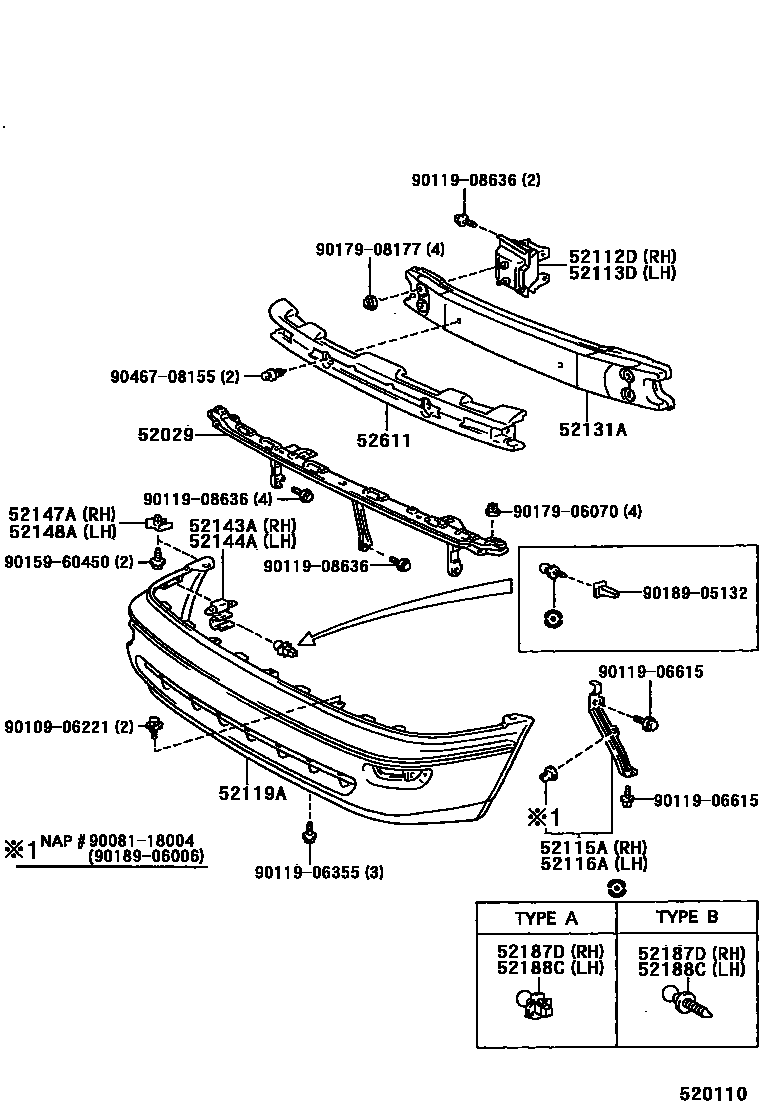

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-02010 |
| 52112D | Front bumper right extension | 52102-02010 |
| 52113D | Front bumper left extension | 52103-02010 |
| 52115A | Front bumper right side bracket | 52115-02030 |
| 52116A | Front bumper left bracket | 52116-02030 |
| 52119A | front bumper cover | 52119-02902 |
| 52131A | Front bumper reinforcement | 52131-02010 |
| 52143A | Front bumper inner right arm | 52143-12300 · 52143-12330 |
| 52144A | Front bumper inner left arm | 52143-12300 · 52143-12330 |
| 52147A | Front bumper stay right side bracket | 52147-02020 |
| 52148A | Front bumper stay left bracket | 52147-02020 |
| 52187D | Front bumper right positioning guide rod | 52148-12130 · 52187-12140 |
| 52188C | Front bumper left positioning guide rod | 52148-12130 · 52187-12140 |
| 52611 | front bumper energy absorber | 52611-02030 |
