Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

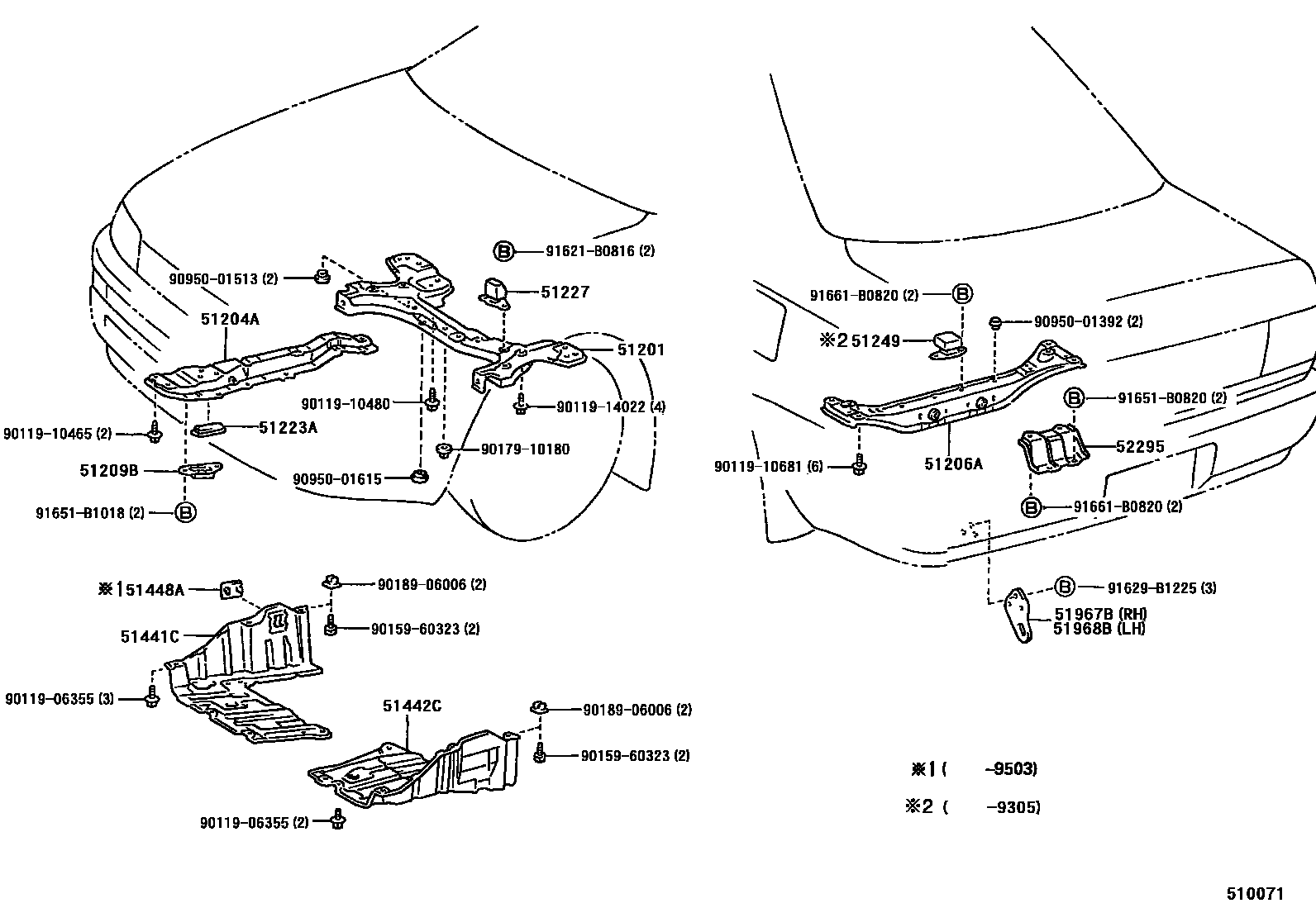

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02030 · 51201-02040 · 51201-02060 · 51201-02061 · 51201-12320 · 51201-12360 · 51201-12380 |
| 51204A | Engine center mount beam sub-assembly | 51204-02010 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02010 · 51206-02011 · 51206-12040 · 51206-12060 |
| 51209B | Center beam front protective cover sub-assembly | 51209-12010 |
| 51223A | Engine mounting hole cover | 51223-12010 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-02010 |
| 51249 | Rear suspension cross member shock absorber | 51249-02010 |
| 51441C | Engine right bottom cover | 51441-02020 |
| 51442C | Engine left bottom cover | 51442-02010 · 51442-02020 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51967B | right rear transport hook | 51967-12220 |
| 51968B | Left rear transport hook | 51968-12110 |
| 52295 | Right rear suspension cross member bracket | 52295-12010 |
