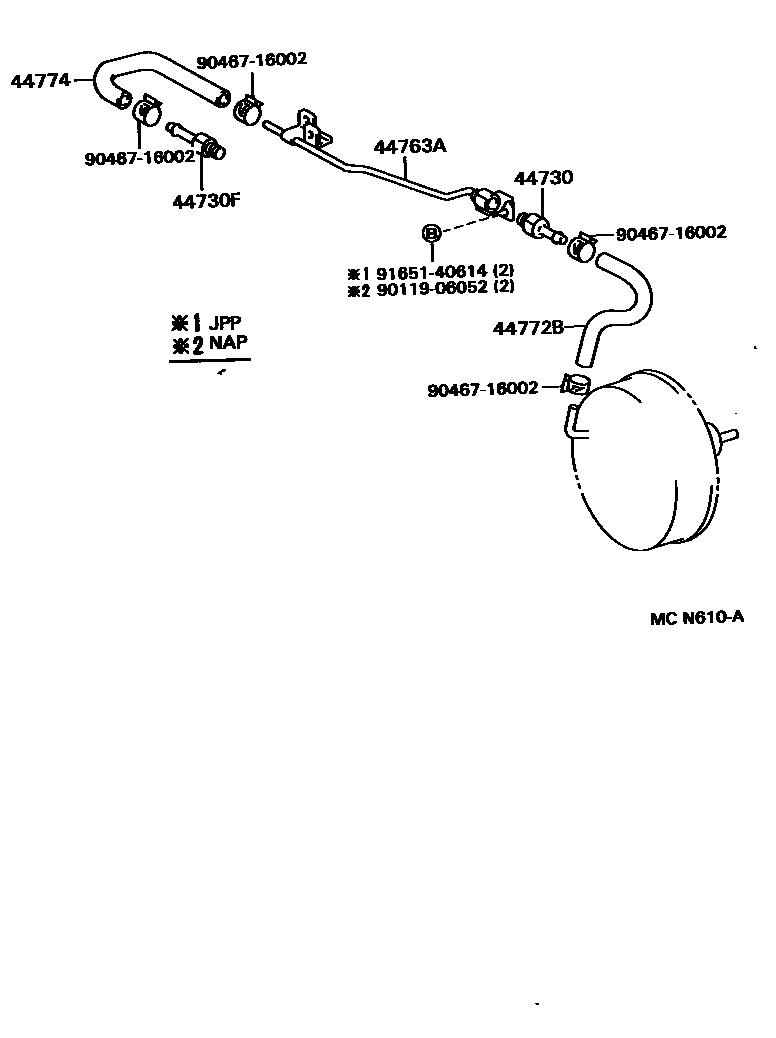

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02010 · 44610-1A560 |
| 44730 | Vacuum check valve assembly (for brake) | 44580-22030 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12300 |
| 44772B | Hoses (check valve to brake booster) | 44772-12440 · 44772-12450 |
| 44774 | Hoses (joints to connector tubes) | 44774-12250 |
| 44785 | brake booster pad | 44785-12010 · 44785-20020 |
