Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

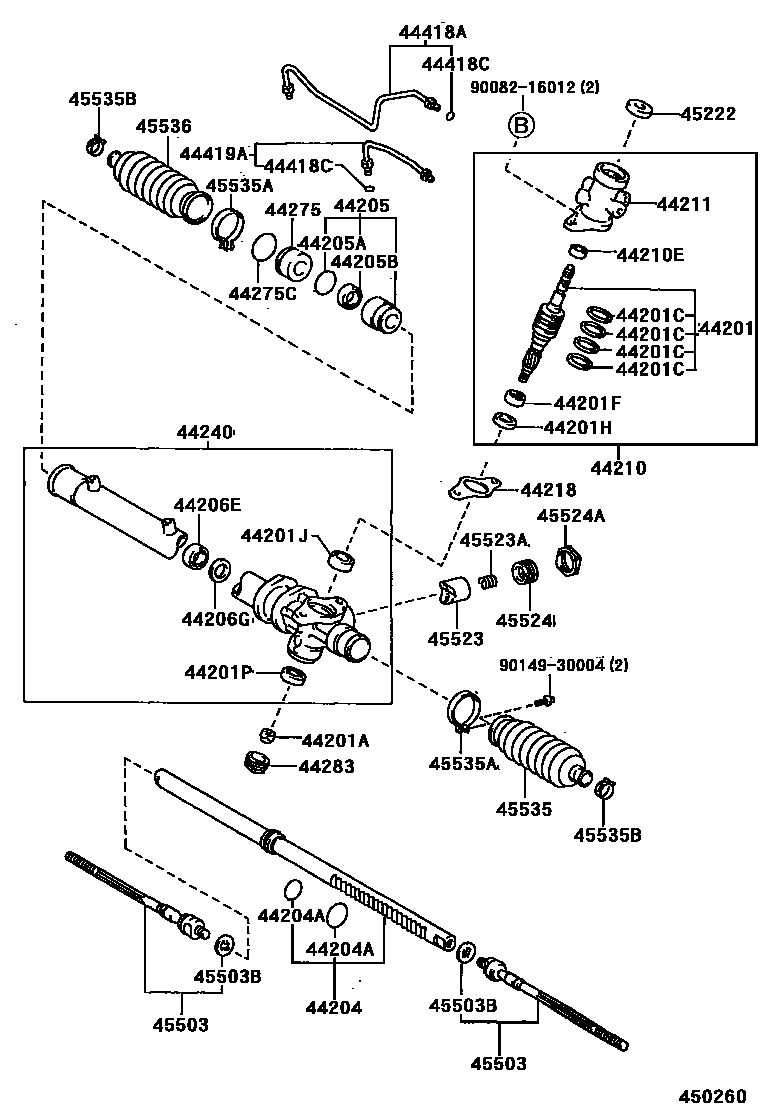

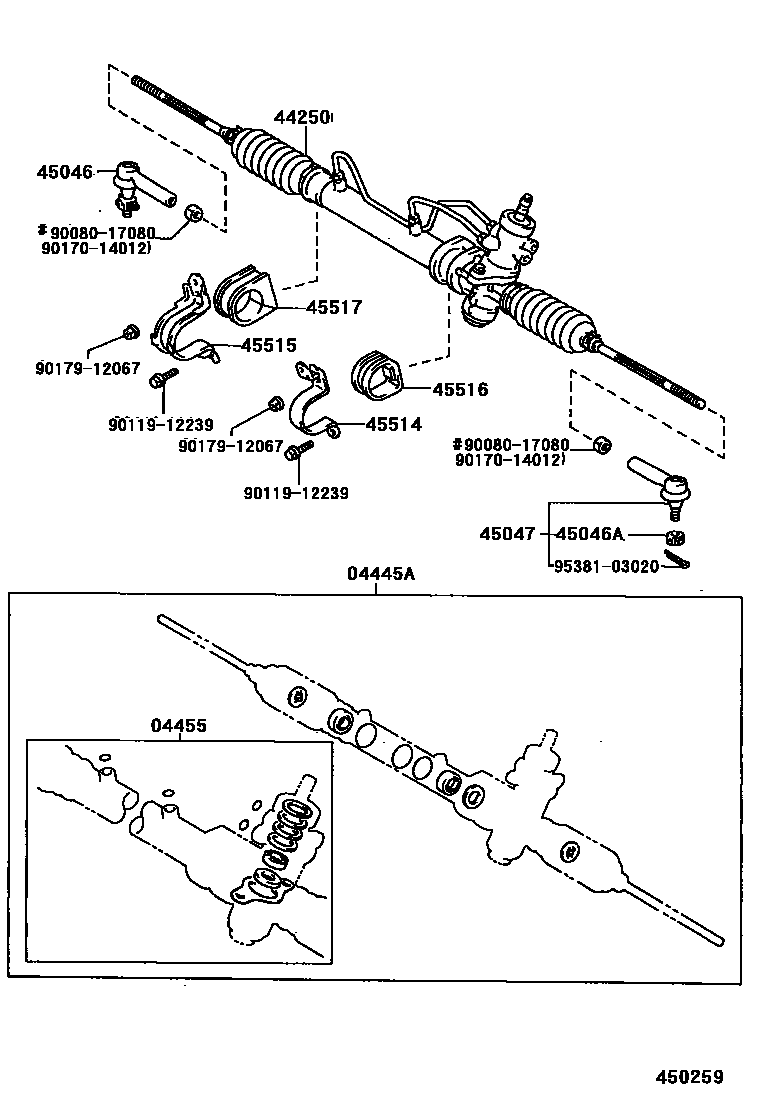

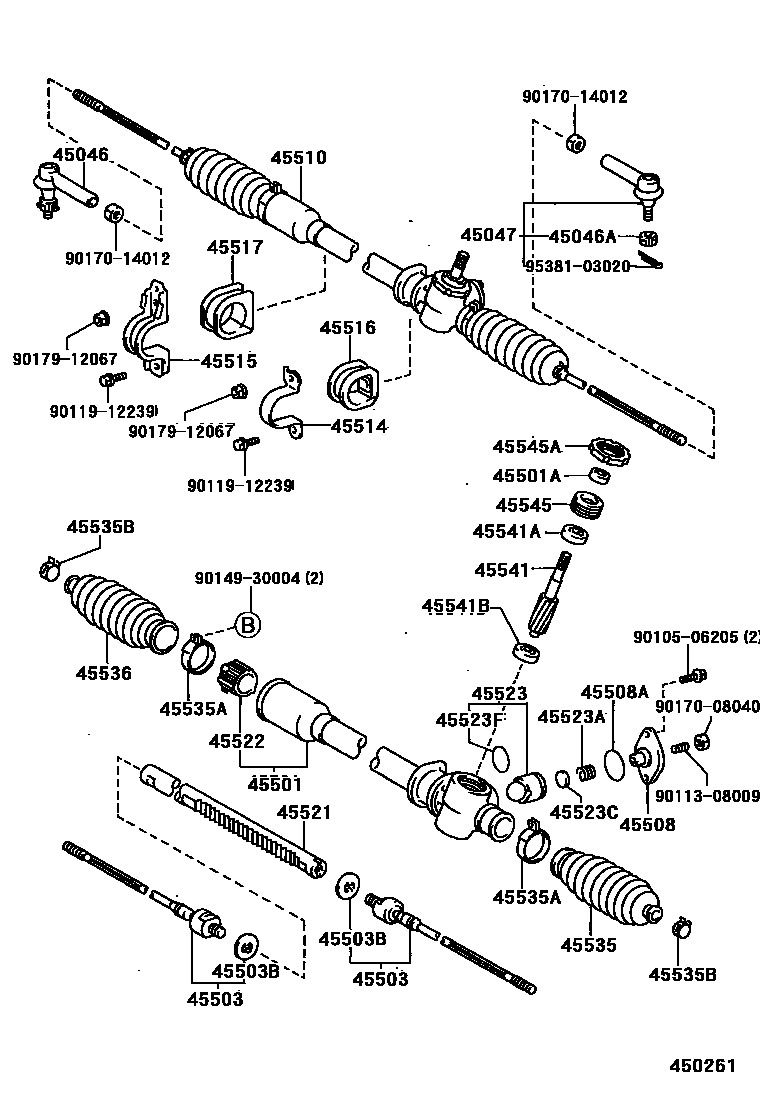

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-02011 · 04445-02020 · 04445-02040 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-02011 |
| 44201 | Power steering control valve sub-assembly | 44201-02010 · 44201-02011 · 44201-02030 |
| 44201A | Lock nut (for power steering control valve) | 90080-17078 |
| 44201C | Ring (for power steering control valve) | 90560-33003 |
| 44201F | Oil seal (for power steering control valve) | 90080-31016 |
| 44201H | Bearing (for upper power steering control valve) | 90080-36047 |
| 44201J | Bearing (for central power steering control valve) | 90080-36046 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12009 |
| 44204 | Power steering rack sub-assembly | 44204-02010 |
| 44204A | Ring (for steering rack piston) | 90080-30027 · 90080-56028 |
| 44205 | Cylinder end stopper sub-assembly | 44205-02010 |
| 44205A | O-ring (for cylinder end stopper) | 90082-67001 |
| 44205B | Oil seal (for cylinder end stop) | 90080-31025 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90080-31024 · 90080-31047 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-25014 |
| 44210 | Power steering control valve assembly | 44210-02010 · 44210-02030 |
| 44210E | Oil seal (for power steering control valve) | 90080-31015 |
| 44211 | control valve housing | 44211-02010 |
| 44218 | valve housing gasket | 44218-02010 · 44218-06010 |
| 44240 | Power steering rack housing assembly | 44240-02010 · 44240-02020 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-02010 |
| 44275 | Cylinder end stop | 44275-02010 |
| 44275C | Coil (for cylinder end stop) | 90080-58122 |
| 44283 | Rack housing cover | 44283-02010 |
| 44418A | Right steering pressure oil pipe | 44418-02010 |
| 44418C | O-ring (for steering pressure oil pipe) | 90080-30023 |
| 44419A | Left steering pressure oil pipe | 44419-02010 |
| 45046 | Right tie rod end sub-assembly | 45046-09030 · 45046-19175 · 45046-29305 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-09030 · 45046-19175 · 45046-29305 |
| 45222 | Steering gear dust cover | 45222-02010 |
| 45501 | Steering rack housing sub-assembly | 45501-12150 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15002 |
| 45503 | Steering rack end sub-assembly | 45503-09050 · 45503-09060 · 45503-09070 · 45503-19205 · 45503-29385 |
| 45503B | Jaw washer (for steering rack end) | 90080-21005 · 90080-21006 · 90080-21008 · 90214-14009 |
| 45508 | Steering rack guide block spring cover sub-assembly | 45508-17010 · 45546-12010 · 45546-17011 |
| 45508A | O-ring (for steering rack guide block spring cover) | 90301-33013 |
| 45510 | Steering gear assembly | 45510-12170 · 45510-12270 |
| 45514 | No. 1 steering rack housing bracket | 45514-02010 · 45514-02020 |
| 45515 | No. 2 steering rack housing bracket | 45515-01041 |
| 45516 | No. 1 steering rack housing seal | 45516-02010 |
| 45517 | No. 2 steering rack housing seal | 45517-01041 |
| 45521 | steering rack | 45521-20050 |
| 45522 | steering rack bushing | 45522-12040 · 45522-12060 |
| 45523 | Rack guide block (for steering gear) | 45504-02010 · 45504-12040 · 45504-17020 |
| 45523A | Spring (for steering gear rack guide block) | 90080-50131 · 90080-50159 · 90501-32032 |
| 45523C | Spacer (for rack guide block) | 45542-12010 · 45542-17010 |
| 45523F | O-ring (for steering gear guide block) | 96711-35026 |
| 45524 | Steering rack guide block spring cover | 45524-02010 |
| 45524A | Nut (for steering rack guide spring cover) | 90080-17089 |
| 45535 | No. 1 steering rack dust cover | 45535-02010 · 45535-12060 |
| 45535A | Clamp (for steering rack dust boot) | 90460-50003 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46174 · 90467-19012 · 90467-19017 |
| 45536 | No. 2 steering rack dust cover | 45535-02010 · 45535-12060 |
| 45541 | steering pinion | 45541-12090 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15015 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13004 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
