Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 2 images and 6 PNC and OE references.

Toyota COROLLA Steering Wheel EPC diagram — MCL870A
Steering Wheel — MCL870A (199209 – 999999)

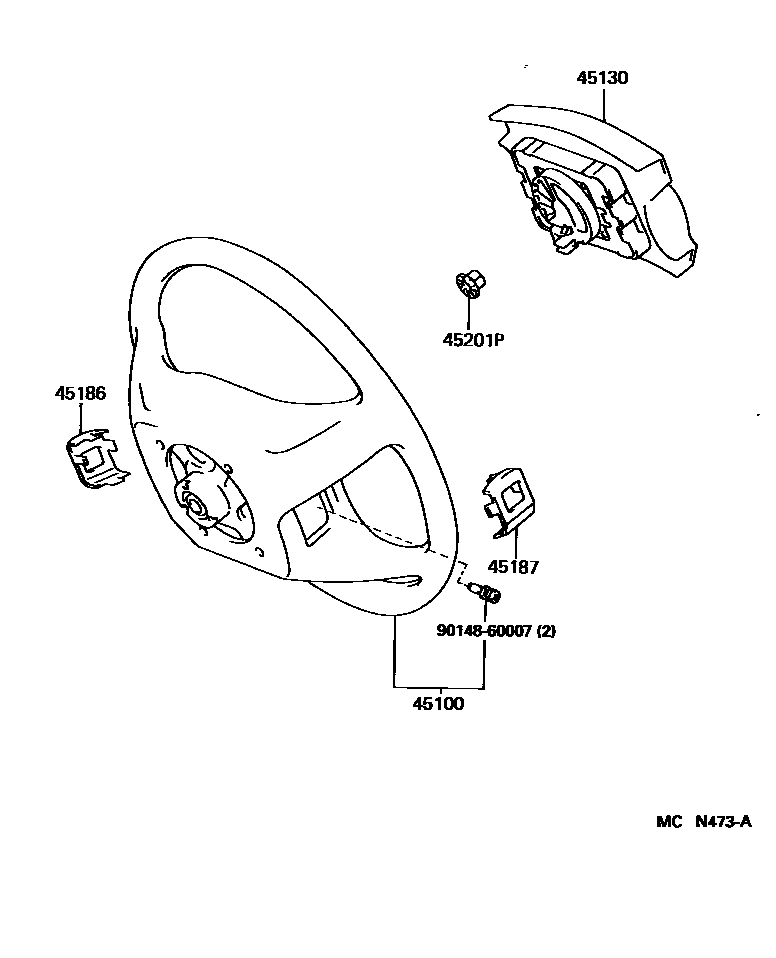

Toyota COROLLA Steering Wheel EPC diagram — MCN473A
Steering Wheel — MCN473A (199209 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-12140 · 45105-12210
45130ACompression spring (for horn button)90501-09112
45136horn button contact piece45136-12230
45146Horn button contact spring45146-20140
45158ASpeaker button connector sleeve45158-12050
45201PSteering wheel fixing nut90179-12071 · 90179-12086
