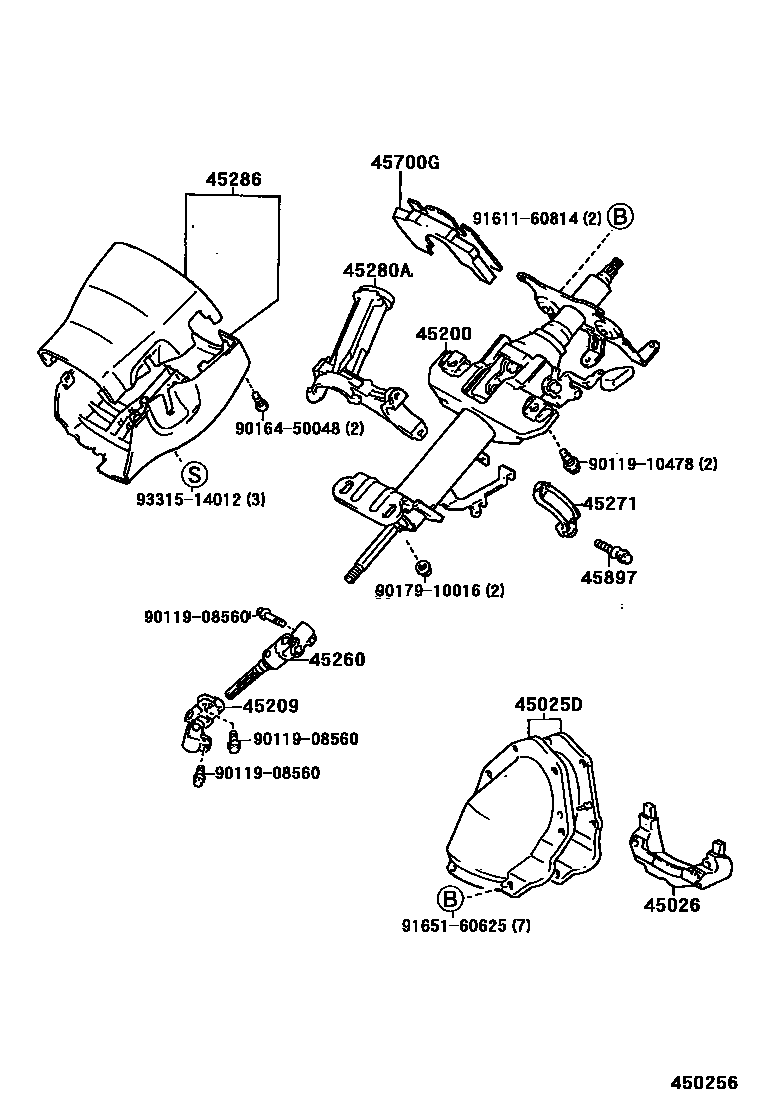

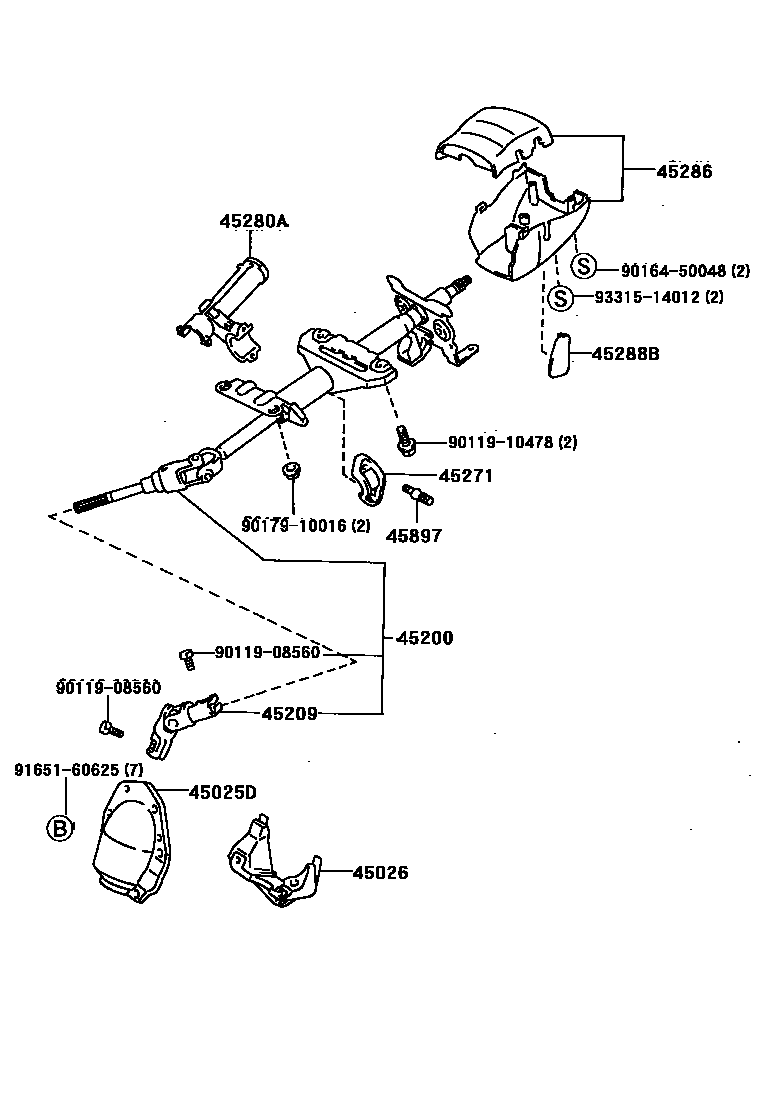

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12190 · 45025-12200 · 45025-12201 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-02010 · 45026-12030 · 45026-12040 |
| 45200 | Steering column assembly | 45200-02011 · 45200-02021 · 45200-02031 · 45200-02041 · 45200-02050 · 45200-02060 · 45200-02070 |
| 45209 | Steering slip fork sub-assembly | 45209-12060 · 45209-12080 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02010 · 45260-02020 · 45260-12270 · 45260-12280 |
| 45271 | Clamp on steering column | 45271-33010 |
| 45280A | Steering column upper bracket assembly | 45280-12260 · 45280-12300 |
| 45700G | Steering damper assembly | 45700-12020 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
