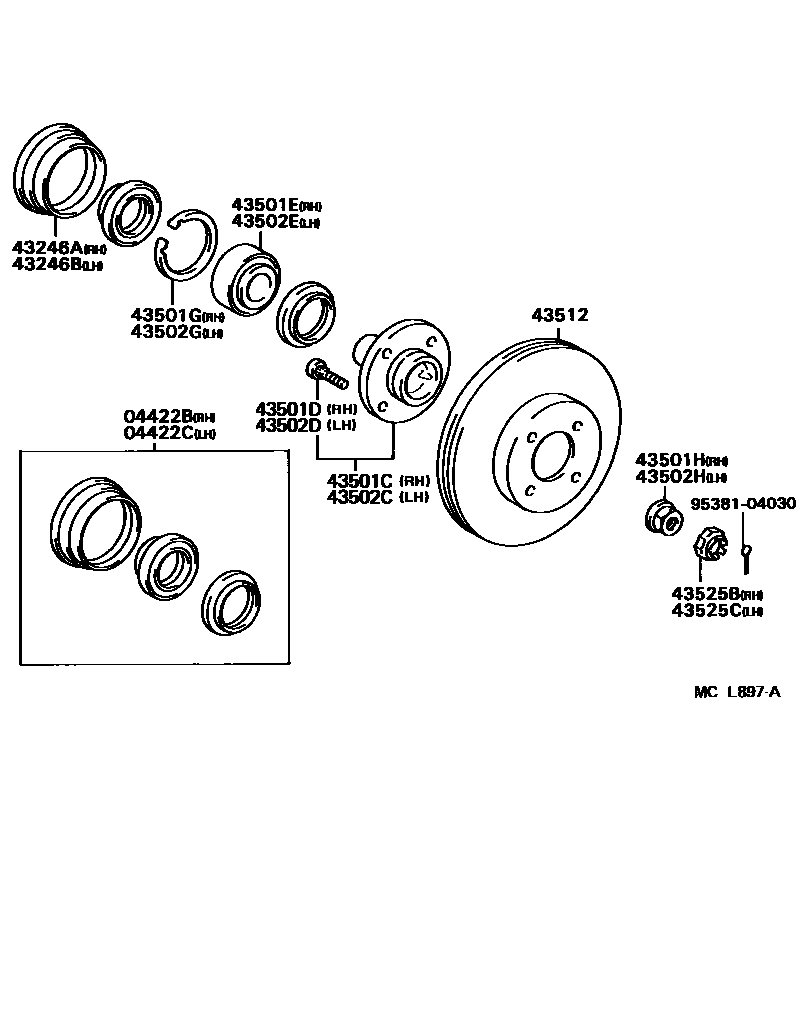

Toyota COROLLA Front Axle Hub — Figure 4303
Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04422B | Right front axle oil seal assembly | 04422-12050 · 04422-12080 · 04422-12091 · 04422-12100 · 04422-12150 · 04422-12160 |
| 04422C | Left front axle oil seal assembly | 04422-12050 · 04422-12080 · 04422-12091 · 04422-12100 · 04422-12150 · 04422-12160 |
| 43246A | No. 1 right front wheel bearing dust cover | 43246-12020 · 43246-12040 |
| 43246B | No. 1 left front wheel bearing dust cover | 43246-12020 · 43246-12040 |
| 43501C | Right front axle hub sub-assembly | 43502-12090 |
| 43501D | Hub bolt (for right front axle) | 90942-02049 |
| 43501E | Bearing (for right front axle hub) | 90080-36040 · 90080-36041 · 90080-36063 |
| 43501G | Hole snap ring (for right front axle hub) | 90521-77001 |
| 43501H | Nut (for front axle right half shaft) | 90179-22020 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-12090 |
| 43502D | Hub bolt (for left front axle) | 90942-02049 |
| 43502E | Bearing (for left front axle hub) | 90080-36040 · 90080-36041 · 90080-36063 |
| 43502G | Hole snap ring (for left front axle hub) | 90521-77001 |
| 43502H | Nut (for front axle left half shaft) | 90179-22020 |
| 43512 | front brake disc | 43512-12550 |
| 43525B | Right front wheel adjustment lock cover | 43525-20030 |
| 43525C | Left front wheel adjustment lock cover | 43525-20030 |
