Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

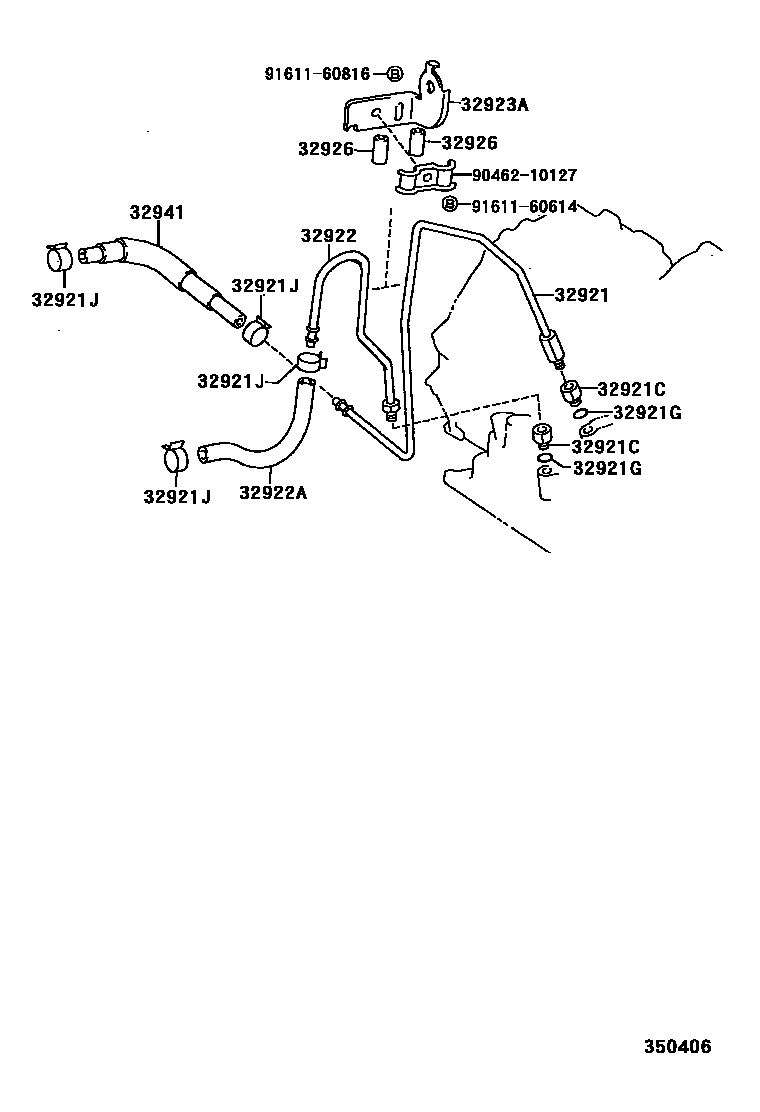

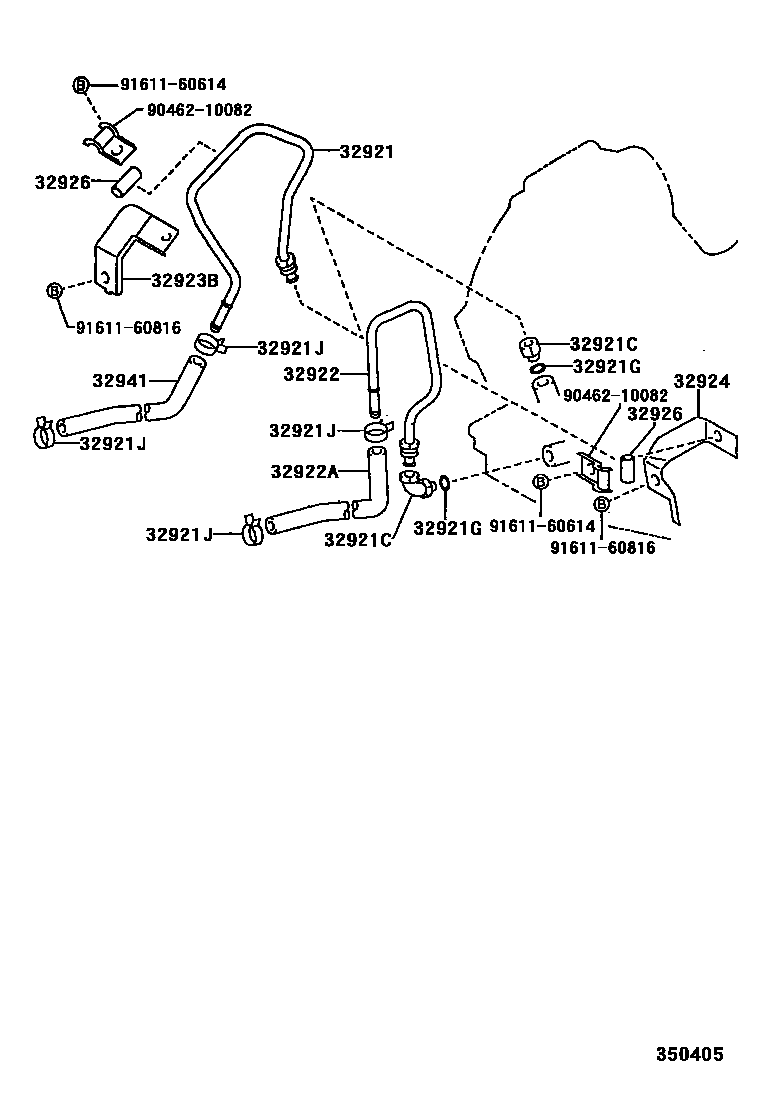

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-02060 · 32921-02070 · 32921-02080 · 32921-02090 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 · 90404-14019 · 90407-14003 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-13039 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-01031 · 32922-02060 · 32922-02070 · 32922-02090 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32942-02020 · 32942-22101 · 90080-44011 · 90080-44101 · 90445-15050 · 90445-15073 |
| 32923A | Automatic transmission oil cooler pipe clamp | 32923-02050 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-01030 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-01010 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-02010 · 32926-10010 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-02020 · 32941-02050 · 32941-12260 · 32941-12270 |
