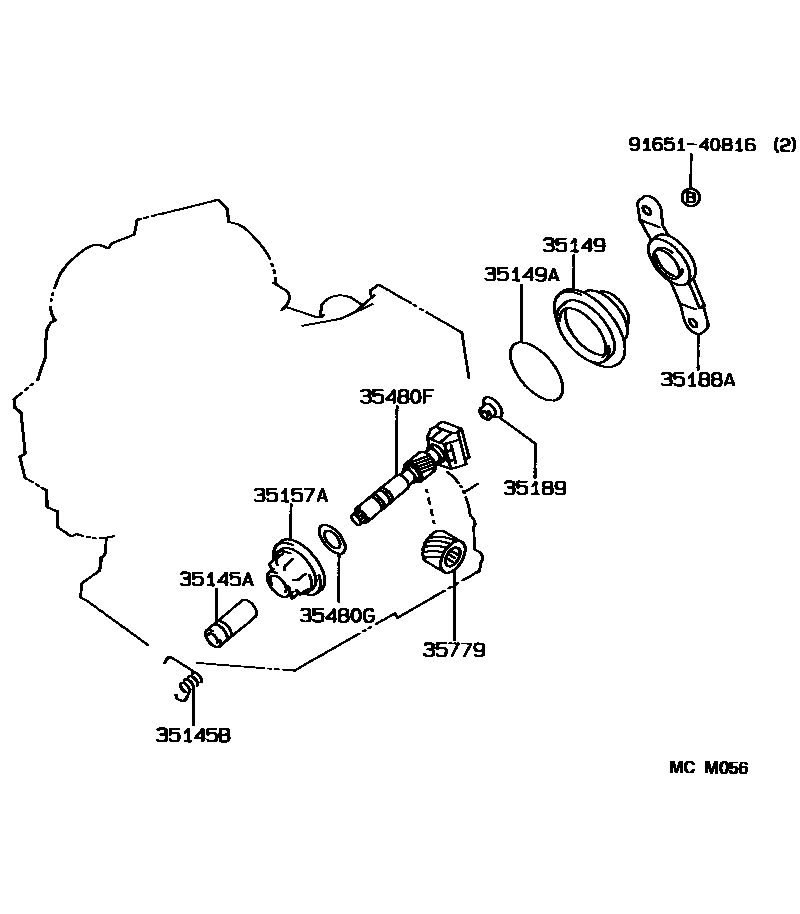

Toyota COROLLA 后油泵和调速器(ATM) — Figure 3511
Toyota COROLLA EPC diagram 3511, 后油泵和调速器(ATM), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35145A | governor pressure coupling | 35145-32011 |
| 35145B | Torsion spring (for governor pressure coupling) | 90508-18034 |
| 35149 | governor cover | 35149-12010 |
| 35149A | O-ring (for governor cover) | 90301-73001 |
| 35157A | governor body adapter | 35157-12010 |
| 35188A | Governor cover bracket | 35188-12010 |
| 35189 | No. 1 governor thrust washer | 35189-32011 |
| 35480F | Governor body assembly | 35480-12050 · 35480-16060 |
| 35480G | Flat Washer (for governor body) | 90201-25003 |
| 35779 | governor driving gear | 35779-32010 |
