Toyota COROLLA Shift Lever & Retainer — Figure 3312

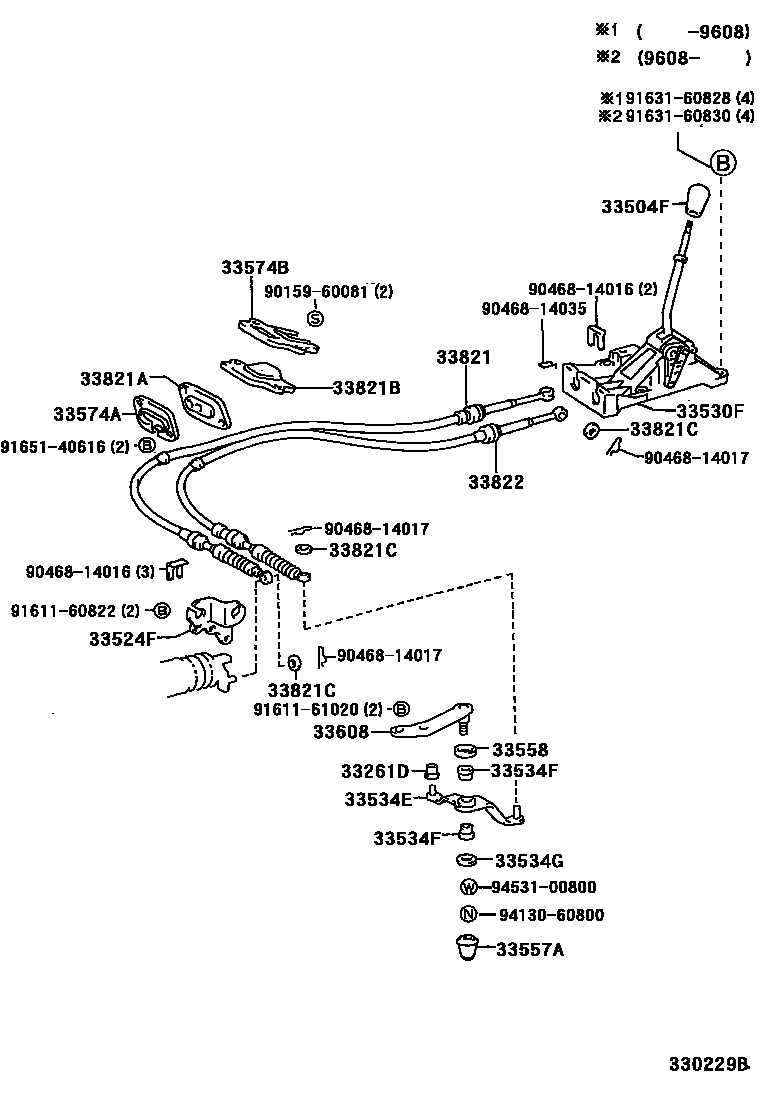

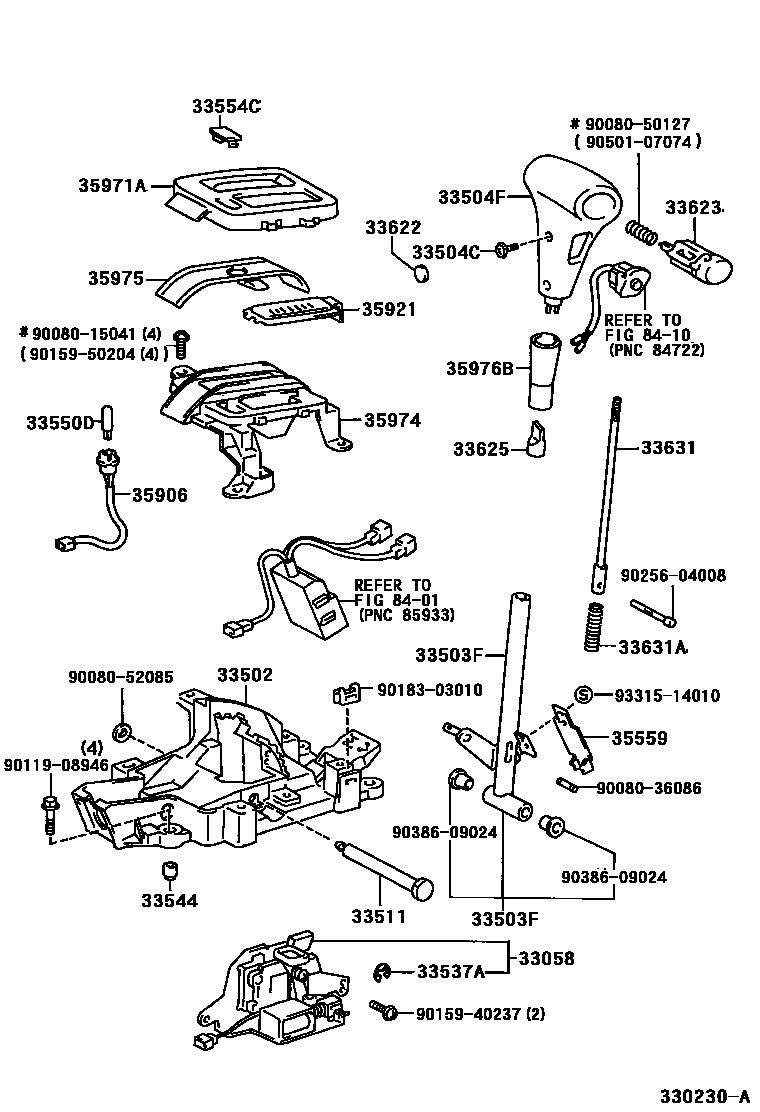

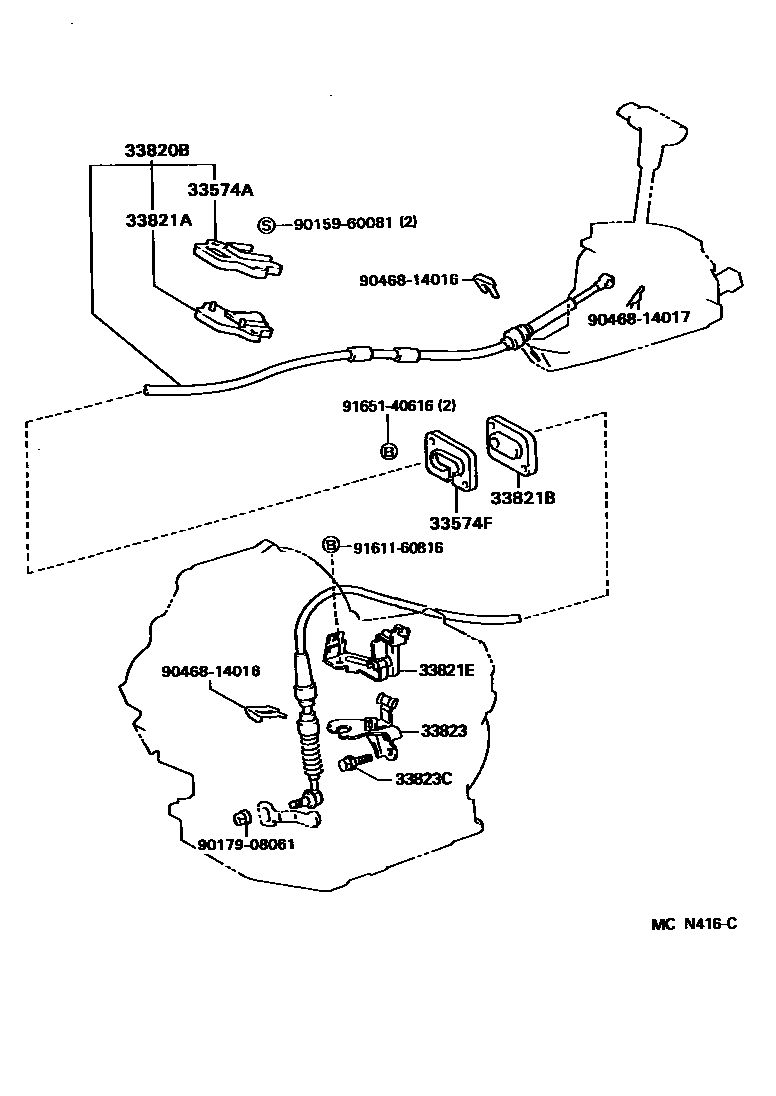

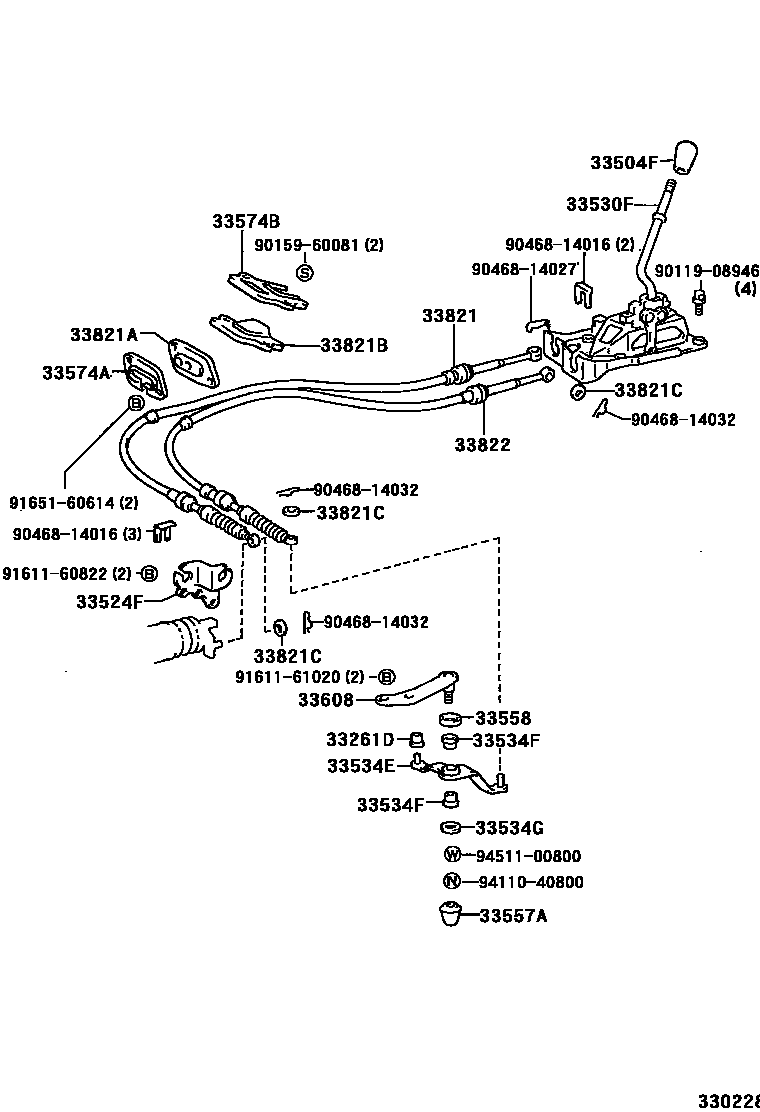

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-02010 |
| 33261D | Bushing (for shift lever) | 33557-33010 · 90389-10009 |
| 33502 | Shift lever base plate sub-assembly | 33521-02010 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12450 |
| 33504C | Screw (for securing shift lever knob) | 90159-40244 |
| 33511 | Control shaft (for floor shifting) | 33511-12100 |
| 33524F | Lever housing bracket (for floor shift) | 33524-12011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12620 · 33530-12680 · 33530-12681 |
| 33534E | No. 2 gear selection right-angle lever | 33534-16050 · 33534-16051 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33537A | E-ring (for control lever base plate) | 90523-04005 |
| 33544 | Shift lever insert No. 1 | 33544-06010 · 33544-33010 |
| 33550D | position indicator light bulb | 90080-81039 · 99132-12034 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-01030 · 33574-01060 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-01050 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-16020 · 33608-16021 |
| 33625 | Shift lever handle sleeve | 33625-02030 · 33625-12020 |
| 33631 | Locking lever | 33631-12120 |
| 33631A | Compression spring (for locking lever) | 90080-50126 |
| 33820B | Transmission control cable assembly | 33820-02040 · 33820-02050 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-02030 · 33821-02080 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90080-48011 · 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90080-48013 · 90080-48015 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90080-46143 · 90949-01875 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-02010 · 33822-02020 |
| 33823 | No. 1 transmission control cable bracket | 33823-02020 · 33823-02030 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-60816 · 91611-61022 |
| 35559 | Manual locking spring | 35559-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12130 |
| 35921 | control position indicator board | 35921-12380 |
| 35974 | Position indicator light lower shell | 35974-02011 |
