Toyota COROLLA 分电器 — Figure 1902

Toyota COROLLA EPC diagram 1902, 分电器, with 1 images and 13 PNC and OE references.

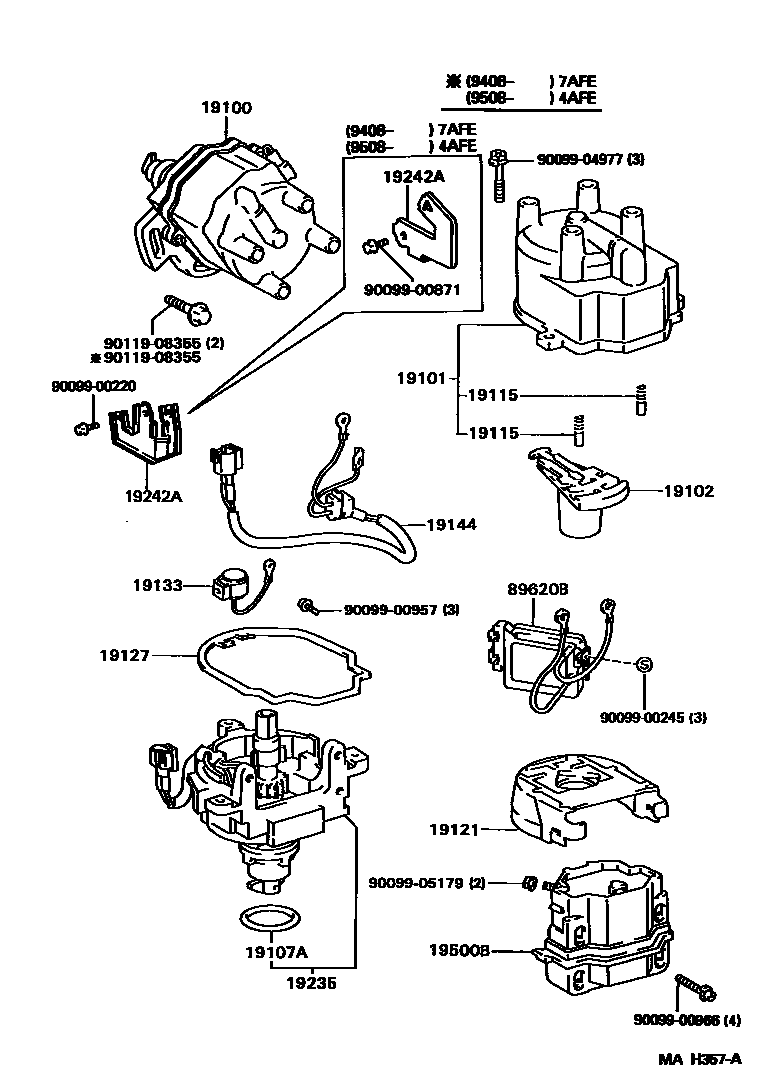

Toyota COROLLA 分电器 EPC diagram — MAH357A
分电器 — MAH357A (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19020-16250 · 19020-16280 · 19050-16030
19101Distributor cover sub-assembly19101-11060
19102Distributor flame head sub-assembly19102-11031 · 19102-16010
19107ADistributor housing O-ring90099-14091 · 90099-14127
19115Distributor cover center piece19115-63010
19121dust cover19121-11080
19127Dust seal19127-15120
19133Distributor capacitor19133-16240
19144Distributor breaker lead19144-16020
19235Distributor housing19235-16190 · 19235-16270
19242ACable No. 219242-15180 · 19242-16020
19500BIgnition coil assembly90919-02163 · 90919-02164
89620BIgnition assembly89620-12440
